SKU: JT-500D
5040.00 (Inc VAT)
The JASIC TIG 500 Pulse AC/DC (Water cooled) is a technologically advanced three-phase inverter power source is suitable for medium to large production work.

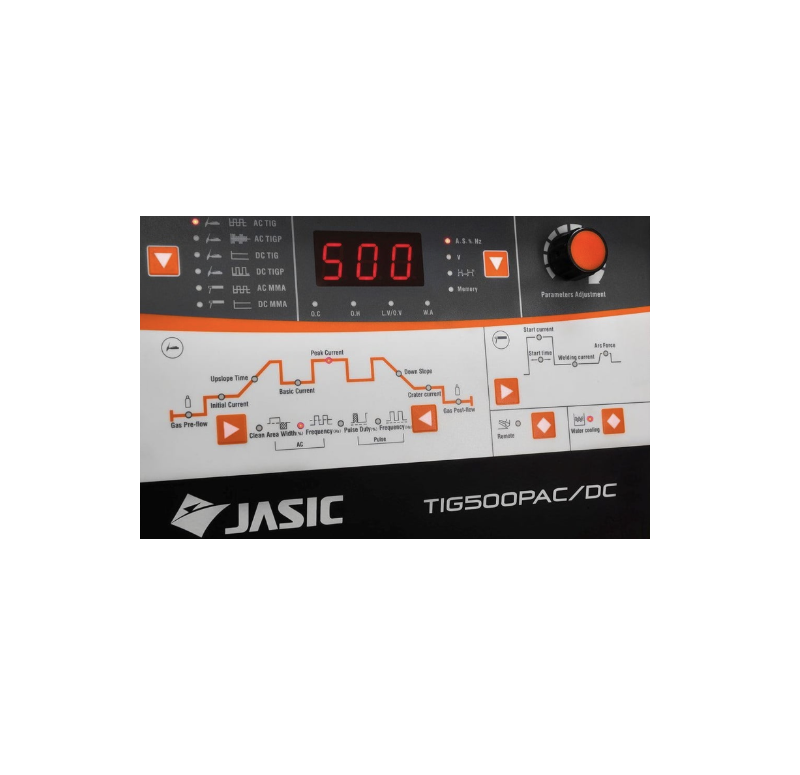

The innovative and user-friendly digital panel allows full control of the welding parameters.
The excellent technical characteristics of the 500 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
INVERTER FEATURES
- TIG Pulse AC/DC with digital control
- Program memory storage
- Easy to use, intuitive control panel
- Pre-post flow time, up/down slope
- Pulse adjustment
- Pulse frequency, pulse duty, arc force, clean width
- Remote control interface
- AC function for aluminium and aluminium alloys
- DC TIG function for carbon steel, stainless copper and non-ferrous metals
- Smooth arc and stable welding performance
- Water cooled
Inverter Package Includes

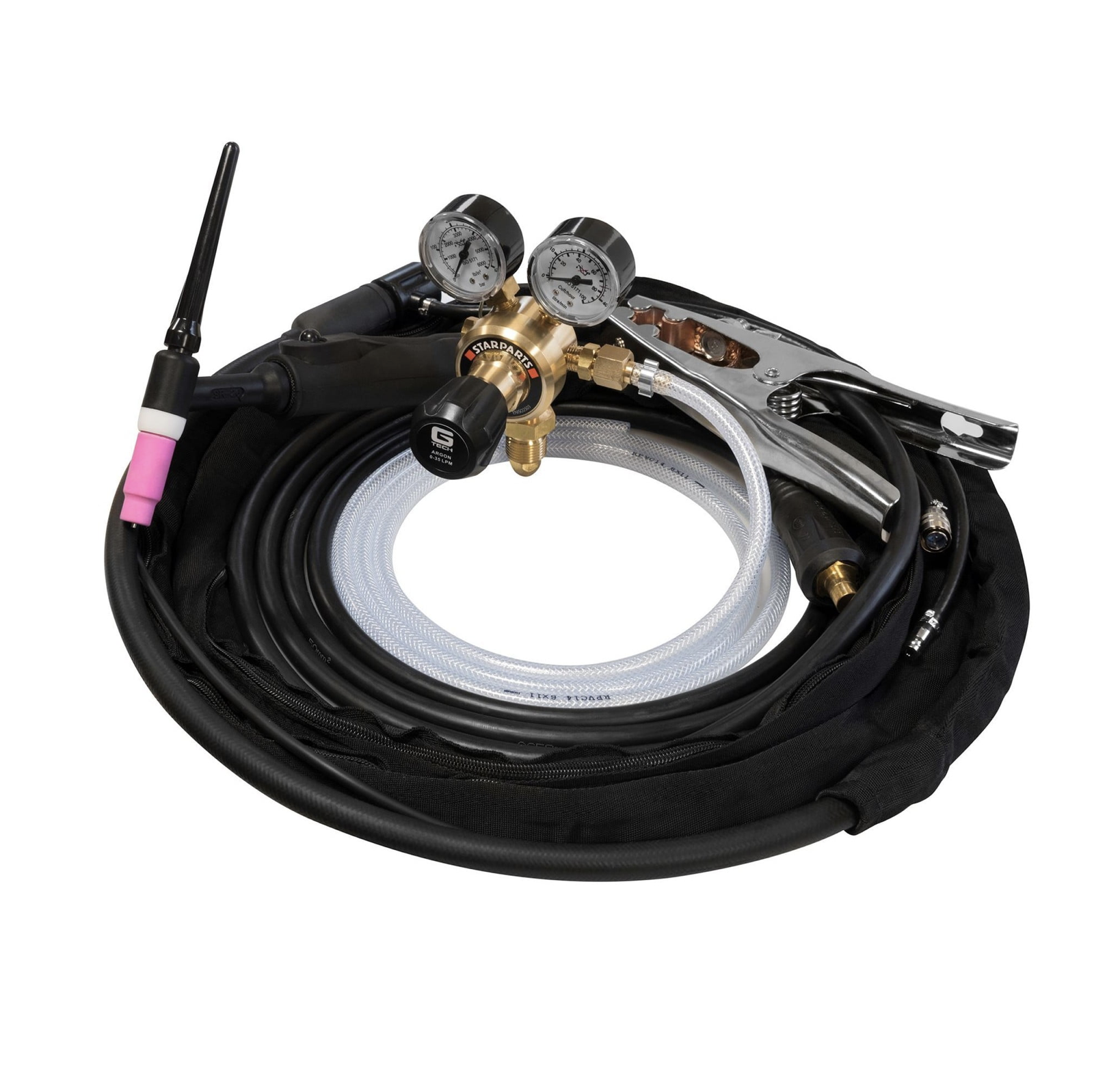

Inverter power source, Water Cooler, Trolley, TIG torch & adaptor, Gas regulator, Earth return lead, Operating instructions.
Weight
128
- Input Voltage AC 400V – 50/60 Hz
- Ieff (A) 23
- Input Power (kVA) 21.5
- Current Range (A) TIG 10 – 500 MMA 10 – 400
- Duty Cycle @ 40°C 500A @ 60%
- No-Load Voltage (V) 74
- Pulse Frequency (Hz) AC 70 DC 200
- Protection/Insulation Class IP21S/F
- Dimensions (LxWxH mm) 1080 x 510 x 1180
- Weight (Kg) 128
