JASIC TIG 400 PULSE DC INVERTER WATER COOLED WELDER

SKU: JT-4000P

£2,815.00

3378.00 (Inc VAT)

  • Product Description
  • Technical Specification
  • Manufacturer Brochures

The Jasic TIG 400 Pulse inverter is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance. ​

This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters. ​

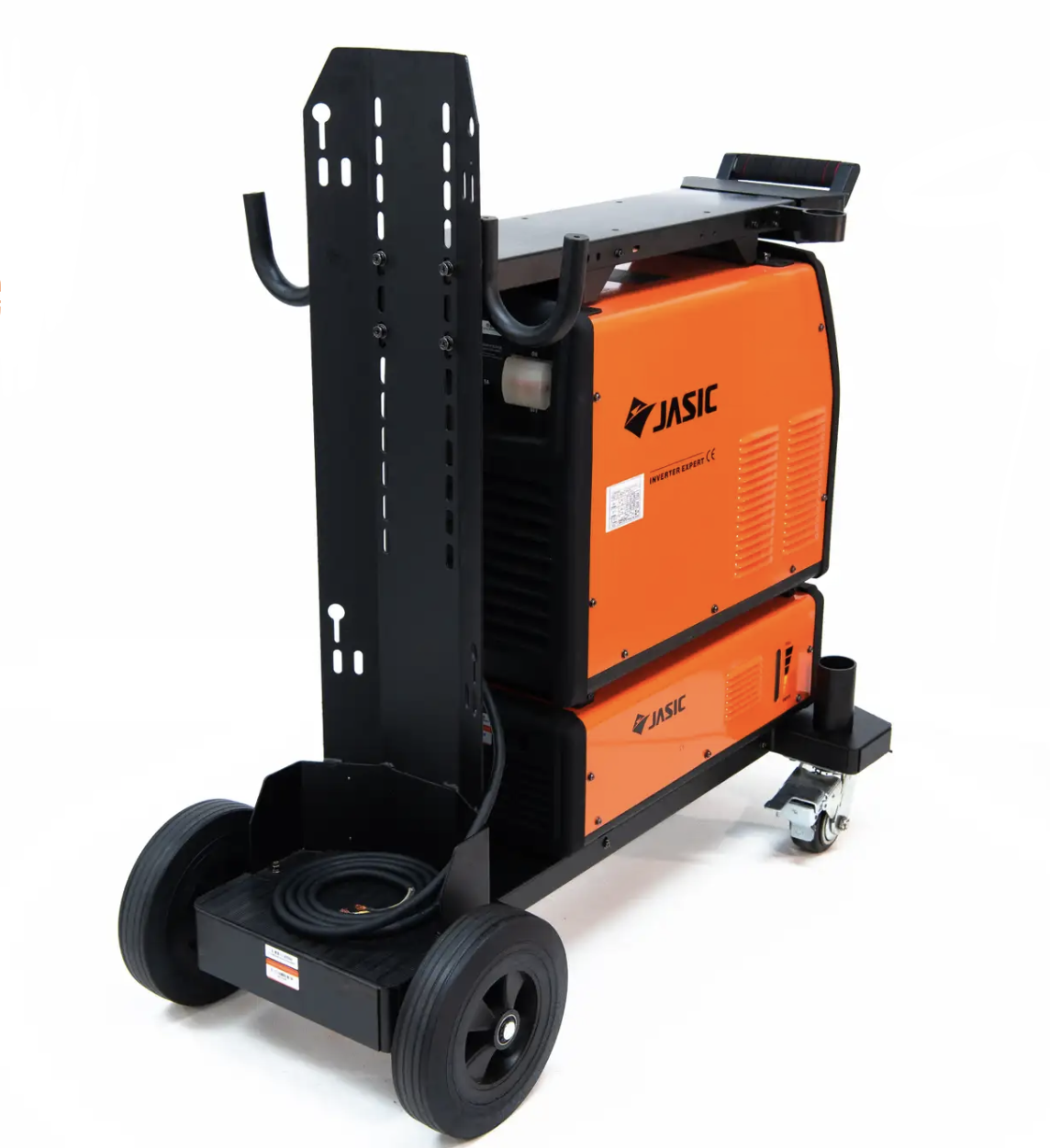

This modular design TIG welding system includes the trolley and water cooler as standard.



KEY FEATURES

- Industrial Grade IGBT Inverter Technology

- DC Pulse TIG/MMA with VRD function

- MCU chip for high accuracy and consistency

- HF or Lift arc ignition, 2T/4T, spot-time

- Up/down slope, pre/post flow, crater/initial/weld current

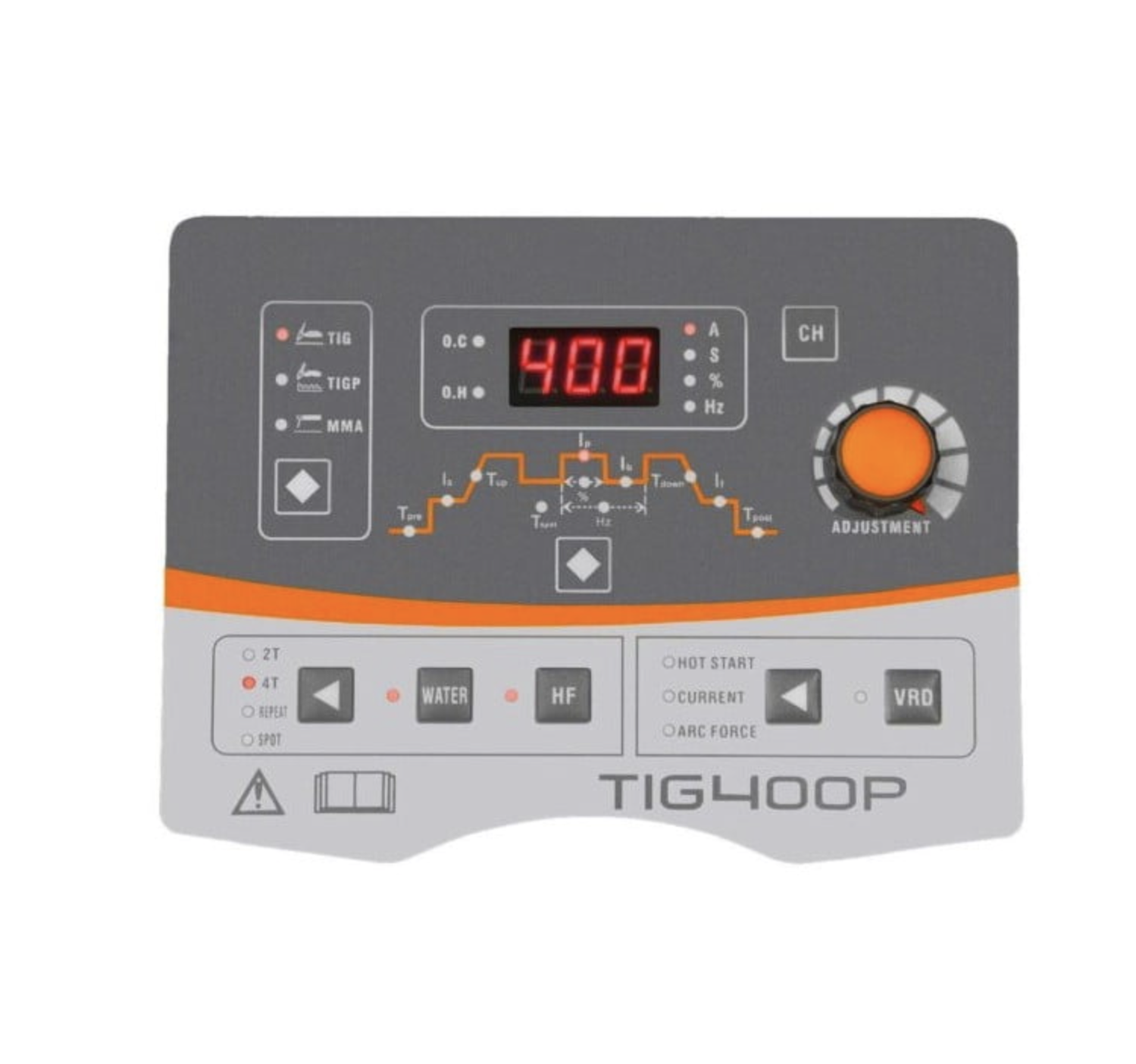

- Digital panel with interface for easy software upgrades

- Gas test function in DC TIG mode

- Modular design with trolley and water cooler included

- Automatic 8 channel storage of welding parameters

- On demand fan and water cooling

- AVR Generator friendly

- Optional Foot Pedal Control





Inverter Package Includes

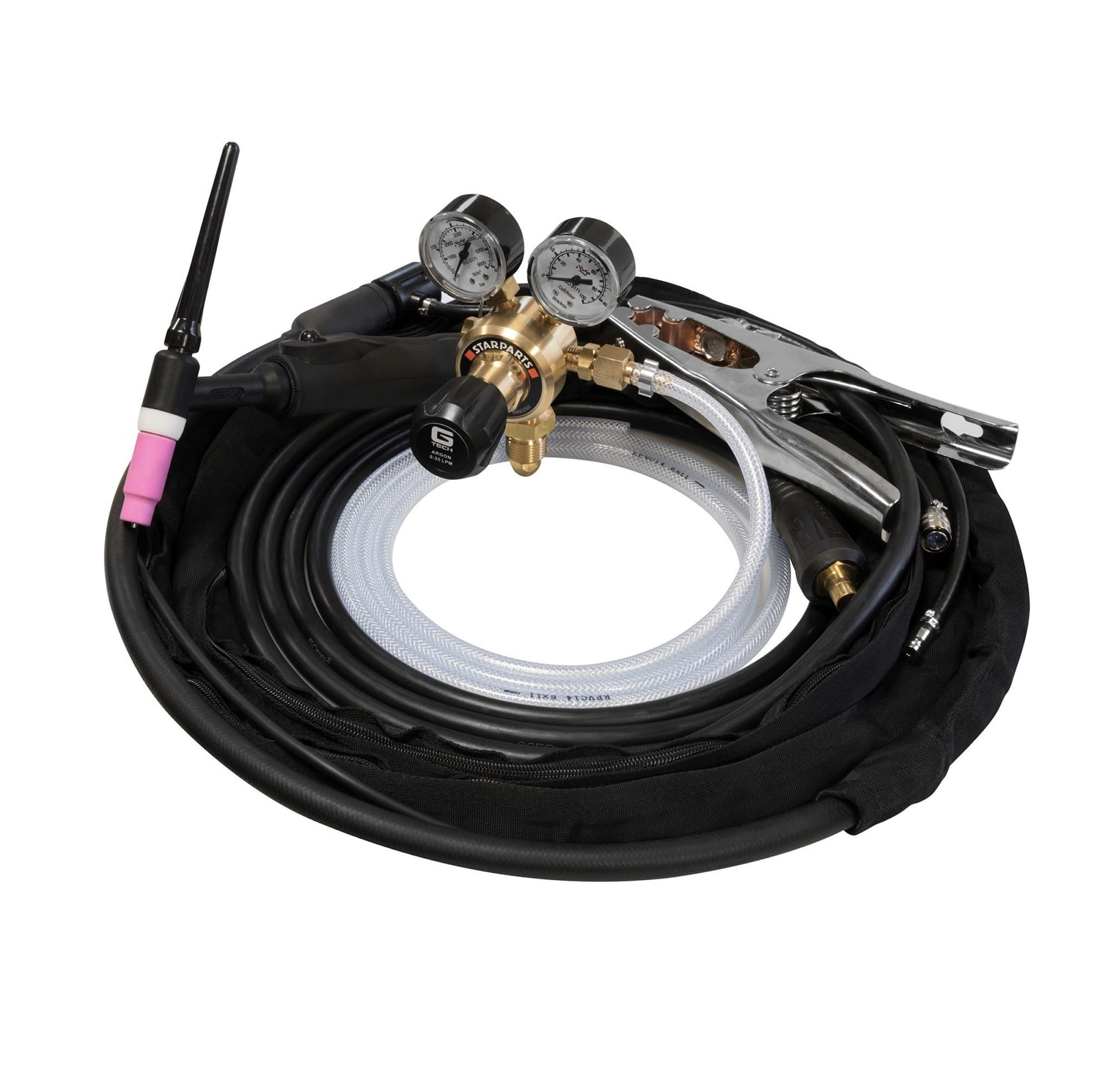

TIG 400P 400V DC Inverter Water Cooled Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp

- Input Voltage AC 400V – 50/60 Hz

- Ieff (A) 14

- Input Power (kVA) 18

- Current Range (A) TIG DC 5 – 400 & MMA DC 30 – 400

- Duty Cycle @ 40°C 400A @ 50%

- No-Load Voltage (V) 68

- Efficiency (%) 85

- Power Factor 0.96

- Protection/Insulation Class IP21S/F

- Dimensions (LxWxH mm) 760 x 360 x 585

- Weight (Kg) 90

Weight

90
