JASIC TIG 315 AC/DC MULTI WAVE INVERTER WELDER

SKU: JT-315MWD

£1,821.00

2185.20 (Inc VAT)

  • Product Description
  • Technical Specification
  • Manufacturer Brochures

Premium TIG 315 Pulse AC/DC welding inverter is a technologically advanced three-phase multi wave power source suitable for medium to high production cycles. ​

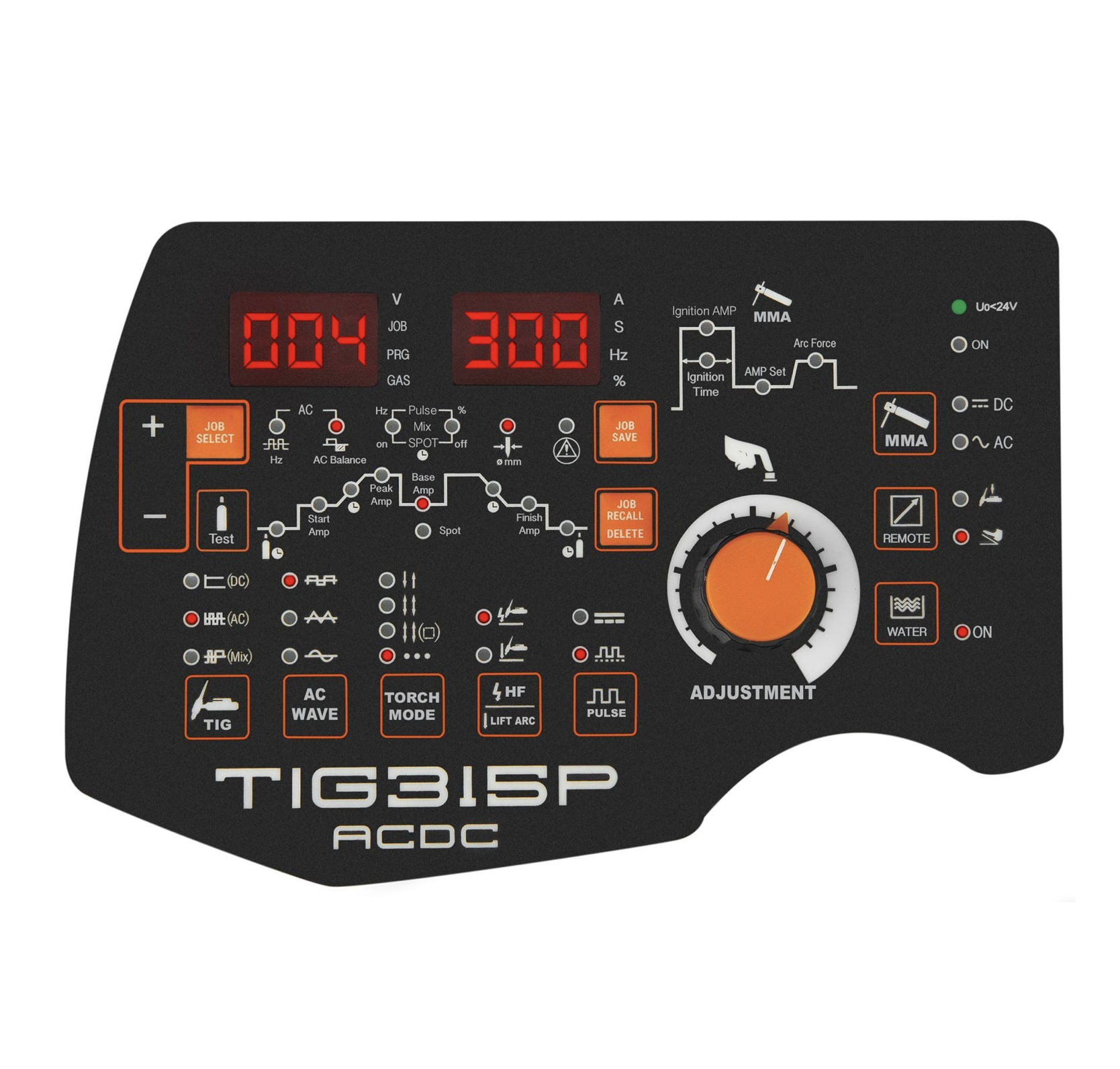

The innovative and user-friendly digital panel allows full control of the welding parameters. ​

The excellent technical characteristics of the TIG 315 AC/DC make it an ideal choice for professionally skilled TIG welders that require precise control and reliable performance.



INVERTER FEATURES:

- Pulse TIG AC/DC with Digital Control

- Program memory storage (50 sets of weld data)

- Microprocessor control of a wide range of functions

- Advanced multi wave options in AC mode

- Square, Triangular, Sine, Mixed Waveforms

- Variable AC frequency for precise penetration control

- Remote control interface

- VRD (Voltage Reduction Device) safety function

- MMA functionality with advanced features

- Intelligent fan for cooler operation

- Excellent welding characteristics

- Handle for ease of portability





Inverter Package Includes

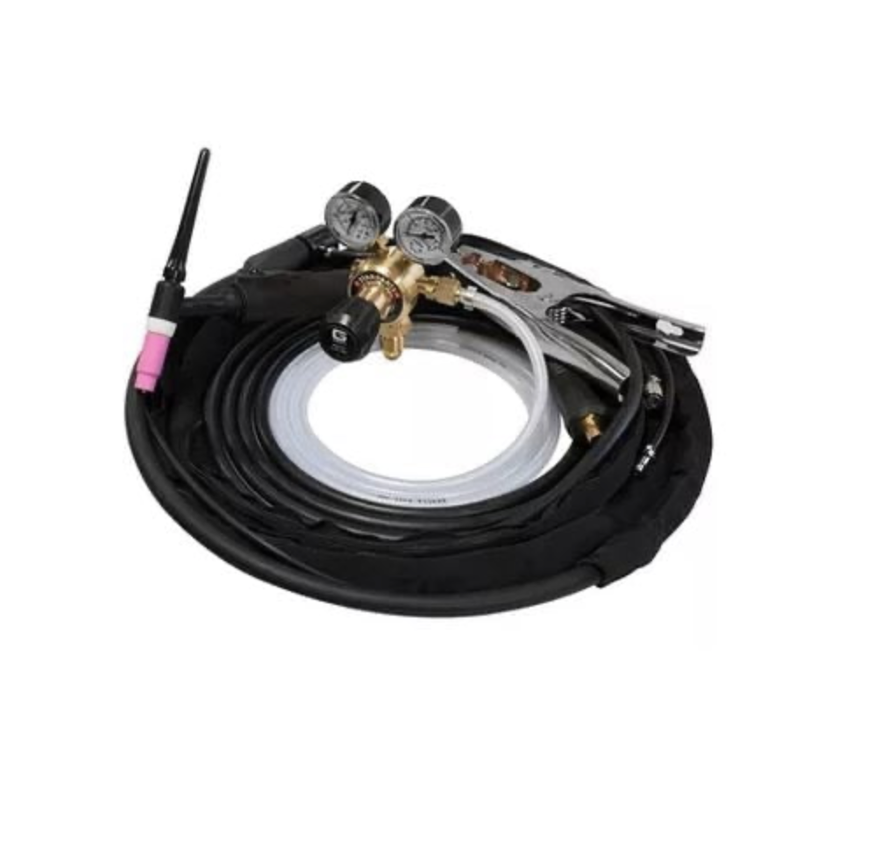

AC/DC TIG welding inverter power source, TIG welding torch & adaptor, Gas regulator, Earth return lead, Operating instructions.

- Input Voltage AC 400V +/-15% – 50/60 Hz

- Ieff (A) TIG 10 MMA 12.4

- Input Power (kVA) 14

- Current Range (A) TIG 10 – 315 & MMA 10 – 270

- Duty Cycle @ 40°C TIG 315A @ 30% & MMA 270A @ 30%

- No-Load Voltage (V) 73 (12.4V – VRD)

- Efficiency (%) 85

- Protection/Insulation Class IP21S/F

- Dimensions (LxWxH mm) 566 x 224 x 405

- Weight (Kg) 25.5

Weight

25.5
