JASIC TIG 300P DC PULSE DIGITAL WELDING INVERTER

SKU: JT-300P

£1,316.00

1579.20 (Inc VAT)

  • Product Description
  • Technical Specification
  • Manufacturer Brochures

The Jasic TIG 300 DC Pulse inverter is equipped with industrial grade components and microprocessor control for high accuracy and performance.

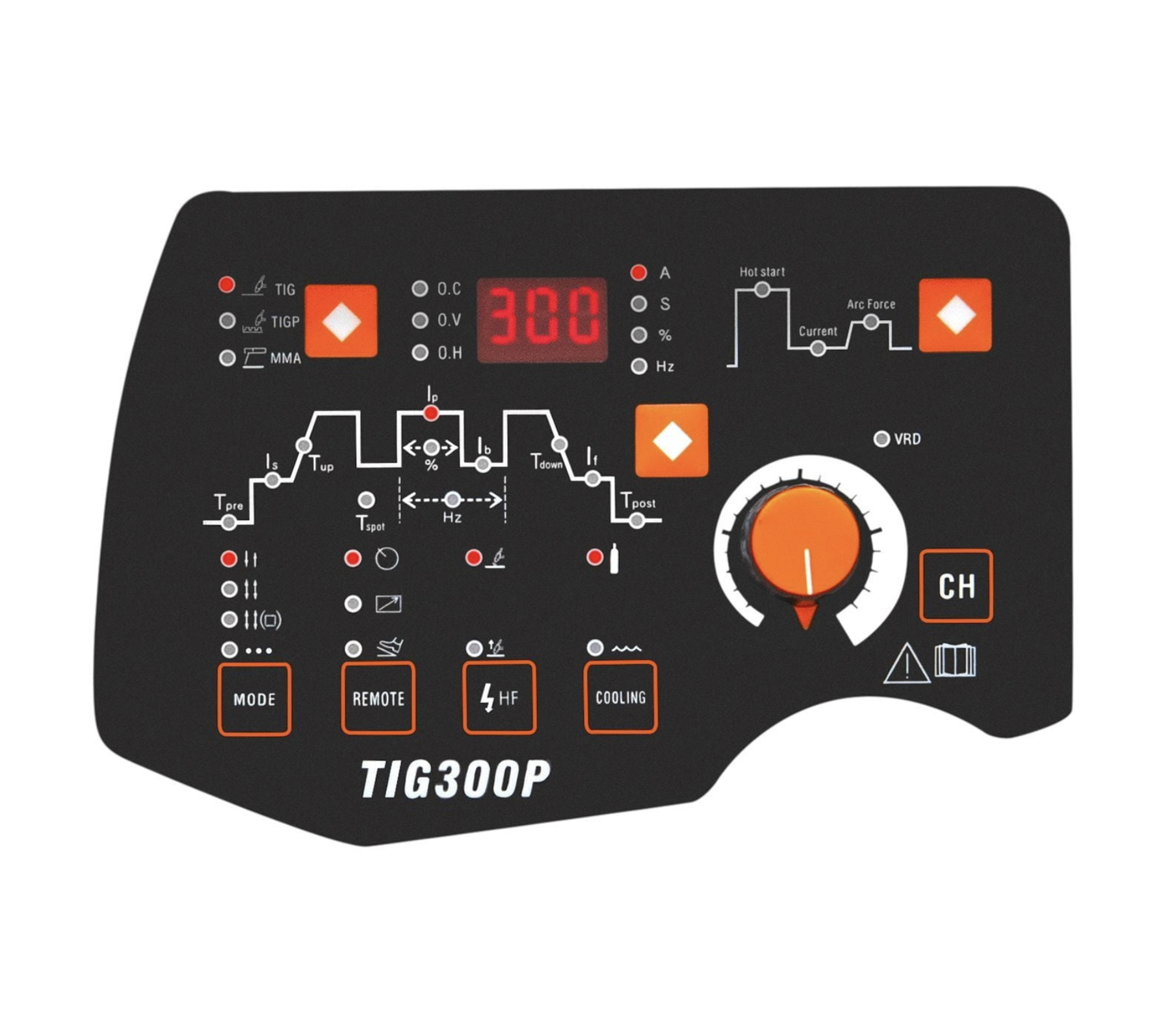

This technologically advanced inverter with a digital control panel allows for feature rich options and provides 8 channel automatic storage of the welding parameters.

The unit is designed to IP23S class for use in the harshest environments.

This modular design TIG welding system can be assembled with an optional trolley and water cooler where required.



KEY FEATURES:

- TIG DC Pulse with digital control

- Program memory storage

- Microprocessor control (Wide Range of functions

- HF and Lift TIG

- Remote control interface

- VRD function

- Digital display

- Intelligent fan and cooler control

- Excellent welding characteristics

- Protection system to enhance equipment life

- Suitable for welding in environments with increased risk of electric shock

- Water cooler option

- Generator friendly (Requires regulated output)



Inverter Package Includes

Inverter power source, TIG torch & adaptor, Gas regulator, Earth return lead, Operating instructions.

- Input Voltage AC 400V +/-15% – 50/60 Hz

- Ieff (A) 9.9

- Input Power (kVA) 11

- Current Range (A) TIG 5 – 300 & MMA 20 – 210

- Duty Cycle @ 40°C TIG 300A @ 20% & MMA 210A @ 50%

- No-Load Voltage (V) 60 (11.8V – VRD)

- Efficiency (%) 85

- Protection/Insulation Class IP23S/F

- Dimensions (LxWxH mm) 566 x 224 x 405

- Weight (Kg) 19.4

Weight

19.4
