MILLER TIGMATIC 300IP TIG/STICK WELDING MACHINE (WATER COOLED PACKAGE)

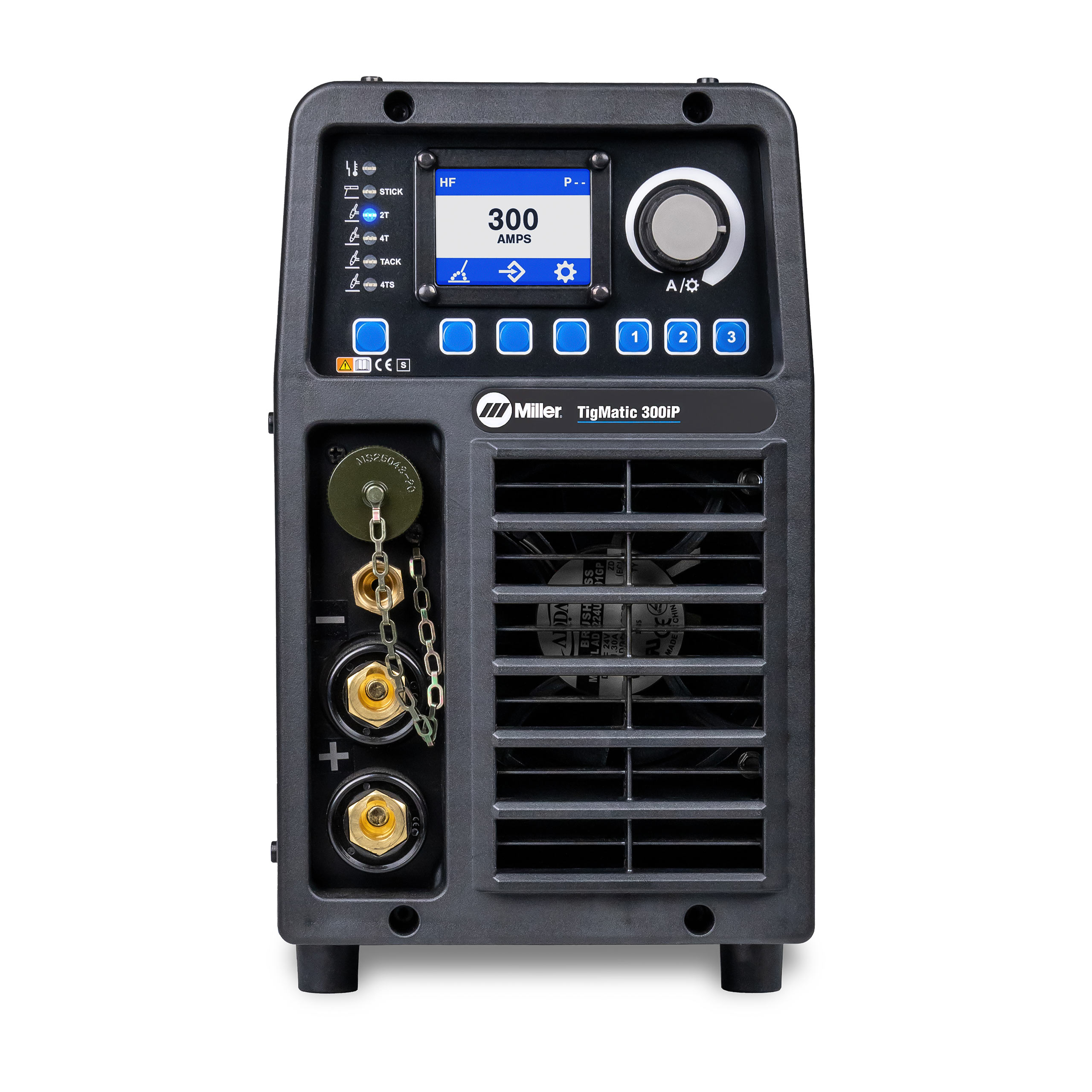

TigMatic® 300iP TIG/Stick Welding Machine

Experience reliable and precise arc performance paired with a user friendly interface that puts advanced capabilities at your fingertips. With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds. The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse and MMA, including cellulosic electrodes, in even the toughest environments.

Features:

Graphical user interface

A guided four step approach to achieve optimal weld parameters.

- The extremely intuitive LCD panel provides an overview of the settings and makes adjustment quick and efficient.

Optimised start sequence

For each Tungsten diameter.

- The start values are automatically set, ensuring smooth and accurate TIG starts every time.

Program memories

Store and recall 3 weld programs with direct access from the front panel or through trigger select.

- Deliver more productivity by eliminating the need to manually set the parameters

- Deliver consistent quality by welders of all skills

Trigger select

Allows the operator to recall stored program by tapping the torch trigger.

- Eliminating the need to walk back to the machine to change parameters.

Advanced Remote-control options

The weld current can be adjusted between or during welds.

- Compatible with Miller hand and foot controls (foot pedal).

- Select a wireless foot pedal for unrestricted flexibility

- Select a Miller EuroTorch with built in remote option in the handle.

Tack welding mode

Provide precise and repeatable tacks, ideal for when preparing the weld object.

- Store and recall directly from the front panel to save time between weld cycles

- Maintain control of the heat input

4TS trigger mode

For manual adjustment of the heat input from the torch trigger.

- Toggle between two different current levels without extinguishing the arc

Optimized MMA performance

For Basic, Rutile and cellulosic electrodes.

- Select electrode type in the set-up menu to get suitable arc force and hot start parameters, ensuring good starts and good arc control

TIG Settings

- Adjustable Pre/Post gas

- Adjustable slope up/down

- Adjustable start/end current

- Dual weld current levels

- Pulse mode

- Tack mode

- Min/Max values for remotes

MMA/Stick settings

- Electrode selection

- Hot Start ™

- Arc force (DIG)

- Cellulosic mode

- Adjustable OCV (VRD)

- Min/Max values for remotes
