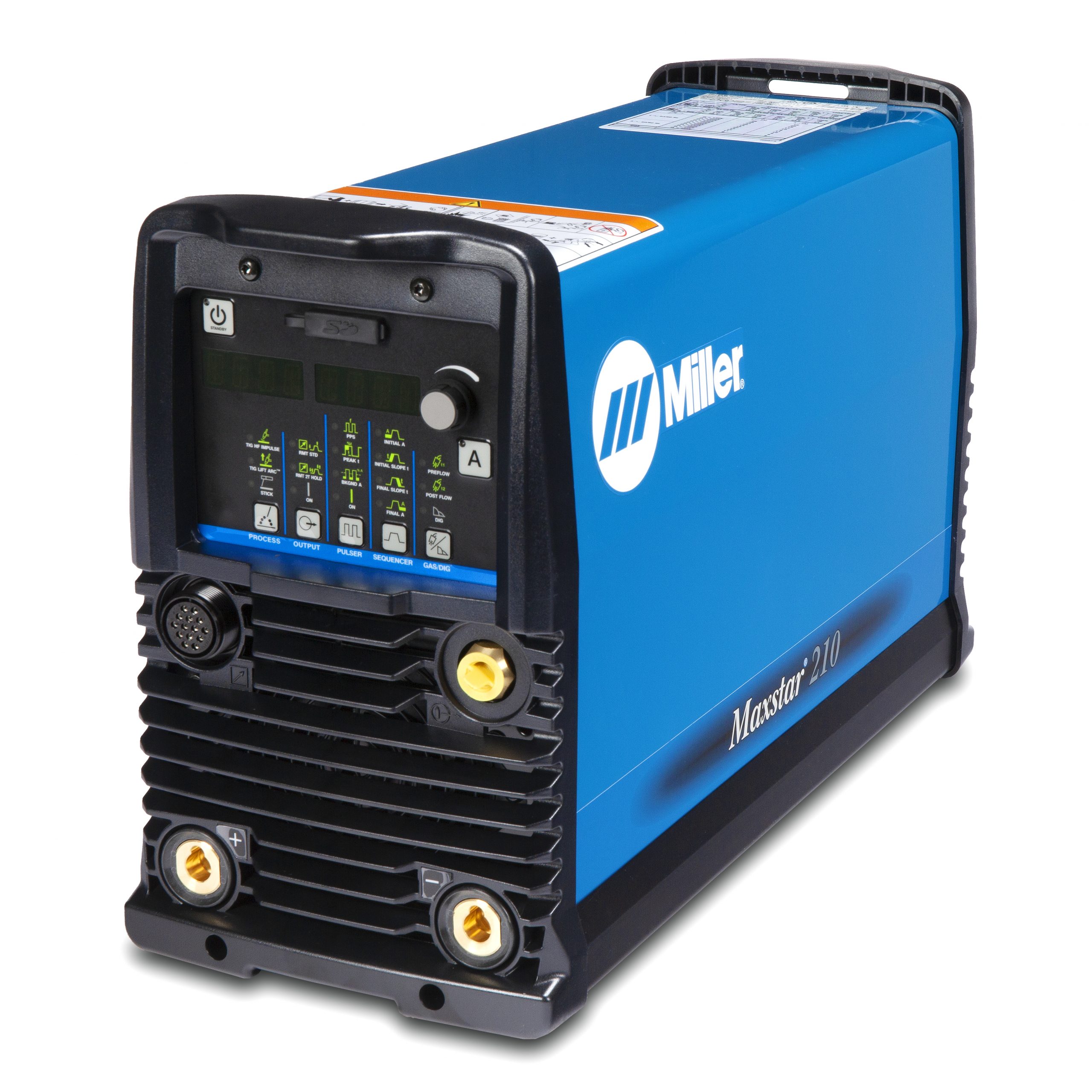

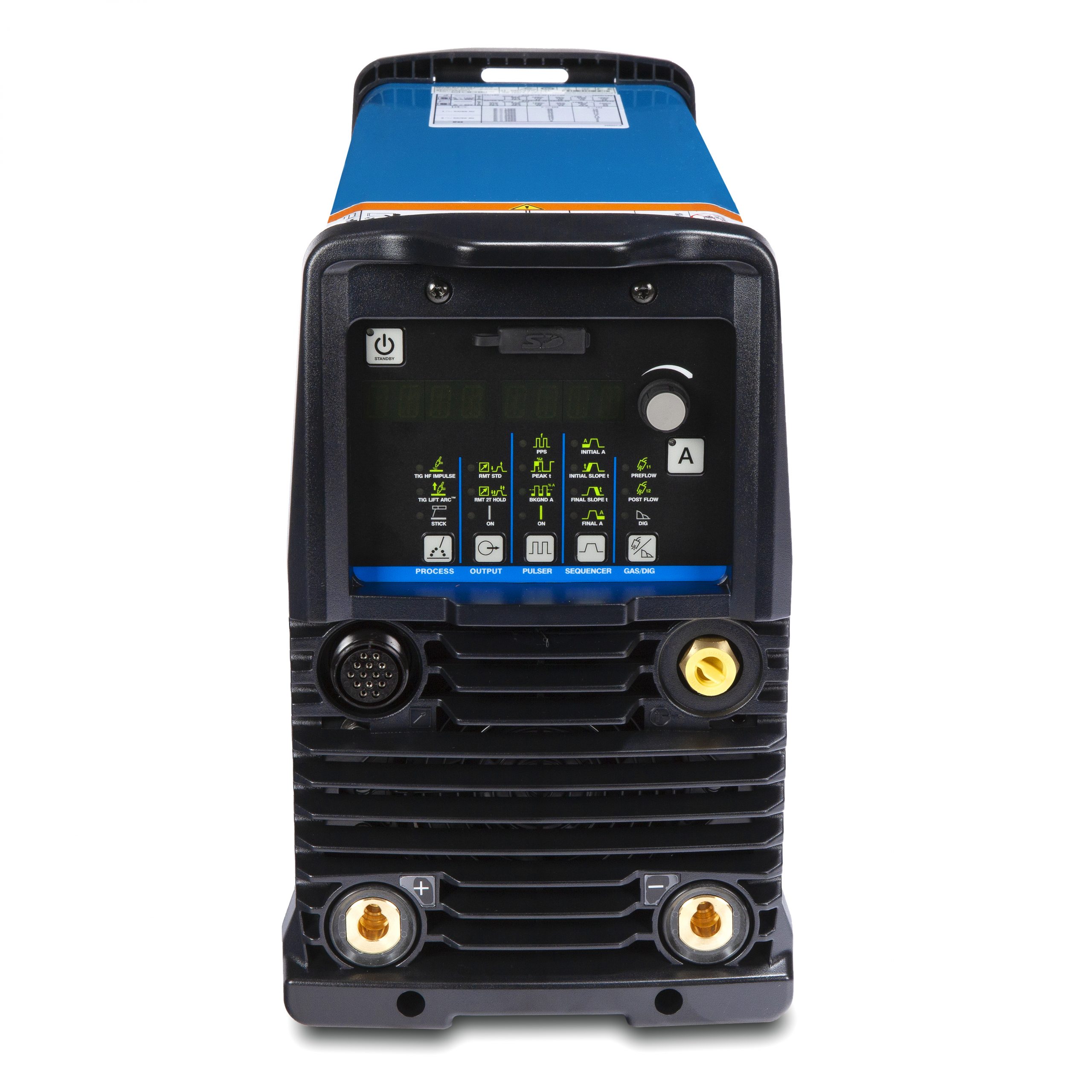

Maxstar® 210 DX TIG Welding Machine
Industry standard - Miller Electric pioneered the Maxstar-type market, now we've perfected it. Maxstar 210 DX provides a solution for a variety of needs; from simple to fully automated.
Features:
- Upgradeable and expandable - Front panel memory card data port provides the ability to easily upgrade software and expand product features.
- Pro-Set™ Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
- Sleep timer Conserves electricity by powering down the machine if it sits idle for a specific time.
- Auto-Line™ power management technology Allows for any input voltage hookup (120 – 480 V) with no manual linking.
- Blue Lightning™ High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
- Meter calibration Allows digital meters to be calibrated for certification.
- Wind Tunnel Technology™ Protects internal electrical components from airborne contaminates, extending the product life.
- Fan-On-Demand™ Power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
- DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. Pulse. Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.
- DC Stick Features - DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010. Hot Start™ adaptive control provides positive arc starts without sticking. Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.
Title: Maxstar® 210 DX
Industries Interests: Precision fabrication Petro chemical Aerospace Food/beverage industry Dairy Shipboard
Weldable Metals: Thin to medium material. Steel, Stainless, Special alloys
Input Voltage: 120 – 480 V
Input Phase: 1- or 3-phase power
Input Hz: 50 Hz
Amperage Range: 1 – 210 A (DC)
Current Type: DC
Rated Output: 210 A at 18 V, 60% duty cycle
Max Open Circuit Voltage: 80 VDC
Weld Output: CC
Net Width: 219 mm (8.6 in.)
Net Height: 346 mm (13.6 in.)
Net Length: 495 mm (19.5 in.)
Net Weight: 17.2 kg (38 lb.)
Warranty: 3 Years Miller’s True Blue Warranty
