KEMPPI MASTERTIG 535 AC/DC 500 GM WC FR CART PACKAGE

£9,999.00 - £10,608.00

11998.80 (Inc VAT)

RRP: £0.00

P0916TX

12729.60 (Inc VAT)

RRP: £0.00

P0917TX

  • Product Description
  • Technical Specification
  • What's Included:

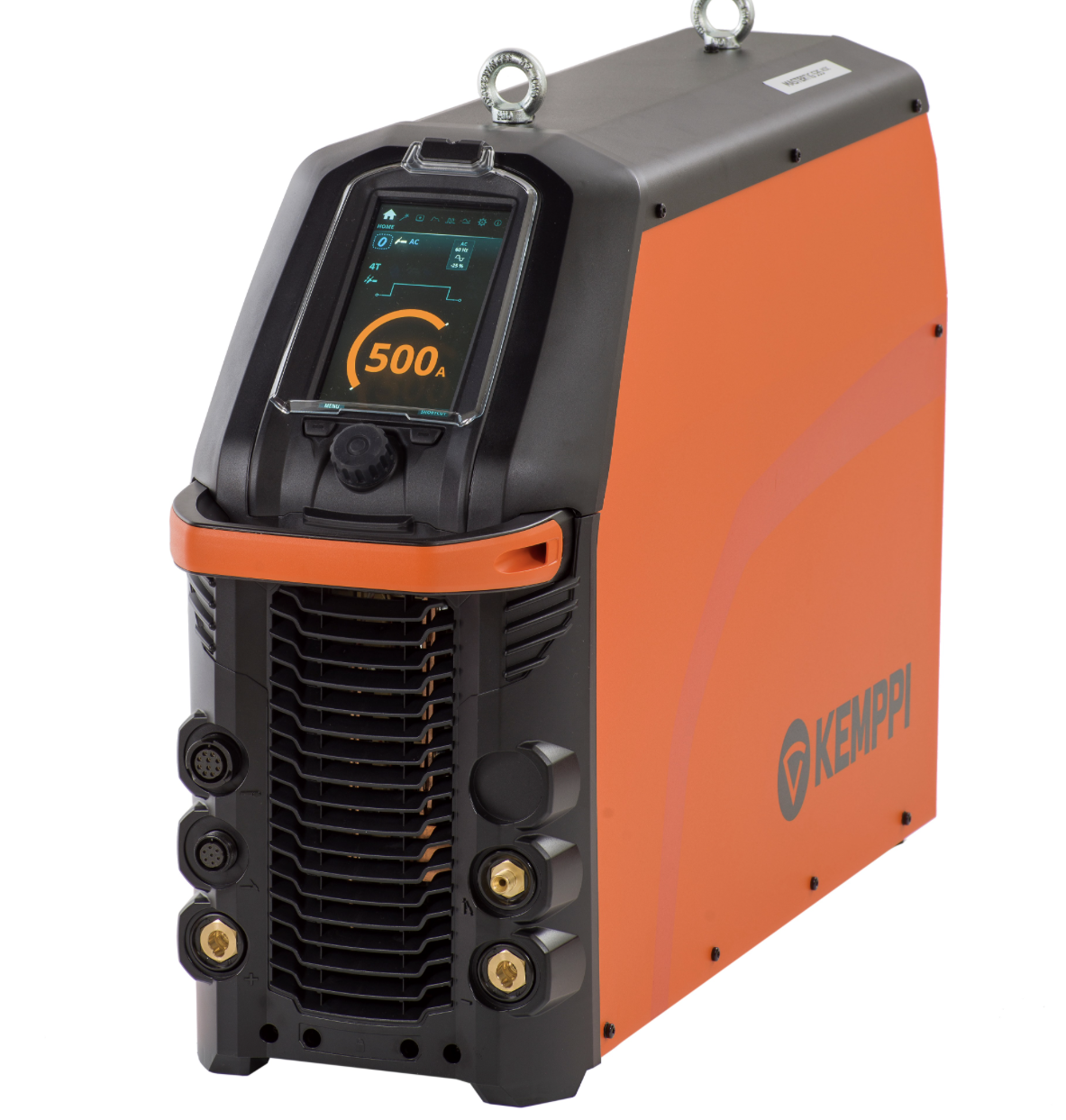

MASTER TIG

MasterTig sets new standards for weld quality, usability, and power efficiency in AC and DC TIG welding. Designed for professional welders, the MasterTig product family offers a choice of power variants up to 500 A. Its modular design philosophy allows you to build the specification that best meets your needs, including alternative control panels, wireless remote controls, and transport cart options.



Stylish, practical, and robust, the MasterTig absorbs the knocks of everyday welding life. The compact-sized welding equipment is constructed from tough yet lightweight injection-molded plastic, featuring impact bridge protection structures. Flexible and durable Flexlite TX TIG torches are readily equipped to fit MasterTig to maximize welding comfort.



BENEFITS

  • Choose from traditional touch button control panels or the full color 7’’ TFT control panel, including Weld Assist and 99 memory channels per process
  • Weld Assist guides every welder towards accurate, productive welding by recommending the best parameters for different welding applications
  • Several useful features available for enhanced TIG welding
  • Easy, fast and convenient coolant filling and cleaning
  • MasterTig transport units feature floor level cylinder loading, removing the need for heavy lifting
  • Compatible with Flexlite TX TIG torches
  • Foot pedal, on-torch and hand remote controls available
  • Option for connecting the equipment to WeldEye cloud service

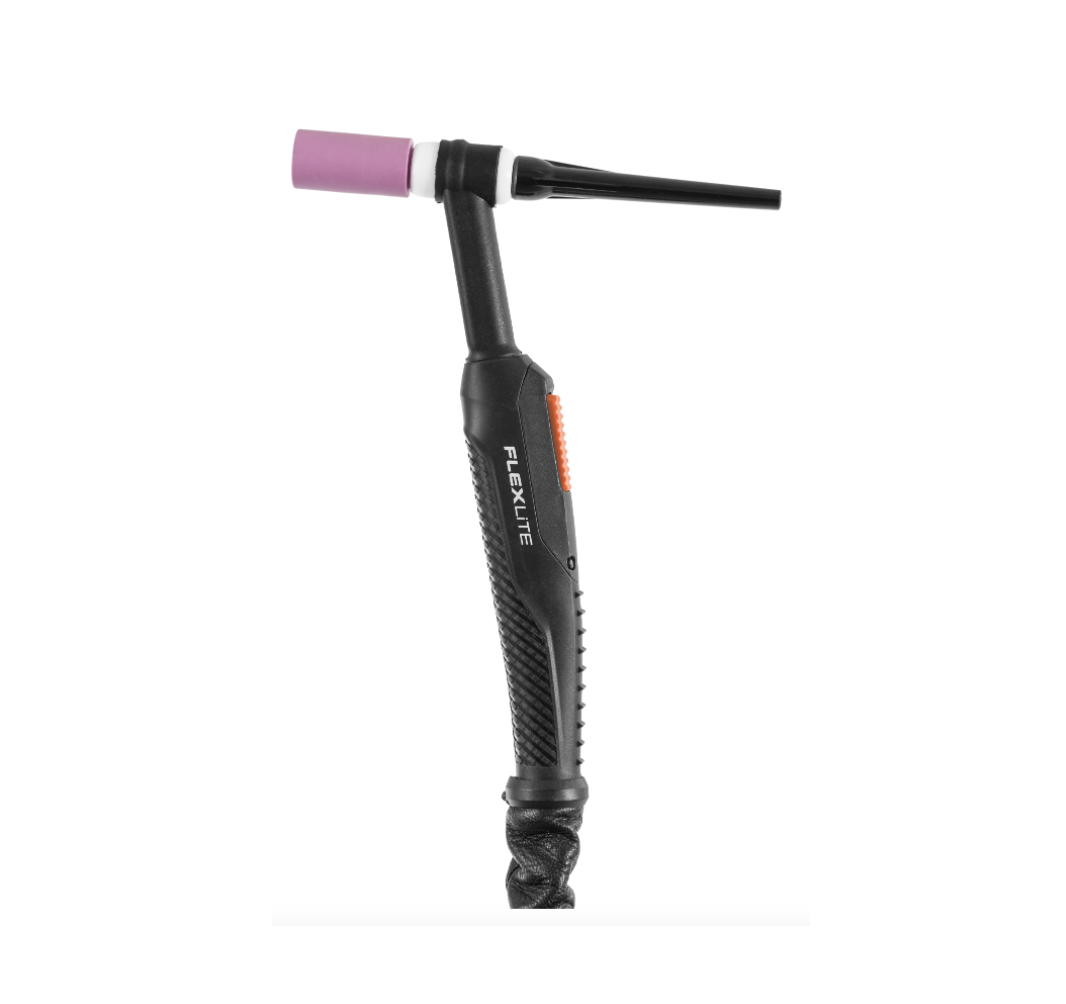

TIG TORCH

Flexlite TX welding torches for TIG welding feature excellent technical performance, extended consumables life, and everyday welding comfort. Durable silicone rubber material gives a firm grip while the torch handle's innovative design reduces wrist loading, allowing welders to concentrate on challenging tasks to achieve the perfect weld.



Available in alternative power classes and lengths, the Flexlite TX TIG torch range includes different neck versions for water and gas-cooled models. On-torch remote control options allow accurate and immediate welding current adjustment at a distance. To get the best quality and cost-effectiveness for your welding, equip your Flexlite TX torch with Kemppi consumables.



BENEFITS

  • Choose from fixed, flexible, and S-shaped rotating neck designs
  • Flexible cable set with leather sheathing protection maximizes durability
  • Innovative torch design increases user comfort by reducing wrist loading
  • Silicone rubber material gives a firm grip on the handle
  • Kemppi consumables guarantee high quality and cost-effectiveness for your welding
  • Torch models available with or without a trigger switch
  • Optional switch extension increases trigger control accuracy
  • On-torch remote control options with roller and rocker type switches

MASTER TIG

Product code - MT535ACDCGM

Connection voltage 3~ 50/60 Hz 220 ... 230 V; 380 ... 460 V ±10 %

Fuse - 32A (220-230V) / 25A (380-460V)

Stick electrode sizes - 1,6...7,0 mm

Recommended generator power (min) - 35 kVA

Open circuit voltage (average) - 50 V

Operating temperature range - -20 ... +40 °C

External dimensions LxWxH - 860x263x610

Weight (no accessories) - 57 kg

Degree of protection - IP23S

Standards - EN IEC 60974-1, EN IEC 60974-3, EN IEC 60974-10, GB/T 15579.1

EMC - class A

Rated maximum output at 40 °C (40 % TIG) - 500A/30V (400V) 450A/28V (220V)

Rated maximum output at 40 °C (60 % TIG) - 400A/26V (400V) 400A/26V (220V)

Rated maximum output at 40 °C (100 % TIG) - 300A/22V (400V) 300A/22V (220V)

Rated maximum output at 40 °C (40 % MMA) - 380A/35,2V (220)

Rated maximum output at 40 °C (60 % MMA) - 400A/36,0V (400V) 320A/32,8V (220V)

Rated maximum output at 40 °C (100 % MMA) - 300A/32,0V (400V) 270A/30,8V (220V)

Range of output TIG - 3A/1V-500A/37V(400V) / 3A/1V-450A/32V(220V)

Range of output MMA - 10A/10V-400A/39V(400V) / 10A/10V-380A/37V (220V)





TX 455W

Product code - TX455W4 (4m), TX455W8 (8m)

Standards - IEC 60974-7

Type of cooling - Liquid

Type of connection (Current-gas) - G1/4

Load capacity @ 40 % (Argon) - 450 A

Load capacity @ 100 % (Argon) - 320 A

Type of connection (Control) - 7-pin

Type of connection (Coolant) - Snap connector

Remote control - Optional

Neck type - 70° angle

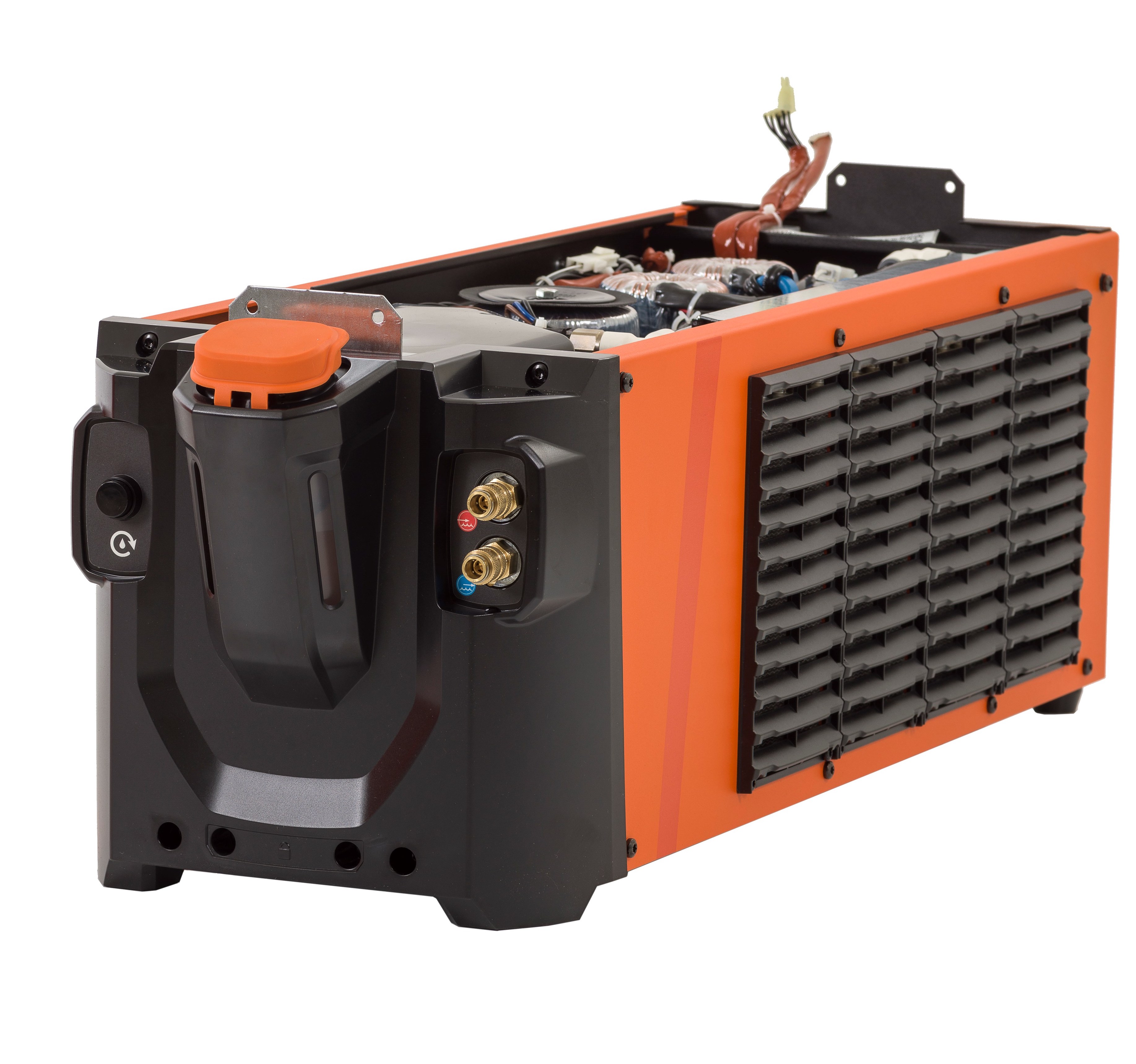

MASTERTIG COOLER MXL

Product code - MTC17KWMXL

Recommended coolant - MPG 4456 (Kemppi mixture)

Operating temperature range - -20 ... +40 °C with recommended coolant

Weight (no accessories) - 25 kg

Tank volume - 3.0 l

Cooling power - 1,7 kW

  • MASTERTIG 535 AC/DC GM (MT535ACDCGM)
  • MASTER TIG COOLER MXL (MTC17KWMXL)
  • TX 455 W TIG TORCH (TX455W4/8)

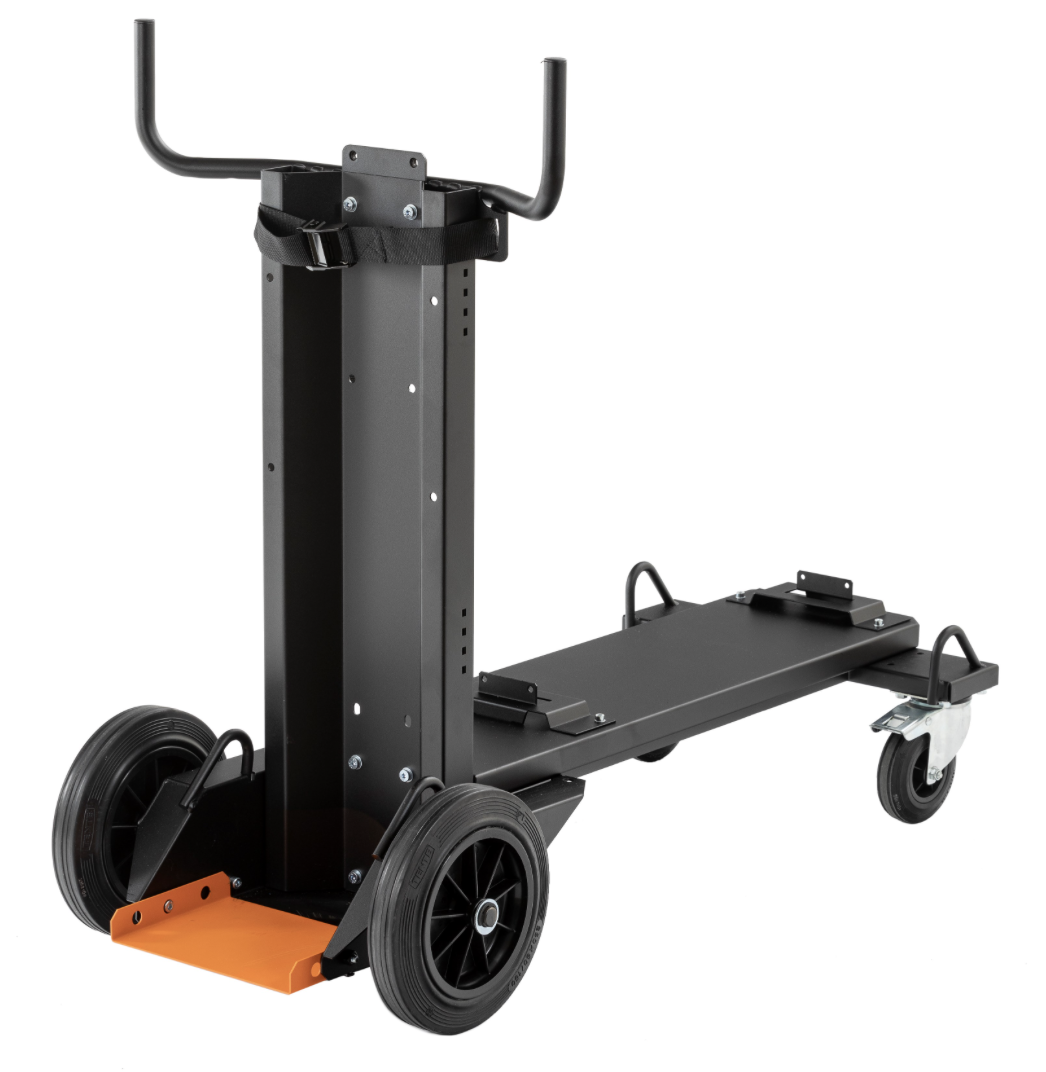

  • GAS CYLINDER CART (X57010200000)

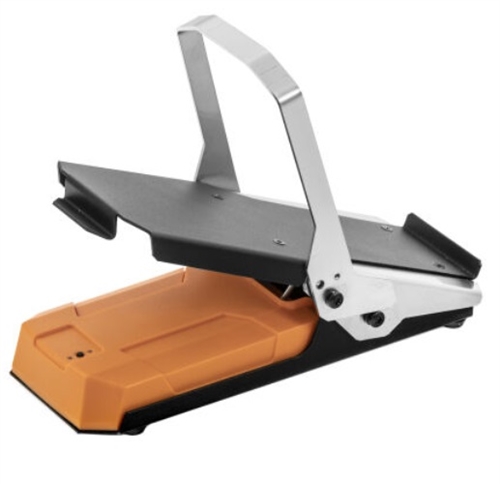

  • WIRELESS FOOT PEDAL REMOTE (FR45)

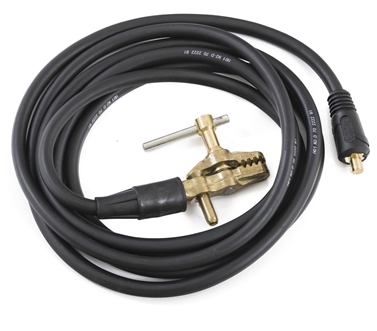

  • EARTH CABLE 70MM2 5M (6184711)
