ESAB ET 300I EU

Renegade ET 300i

The Renegade TIG are inverter based High frequency TIG (HF) and MMA/Stick machines with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on- and off site applications.

The machine has an automatic input voltage sensor and can operate with any input voltage between 208 V and 528 V in 3-phase and 230 V in single phase.

 Extreme power to weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments

 Widest input voltage tolerance and ability to run on single and three phase with cables up to 100 meters

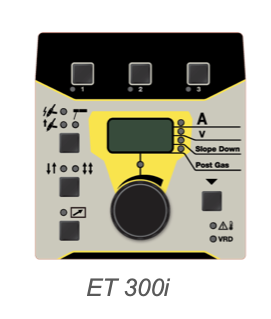

 Easy to read and quick to set panel increasing the accuracy and reduces the down time

 Use the dual-current mode trigger functionality to switch between two output current levels which controls the heat input and size of the weld pool. The background current is set as a percentage of the weld current and changes accordingly

 Available as non pulsed and as pulsed for thin sheet metal applications

 Modular system with tool-less connection to water cooler and trolley

 Designed for extreme conditions including up to +55 °C ambient temperature

Industry:

 Ship and Offshore Yards

 Civil Construction

 Pipe Construction

 Repair and Maintenance

 Heavy Fabrication

 Industrial and General Fabrication

 Mining

 Steel Erectors
