SKU: JP-160
3859.20 (Inc VAT)
The Jasic Pro Plasma Cut 160 is professional high-end cutting inverter equipped with the latest IGBT technology.
This technologically advanced plasma inverter is extremely user-friendly and offers consistently reliable cutting performance.
The machine provides variable cutting control that allows the operator to produce precise smooth cuts.
KEY FEATURES
- IGBT plasma cutting inverter
- Wheel mounted, easy to manoeuvre
- Variable cutting control
- HF ignition
- LED display
- Smooth precise cutting
- Simple operation
- In-built pressure regulator
- Suitable for automated cutting
Inverter Package Includes

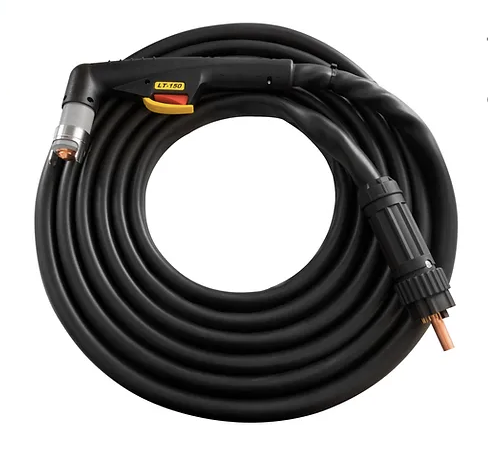

Plasma cutter power source, Wheel mounted, Plasma cutting torch, Earth return lead, Operating instructions, 5 year warranty.
- Input Voltage AC 400V – 50/60 Hz
- Ieff (A) 48 - Input Power (kVA) 43
- Current Range (A) 30 – 160
- Duty Cycle @ 40°C 160A @ 60%
- Cutting Capacity (Clean) 45 mm
- Cutting Capacity (Severance) 50 mm
- Efficiency (%) 85
- Power Factor 0.99
- Protection/Insulation Class IP21S/F
- Compressed Air Requirement 220 Ltr/Min @ 5 Bar (73 psi)
- Dimensions (LxWxH mm) 676 x 333 x 712
- Weight (Kg) 55
