SKU: JP-100
2419.20 (Inc VAT)

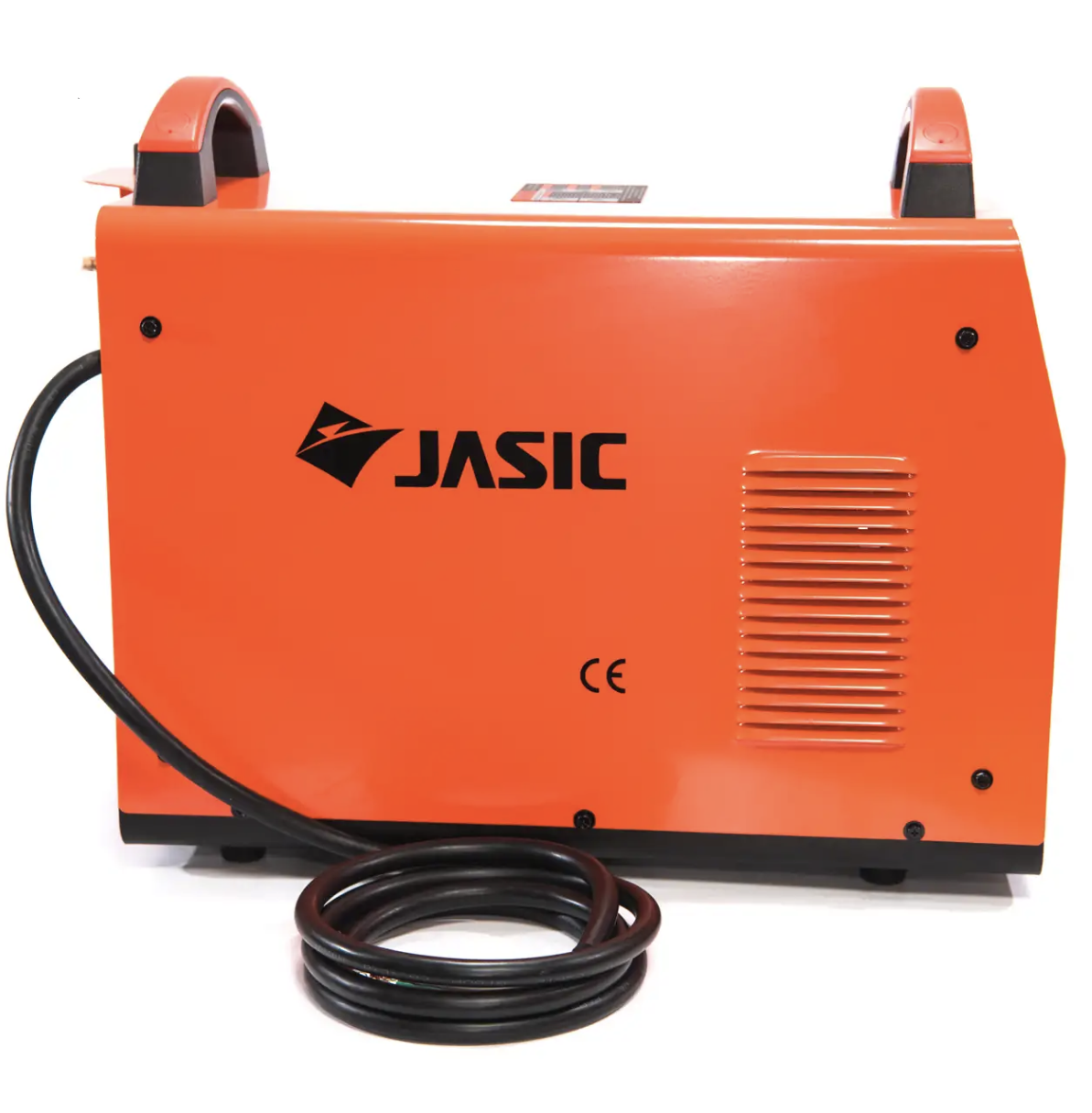

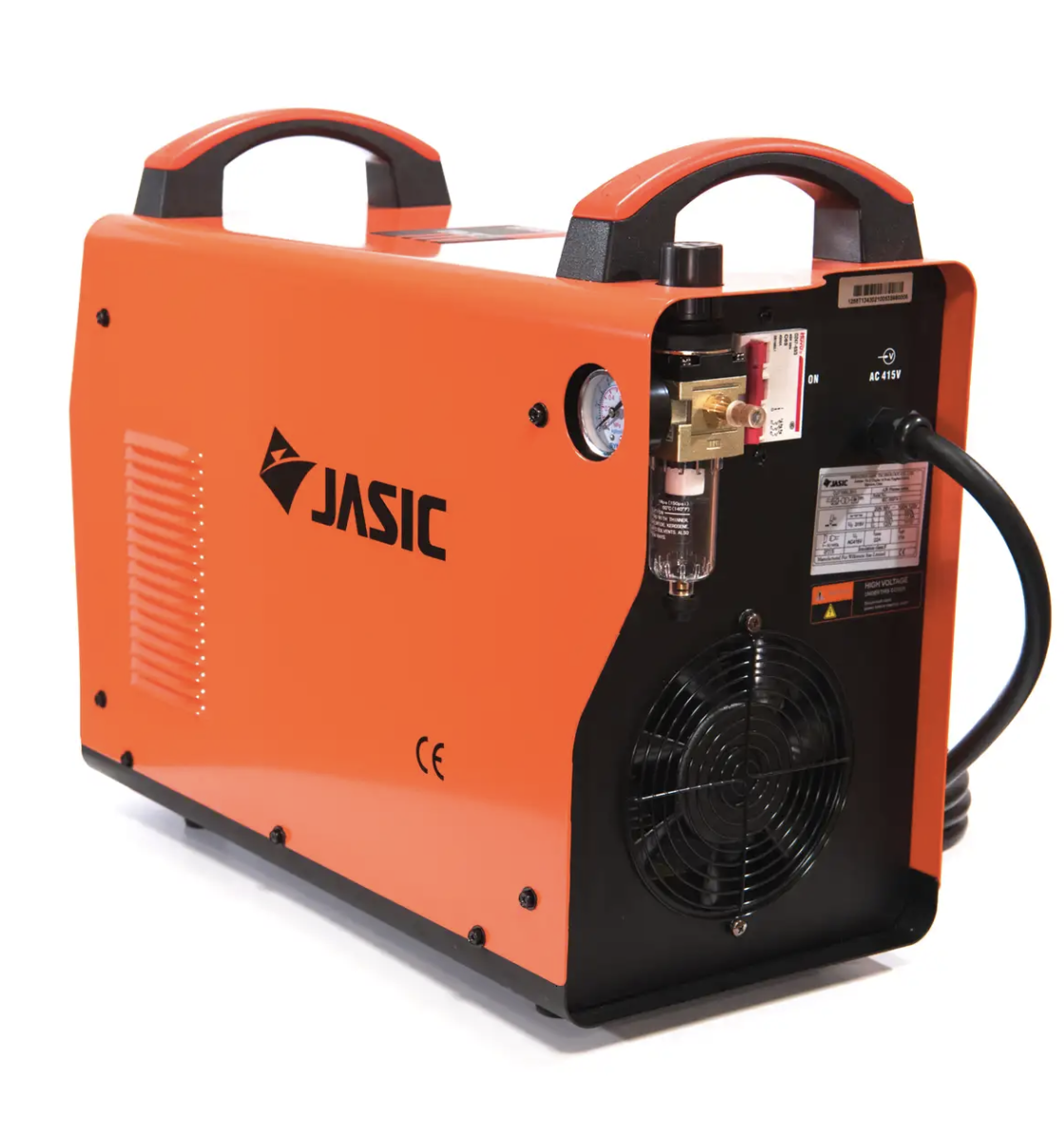

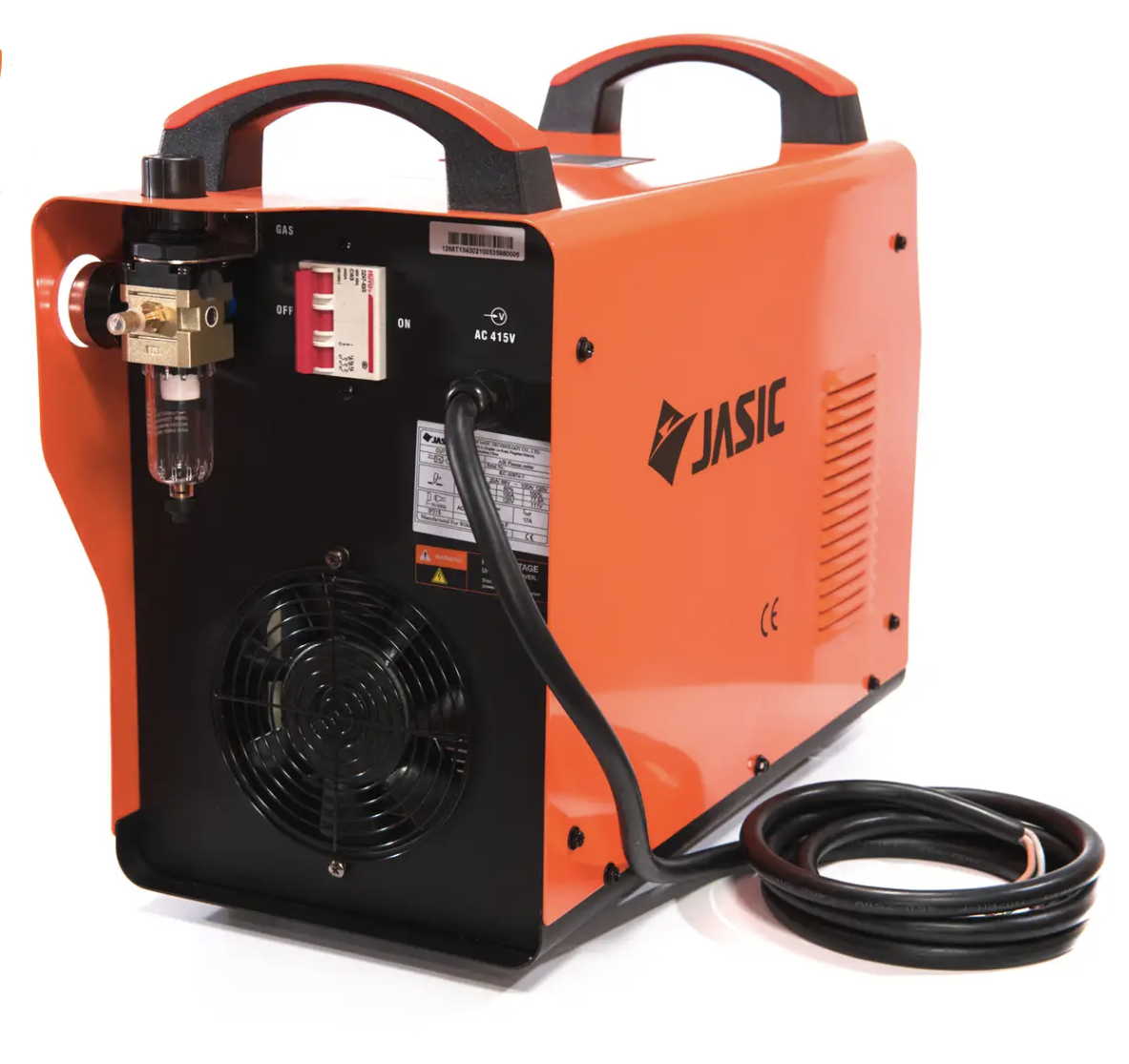

The Jasic Pro Plasma Cut 100 is professional high-end cutting inverter equipped with the latest IGBT technology.
This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
The machine provides variable cutting control that allows the operator to produce precise smooth cuts.
KEY FEATURES
- IGBT plasma cutting inverter
- Lightweight, portable modern design
- Variable cutting control
- HF ignition
- LED display
- Smooth precise cutting
- Simple operation
- Suitable for automated cutting
Inverter Package Includes
Plasma cutter power source, Plasma cutting torch, Earth return lead, Operating instructions, 5 year warranty.
- Input Voltage AC 400V – 50/60 Hz
- Ieff (A) 17
- Input Power (kVA) 15.8
- Current Range (A) 20 – 100
- Duty Cycle @ 40°C 100A @ 40%
- Cutting Capacity (Clean) 30 mm
- Cutting Capacity (Severance) 35 mm
- Efficiency (%) 90
- Power Factor 0.93
- Protection/Insulation Class IP21S/F
- Compressed Air Requirement 220 Ltr/Min @ 5 Bar (73 psi)
- Dimensions (LxWxH mm) 565 x 255 x 440
- Weight (Kg) 26.5
