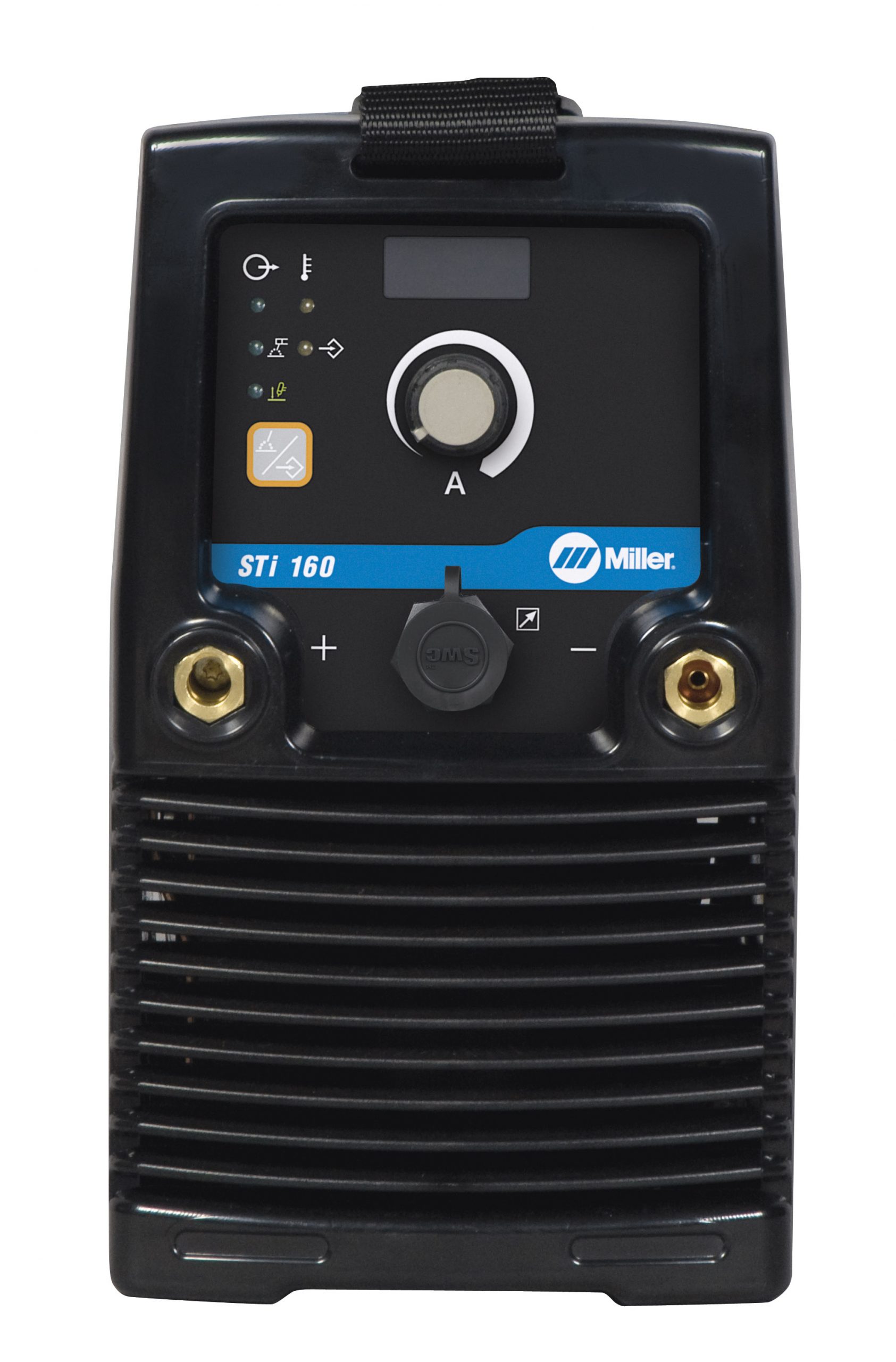

MILLER STI160 STICK (MMA + LIFT TIG) WELDING MACHINE

STi 160 Stick Welding Machine

059016012

Stick and TIG capable, inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.

FEATURES;

• Portable in the shop or at the jobsite—at 6.0 kg (13.2 lb.) the shoulder strap allows the end user to easily move from location to location.
• Simple-to-use operator interface Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.
• Dual fan technology An optimised power source cooling system which enables the machine to operate at a lower temperature, thus increasing its performance and life cycle.
• Thermal overload protection with indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
• VRD function is a simple design that reduces the open-circuit voltage to 20 volts when the welding power source is not in use.
• Digital meter with presetting Shows preset current before welding and actual value during welding.
• Full-function remote control connector for precise amperage control for critical welds on thin materials.
• Lift-Arc™ start provides TIG arc starting without the use of high frequency or the risk of tungsten contamination.
• Best-in-class stick arc characteristics for those demanding jobs.
• Adjustable Hot Start™ for stick arc starts. Adjust the optimal start current for the application. The current auto matically increases the output amperage at the start of a weld.
• Adjustable Arc Force™ prevents sticking. Adjust the optimal arc force value. Adjustable arc force supports positional welding by increasing the output amperage.
