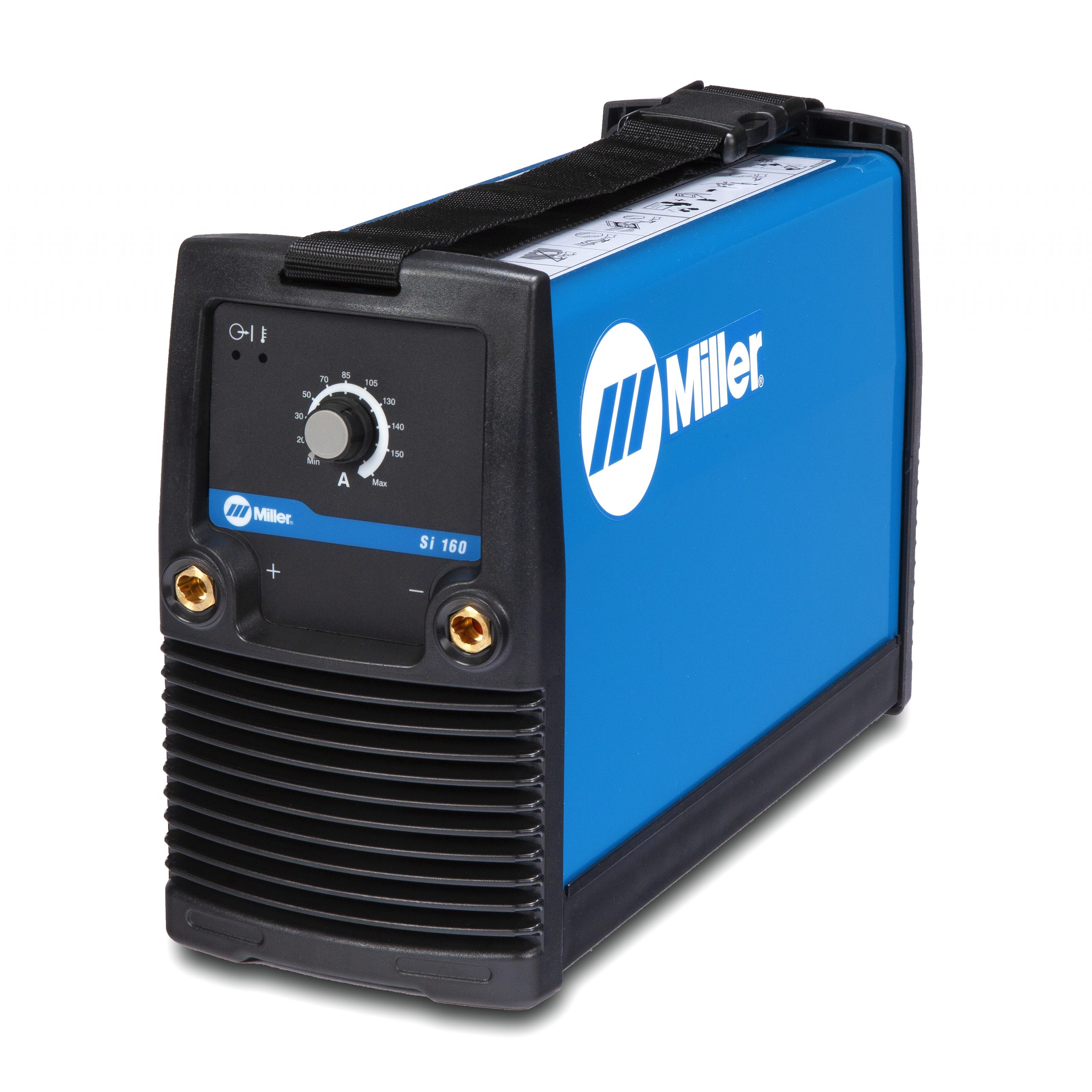

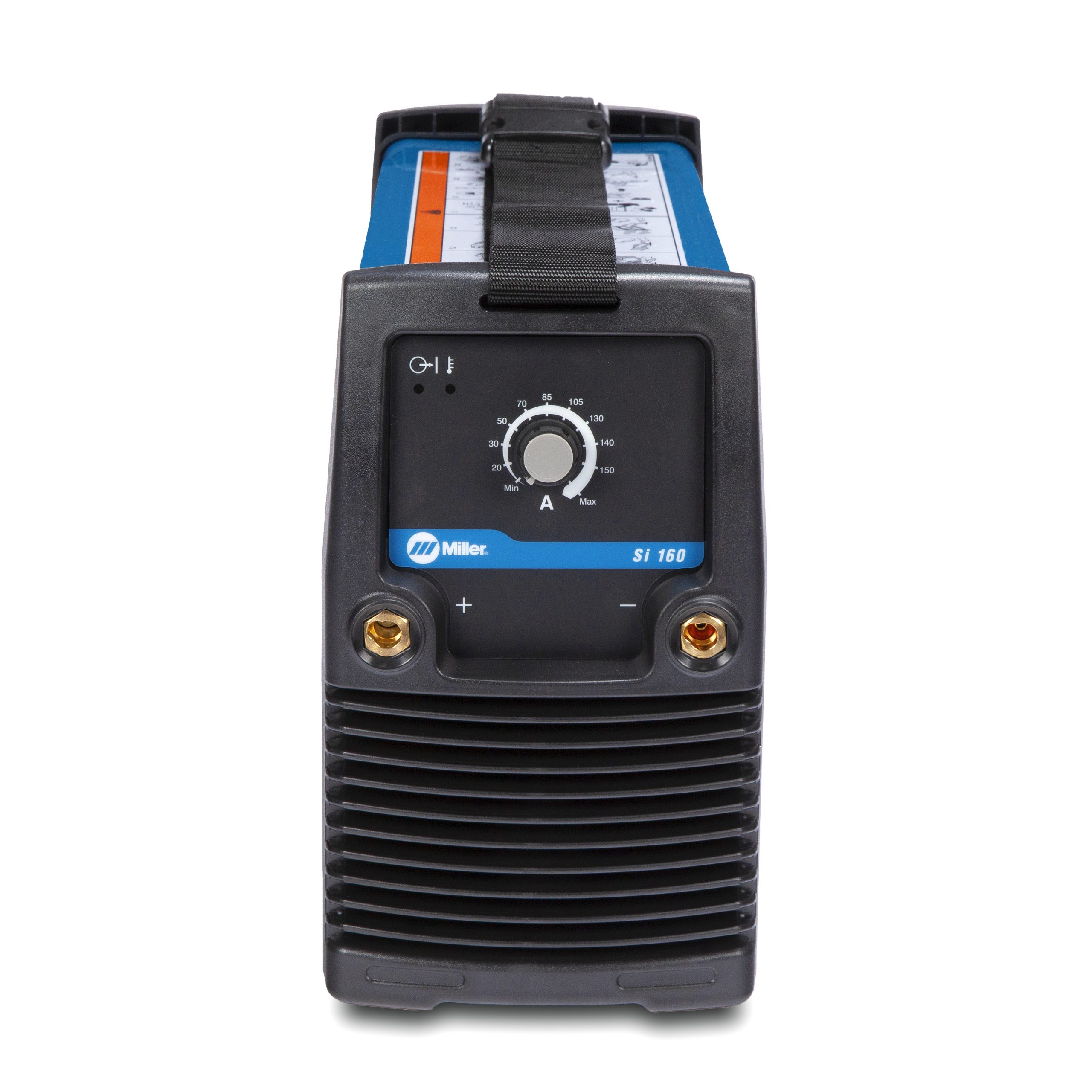

Si 160 Stick Welding Machine
Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.
FEATURES:
- Portable in the shop or at the jobsite— at less than 6.2 kg (13.7 lb.) the shoulder strap allows the end user to easily move from location to location.
- Simple-to-use operator interface Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.
- Dual fan technology An optimised power source cooling system which enables the machine to operate at a lower temperature, thus increasing its performance and life cycle.
- Thermal overload protection with indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
- VRD function is a simple design that reduces the open-circuit voltage to 20 volts when the welding power source is not in use.
- Best-in-class stick arc characteristics for those demanding jobs.
- Preset Hot Start™ for stick arc starts automatically increases the output amperage at the start of a weld should the start require it. Prevents the electrode from sticking and creating an inclusion.
Title: Si 160
Industries Interests: Process pipe
Maintenance repair
Farm/ranch
Dairy industry
Food/beverage industry
Shipboard installation
Weldable Metals: Thin to medium material, Steel, Stainless
Input Voltage: 230 V
Input Phase: 1-phase
Input Hz: 50/60 Hz
Amperage Range: 15–150 A
Rated Output: 100 A at 100% duty cycle
150 A at 25% duty cycle
Max Open Circuit Voltage: 85 V
Net Width: 145 mm (5.75 in.)
Net Height: 245 mm (9.65 in.)
Net Length: 380 mm (15 in.)
Net Weight: 5.2 kg (11.5 lb.)
Warranty: 3 Years Miller’s True Blue Warranty
