SKU: 61002180
825.60 (Inc VAT)

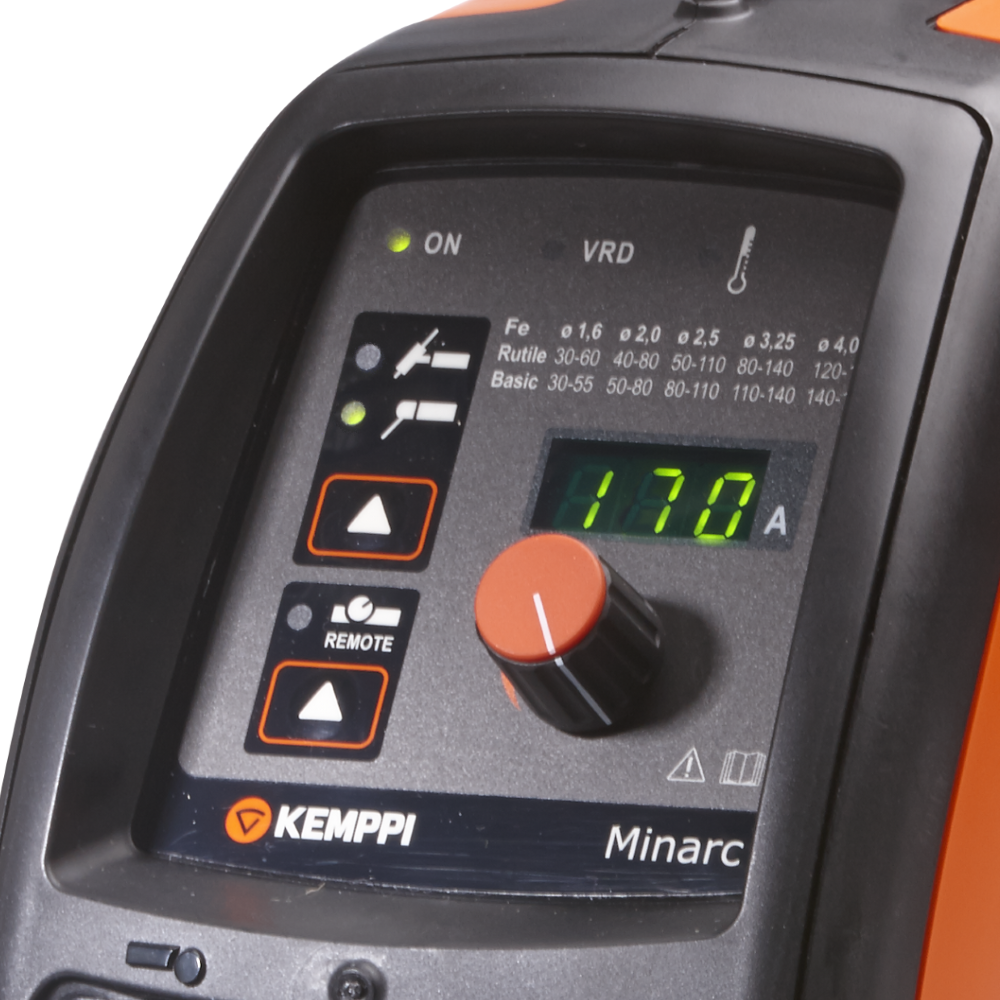

Outstanding welding performance is no overstatement. Every element of Minarc Evo 180 is designed to meet the needs of professional welders on the move. Where size, weight and welding quality are concerned, there is no equal.
Ideal for site use, you can use Minarc Evo 180 from mains or generator power supplies, even with extra long supply cables. Minarc Evo is easy to carry, so you can normally take everything you need in one journey.
Package includes earth return and welding cables (3 m) and shoulder strap.
BENEFITS:
Product code - 61002180
Connection voltage 1~ 50/60 Hz 230 V ±15 %
Fuse (delayed) - 16 A
Minimum generator power - 5.5 kVA
Output (40°C) TIG - 100 % ED, 130 A / 15.2 V
- 35 % ED, 180 A / 17.2 V
Output (TIG) 35% ED - 180 A/17.2 V
Output (TIG) 60% ED - 150 A / 15 V
Output (TIG) 100% ED - 130 A/15.2 V
Output (MMA) 30% ED - 170 A/26.8 V (140AU: 28% ED 140 A/25.6 V)
Output (MMA) 60% ED - 140 A / 25.6 V
Output (MMA) 100% ED - 115 A/24.6 V (140AU: 80 A/23.2 V)
Open circuit voltage - 90 V
Stick electrode sizes - 1.5...4.0 mm
Welding range (MMA) - 10 A/15 V - 170 A/32 V
Welding range (TIG) - 10 A/10 V - 180 A/30 V
Rated power at max. current 30% ED MMA - 170 A / 5.7 kVA
Rated power at max. current 35% ED TIG - 180 A / 4.0 kVA
Power factor at 100 % ED - 0.99
Efficiency at 100 % ED (MMA) - 84 %
Operating temperature range - –20...+40 °C
External dimensions LxWxH - 361 x 139 x 267 mm
Weight (no accessories) - 5.4 kg
Degree of protection - IP23S
Standards - IEC 60974-1 IEC 60974-10 IEC 61000-3-12
Weight (with connection cable) - 5.85 kg
EMC class - A
Norms - IEC 60974-1, -10, IEC 61000-3-12
