SKU: JM-500SYN
5542.80 (Inc VAT)

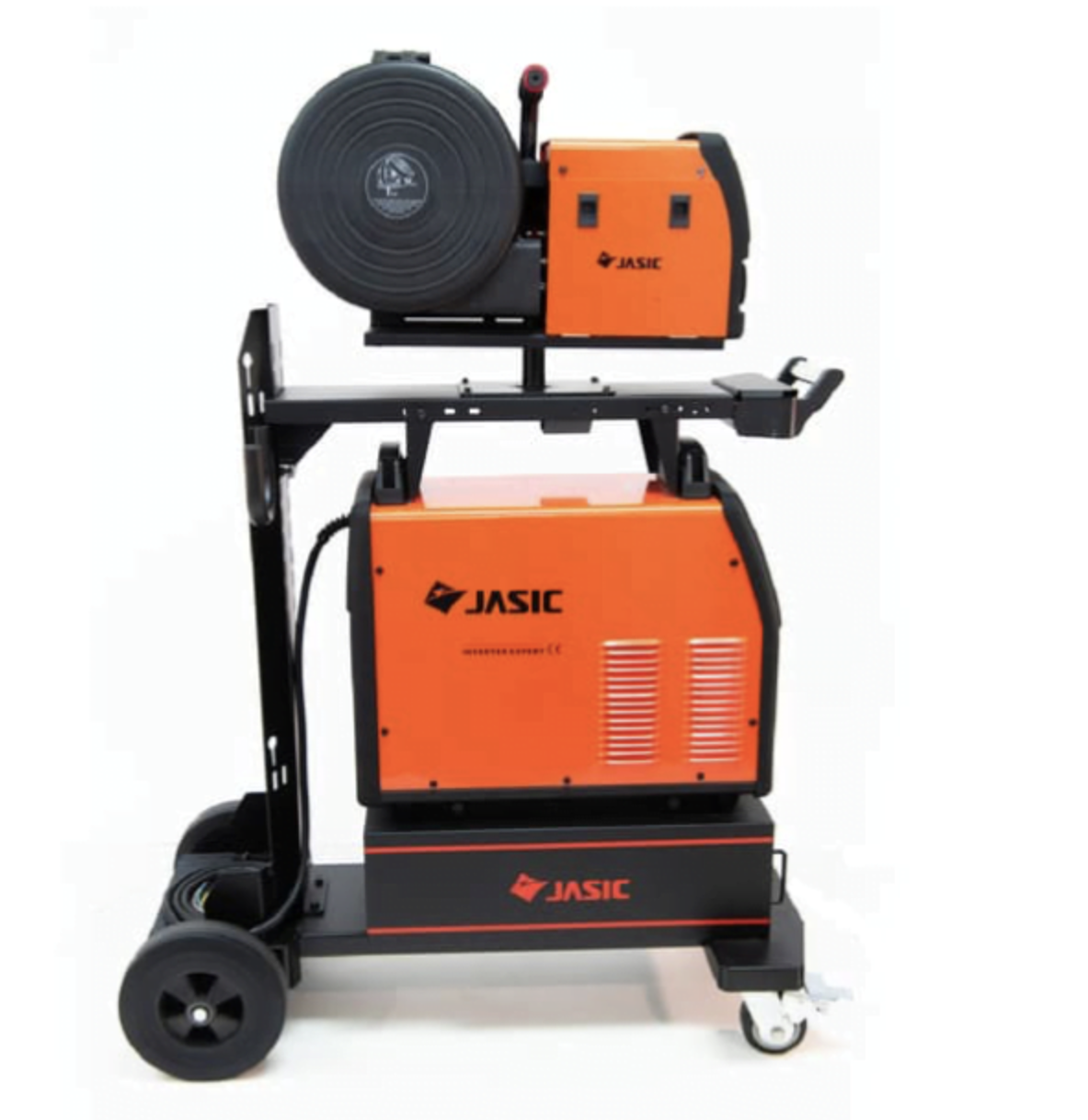

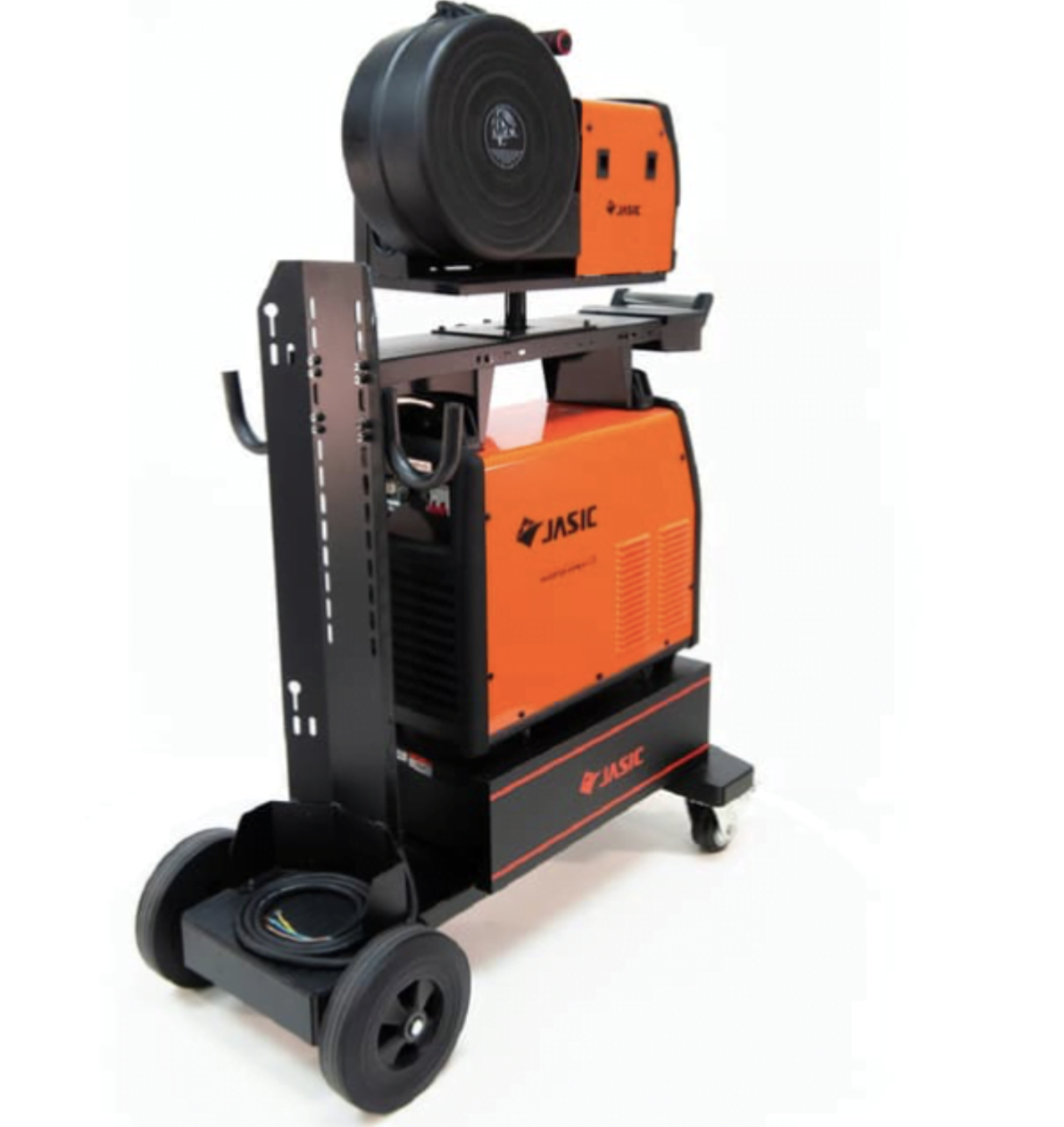

The Jasic MIG 500S is a powerful MIG/MAG synergic welding system.
It is suitable for use in the most demanding situations and its digital controls and displays make it easy to use.
It has synergic programs for a wide range of common wires and materials.
- IGBT multi-process inverter welder
- DSP digital technology for optimum weld performance
- High duty cycle
- 4 Roll wire feed unit

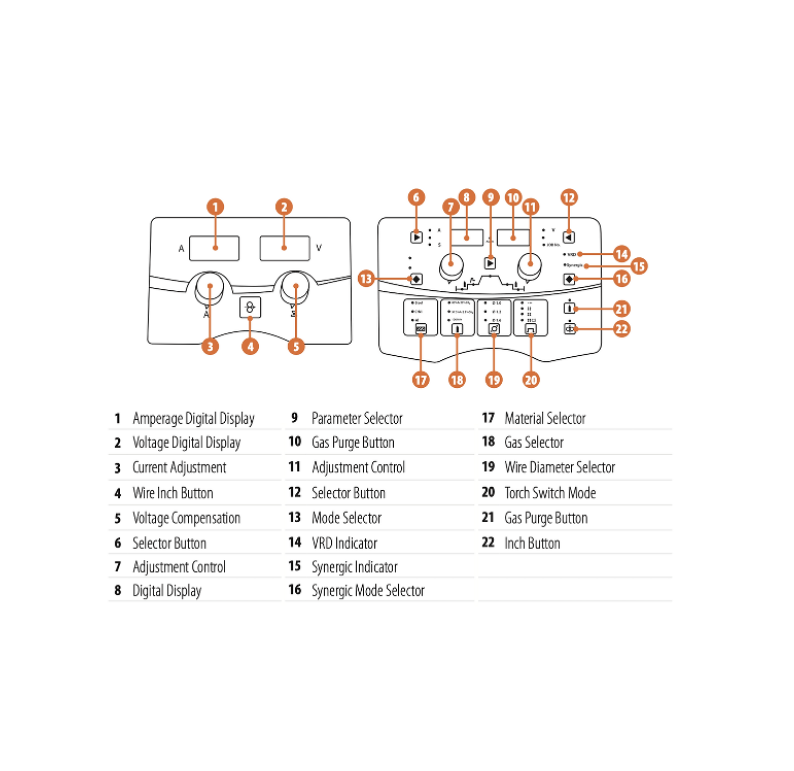

- Easy parameter setting for the operator
- Suitable for 0.8/1.0/1.2/1.6mm wires
- Self diagnostic system
- Power & status LED’s
- Encoder feedback control of wire feed system
- Inverter trolley takes full size gas bottle
Inverter Package Includes
Inverter power source, Trolley, 4 roll wire feed unit, 5 metre Interconnecting cable, Water Cooler, MIG welding torch, Work return lead and clamp, Gas hose & regulator.
- Input Voltage 400 +/- 20% 3P
- Ieff (A) 28.7
- Input Power (kVA) 24.2
- Voltage Adjustment Range (V) 15.5 – 50
- Current Range (A) MIG 60 – 500 MMA 30 – 500
- VRD Voltage MMA (V) 15
- Duty Cycle @ 40°C 500A @ 50%
- No-Load Voltage (V) 80
- Wire Speed (m/min) 1.5 – 22
- Efficiency (%) 91
- Power Factor 0.92
- Protection/Insulation Class IP23S/F
- Dimensions (LxWxH mm) 1020 x 505 x 1390
- Weight (Kg) 129
