SKU: JM-500P
6469.20 (Inc VAT)

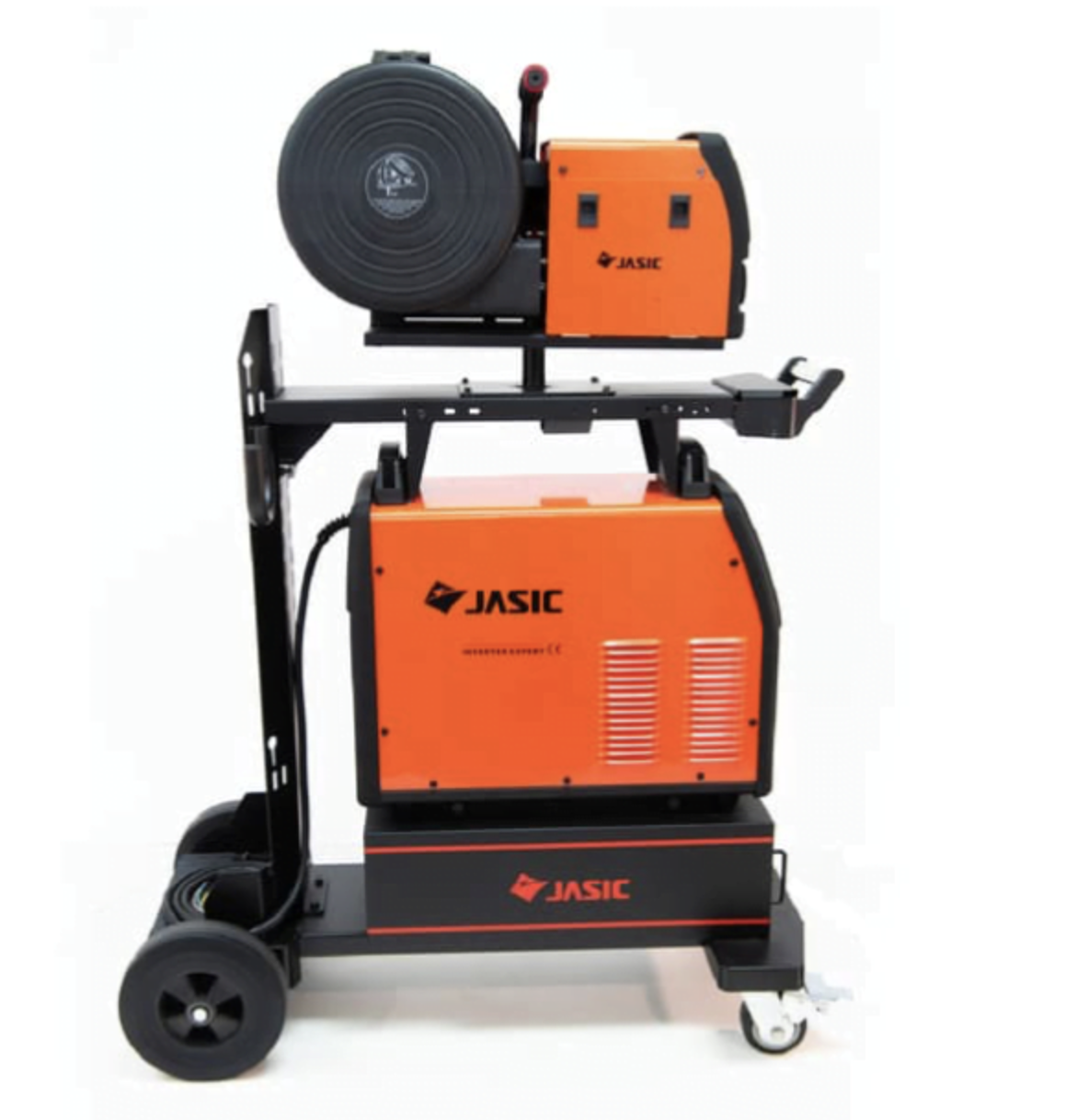

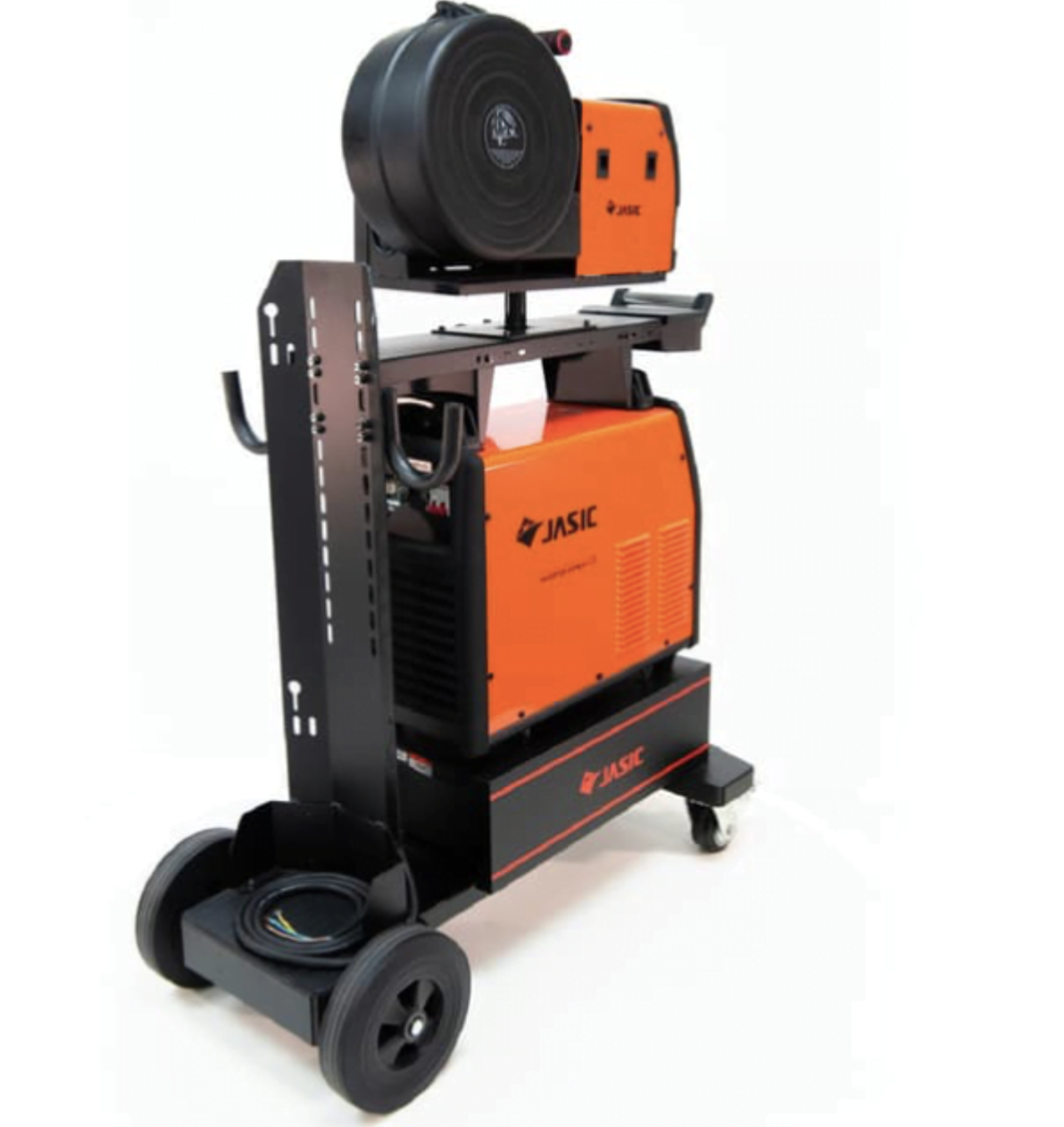

The Jasic MIG 500P is a high quality digital MIG/MAG power source.
It provides low spatter consistent welding with minimal rework on a wide range of materials.
The Jasic MIG 500P provides multi process pulse MIG, synergic MIG, TIG, MMA options for a wide range of applications.
KEY FEATURES
• IGBT multi process inverter
• Pulsed MIG, MIG/MAG, TIG and DC MMA
• Synergic or standard operating modes
• DSP digital technology for optimum welding performance
• Smart fan and water control
• Job storage system
• 4 roll wire feed unit
• Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
• Easy parameter settings for the operator
• Synergic curves for common materials & wire diameters
• Self diagnostic system
• Encoder feedback control of wire feed system
• Power & status LED’s
• Inverter trolley takes full size gas bottle
- Input Voltage 400 +/- 20% 3P
- Ieff (A) 28.6
- Input Power (kVA) 26.7
- Voltage Adjustment Range (V) 10-50
- Current Range (A) 30-500
- VRD Voltage MMA (V) 15
- Duty Cycle @ 40°C No-Load Voltage (V) 500A @ 50%
- Wire Speed (m/min) 86
- Efficiency (%) 92
- Power Factor 0.9
- Protection/Insulation IP23S/F
- Class Dimensions (LxWxH mm) 1080 X 550 X 1180
- Weight (Kg) 129
Weight
129
