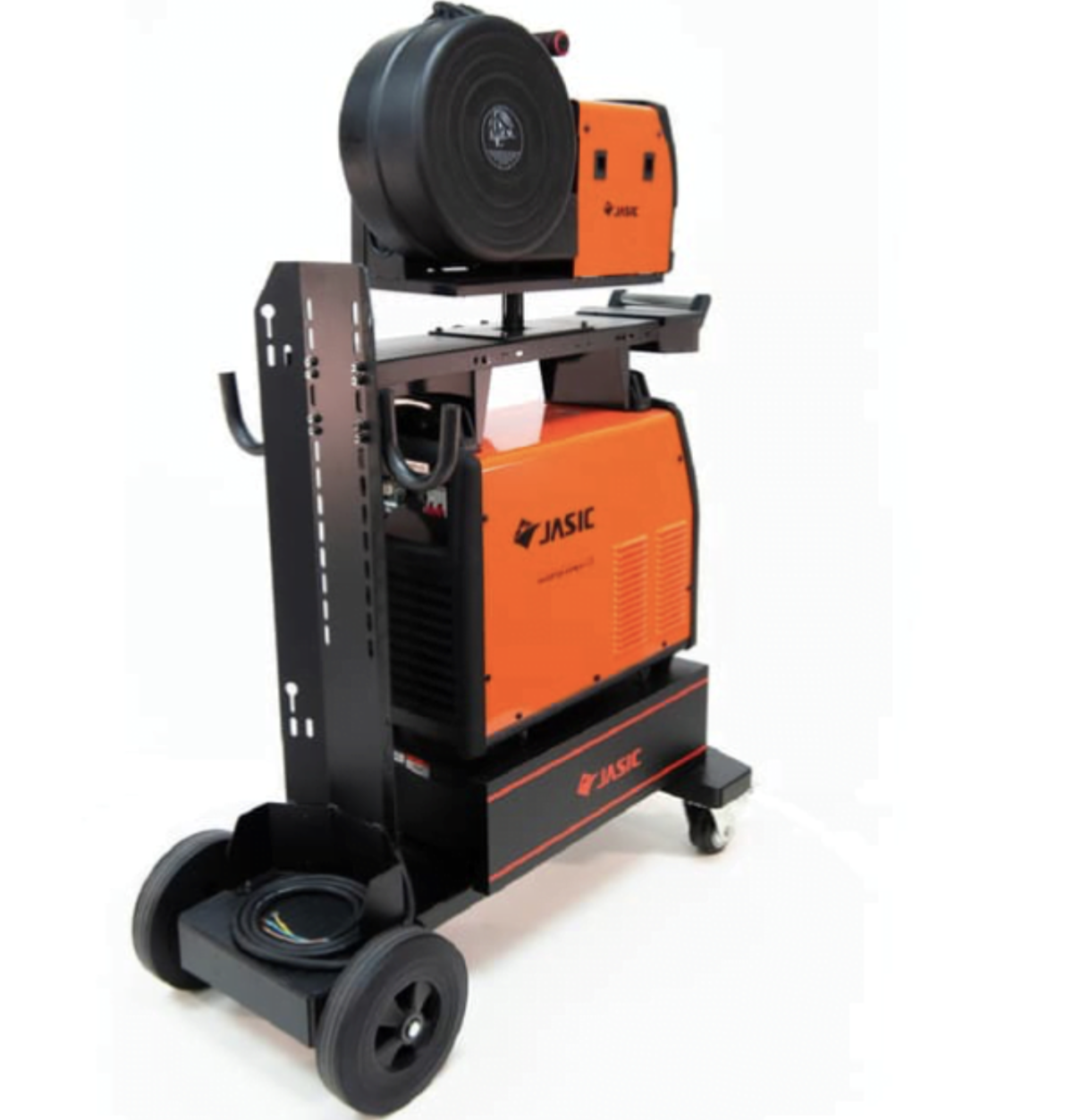

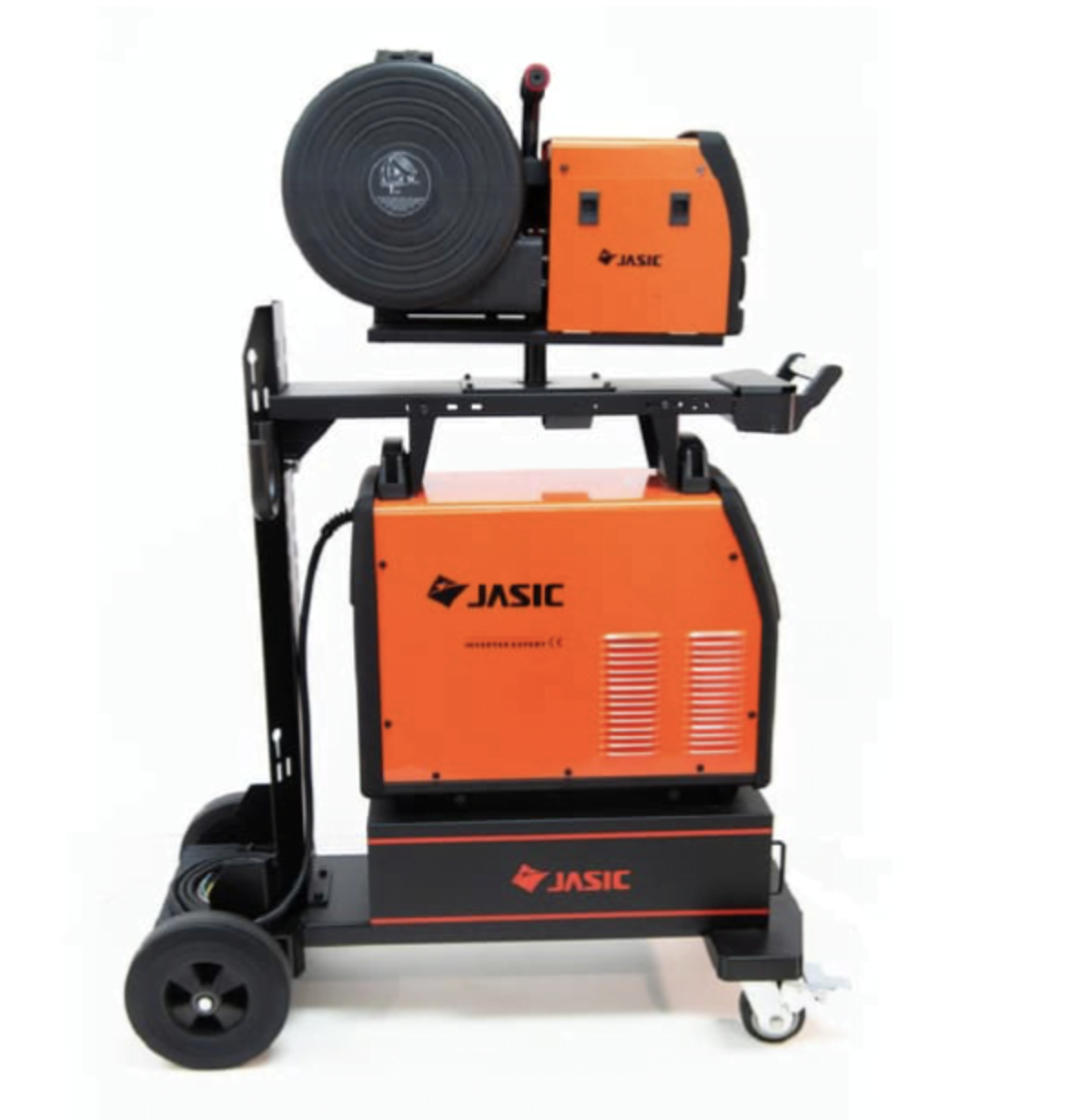

JASIC MIG 452S MULTI PROCESS SEPARATE INVERTER WELDER

The Jasic MIG 450 Separate equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.

This high quality three-phase inverter welder delivers an impressive 400 amps at 100% duty cycle, making the MIG 450 an excellent choice for heavy duty industrial manufacturers.

Featuring a unique (welding dynamic characteristic control circuit) in MIG, provides a stable arc, low spatter, excellent weld appearance and high welding efficiency.

- IGBT MIG/MAG MMA inverter welder

- Digital amp and Voltmeter

- High duty cycle

- 4 Roll wire feed unit

- Advanced control circuitry

- Suitable for 0.8/1.0/1.2/1.6mm wires

- Burn back control & wire inching - 2T/4T trigger function

- Power & status LED’s

- Gas check function

- Variable inductance

- Inverter trolley takes full size gas bottle

Inverter Package Includes

Inverter power source, Trolley, 4 roll wire feed unit, 10 metre Interconnecting cable, MIG welding torch, Work return lead and clamp, Gas hose & regulator.

- Input Voltage AC 400V – 50/60 Hz

- Ieff (A) 27

- Input Power (kVA) 18.7

- Voltage Adjustment Range (V) 15 – 40

- Current Range (A) MIG 60 – 450 MMA 30 – 400

- Duty Cycle @ 40°C 400A @ 100%

- No-Load Voltage (V) 65

- Wire Speed (m/min) 1 – 18

- Efficiency (%) 85

- Power Factor 0.91

- Protection/Insulation Class IP21S/F

- Dimensions (LxWxH mm) 1020 x 505 x 1460
