SKU: JM-352S
£2,239.00 - £2,443.00
2686.80 (Inc VAT)
RRP: £0.00
JM-352S2931.60 (Inc VAT)
RRP: £0.00

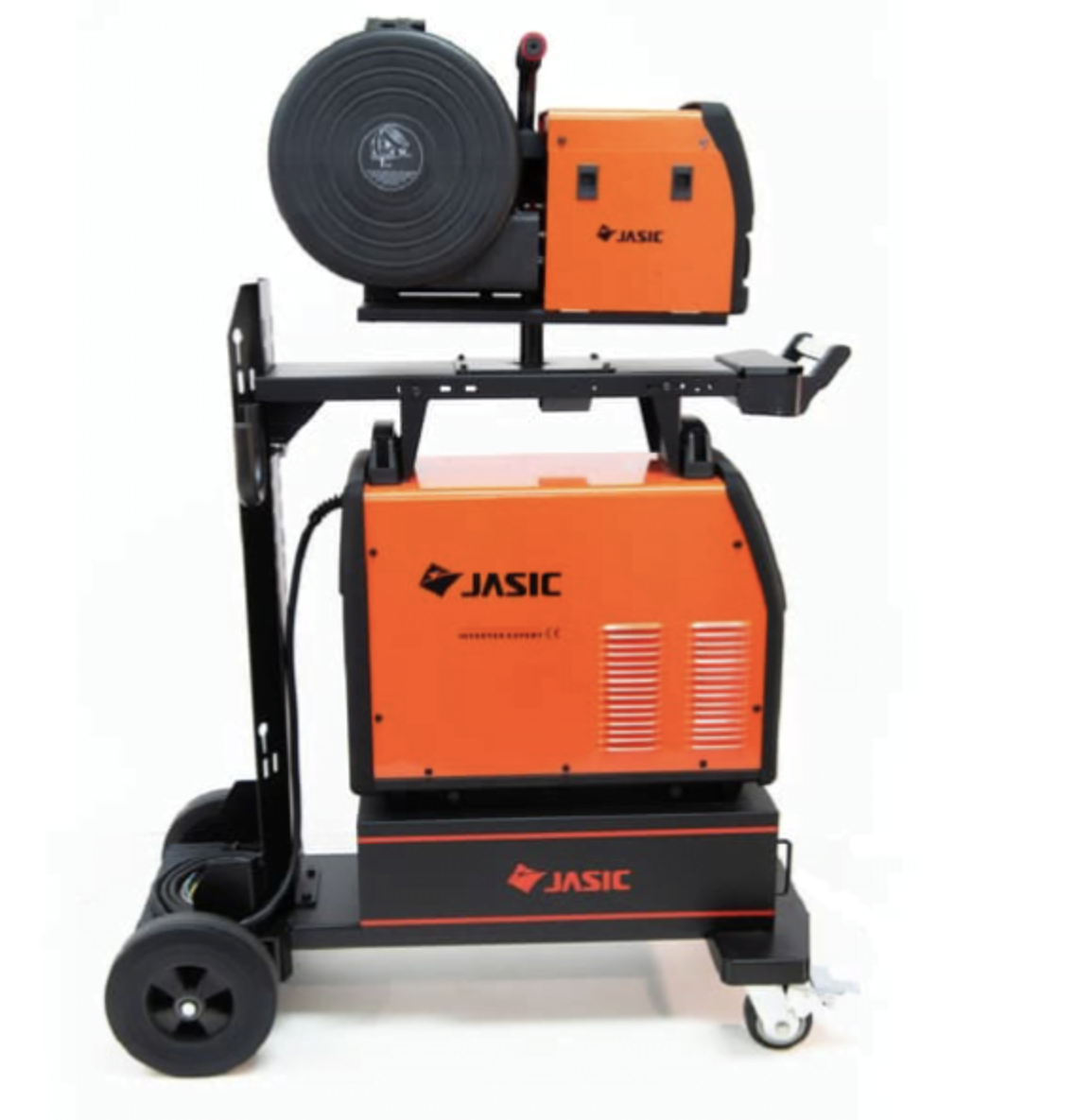

JM-352S-10MThe Jasic MIG 350 separate equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This high quality three-phase inverter welder delivers an impressive 350 amps at 40% duty cycle, making the MIG 350 an excellent choice for heavy duty industrial manufacturers.
Featuring a unique (welding dynamic characteristic control circuit) in MIG, provides a stable arc, low spatter, excellent weld appearance and high welding efficiency.
- IGBT MIG/MAG MMA inverter welder
- Digital amp and voltmeter
- High duty cycle
- 4 Roll wire feed unit
- Advanced control circuitry
- Suitable for 0.8/1.0/1.2/1.6mm wires
- Burn back control & wire inching
- 2T/4T trigger function
- Power & status LED's
- Gas check function
- Variable inductance
- Inverter trolley takes full size gas bottle

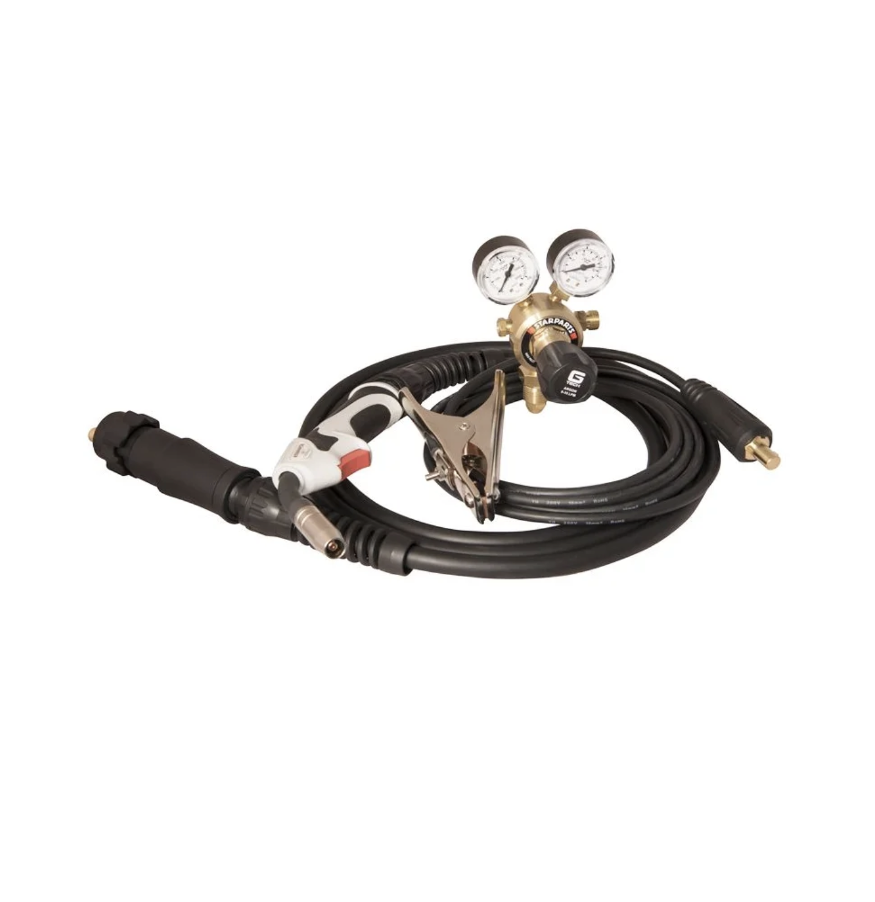

Inverter Package Includes
- MIG inverter welder
- 4 Roll Wire Feed Unit
- MIG welding torch
- Earth return lead
- Gas hose and Regulator
- (10M interconnecting cable when selected)
- Input Voltage AC 400V – 50/60 Hz
- Ieff (A) 13.2
- Input Power (kVA) 15
- Voltage Adjustment Range (V) 15 – 36
- Current Range (A) MIG 50 – 350 MMA 20 – 350
- Duty Cycle @ 40°C 350A @ 40%
- No-Load Voltage (V) 65
- Wire Speed (m/min) 1 – 16
- Efficiency (%) 85
- Power Factor 0.93
- Protection/Insulation Class IP21S/F
- Dimensions (LxWxH mm) 1020 x 505 x 1460
- Weight (Kg) 104
Weight
104
