SKU: JM-350P
5293.20 (Inc VAT)

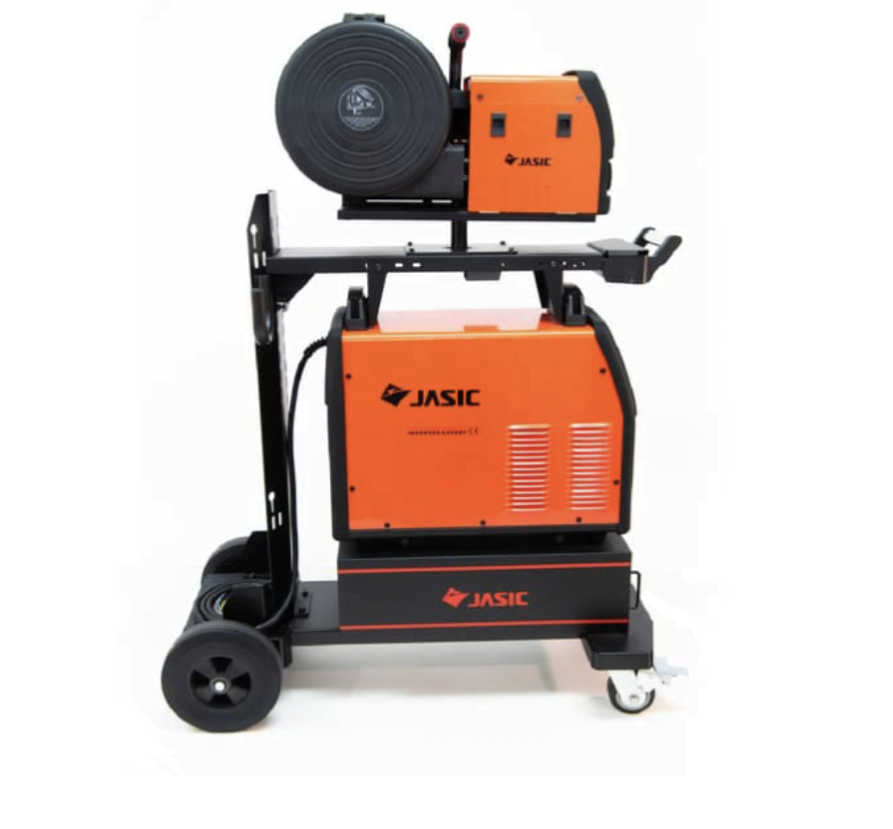

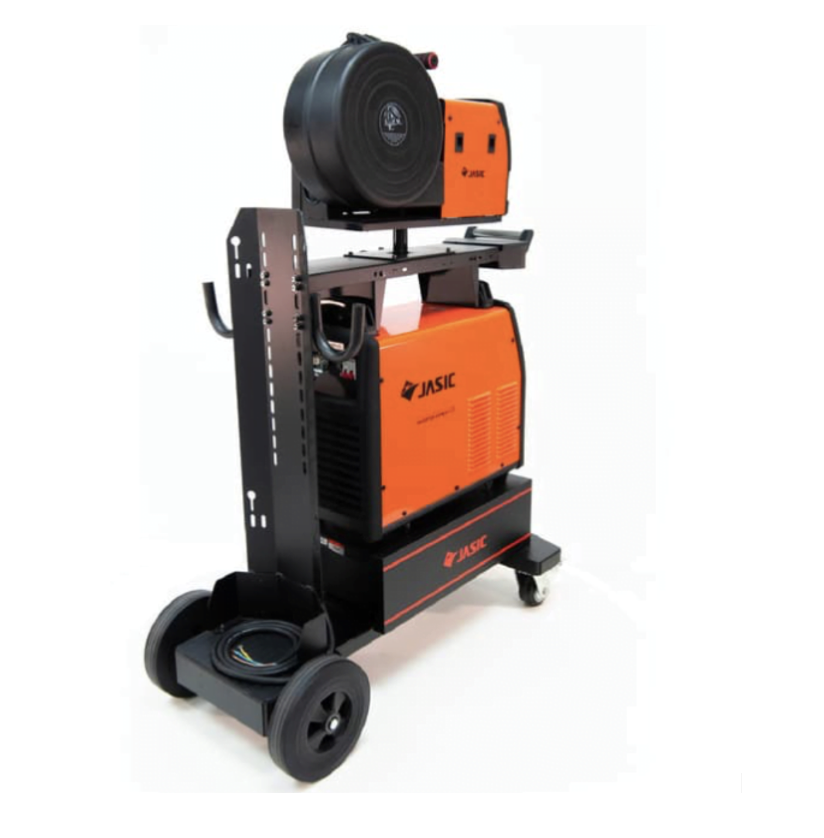

The Jasic MIG 350 pulse is equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This three-phase inverter offers syneric curvers for common materials and wires.
The machine also has self-diagnostic protection systems that provides extreme reliability.
- IGBT multi process Inverter
- Synergic MIG/MAG pulse, double pulse and DC MMA
- DSP digital technology for optimum welding performance
- 4 Roll wire feed unit
- Easy parameter settings for the operator
- Synergic curves for common materials & wires
- Self-diagnostic system
- Encoder feedback control of wire feed system
- Integrated water cooling system
- Inverter trolley takes full size gas bottle
Inverter Package Includes
- Inverter power source
- Trolley
- 4 roll wire feed unit
- 5 metre Interconnecting cable
- Water cooler
- MIG welding torch
- Work return lead and clamp
- Gas hose & regulator
- Operating Instructions.
- Input Voltage AC 415V – 50/60hz
- leff (A) 21.7
- Input Power (kVA) 20.1
- Voltage Adjustment Range (V) 17.31.5
- Current Range (A) 60 – 350
- Duty Cycle @ 40°C
- No-Load Voltage (V) 77
- Wire Speed (m/min) 1-18
- Power Factor 85
- Protection/Insulation Class IP21S/F
- Dimensions (LxWxH mm) 1020 x 505 x 1039
- Weight (kg) 117
