SKU: X5280300000
2884.80 (Inc VAT)
Side-loading wire feeder with a graphical, 5.7" TFT display panel. For synergic MIG/MAG, TIG, MMA, and gouging. Automatic parameter adjustment.
4-wheel wire feed mechanism with integrated lighting and a kinetic spool brake. Impact-resistant cabinet.
USB port connectivity. Cabinet lights and LED work lights for excellent user experience.
Embedded connectivity to WLAN, supporting the digital WPS and WeldEye ArcVision module.
Enables the use of MAX welding processes, Wise special processes, SuperSnake GTX sub feeder, and HR45 remote control.
Product code - X5280300000
Wire feed mechanism - 4-roll, single-motor
Wire feed speed - 0.5 ... 25 m/min
Gun connection - Euro
Wire spool weight, max. - 20 kg
Wire spool diameter, max. - 300 mm
Filler wires Fe 0.8 ... 2.0 mm.
Ss 0.8 ... 2.0 mm
Mc/Fc 0.8 ... 2.4 mm
Al 0.8 ... 2.4 mm

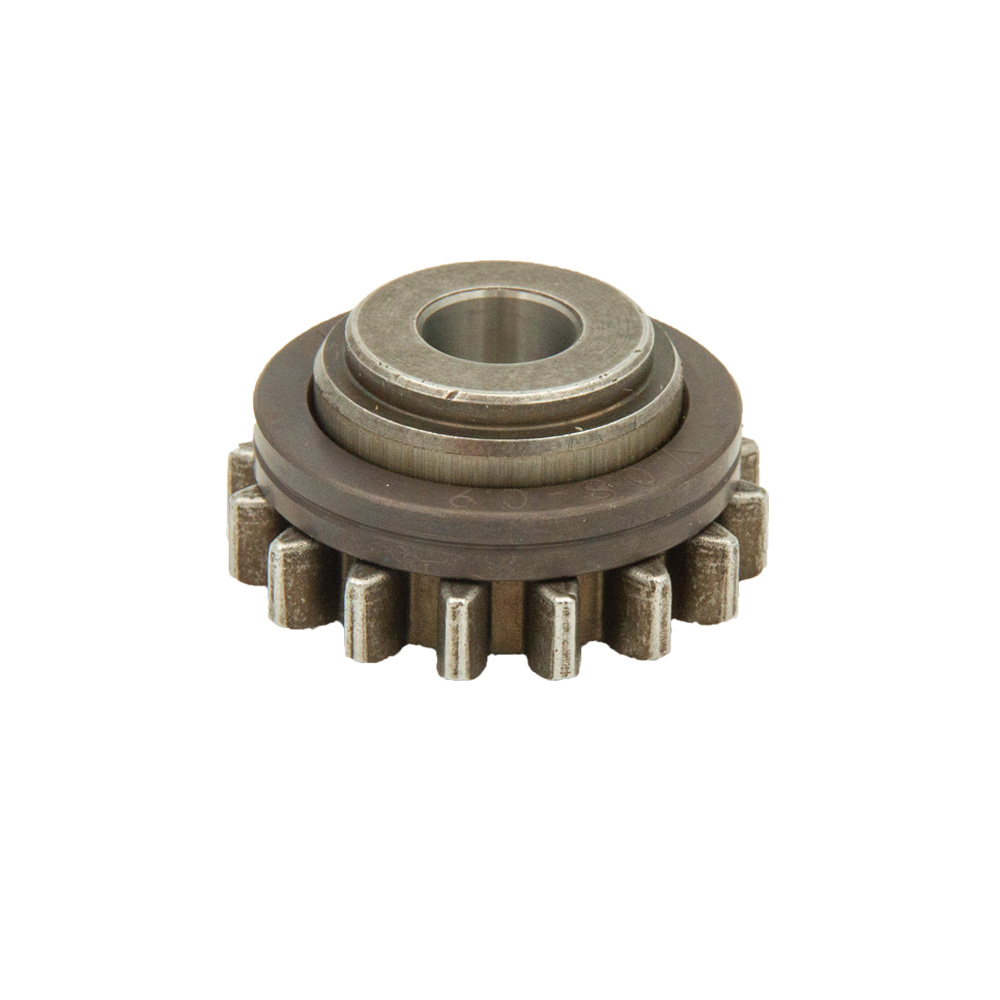

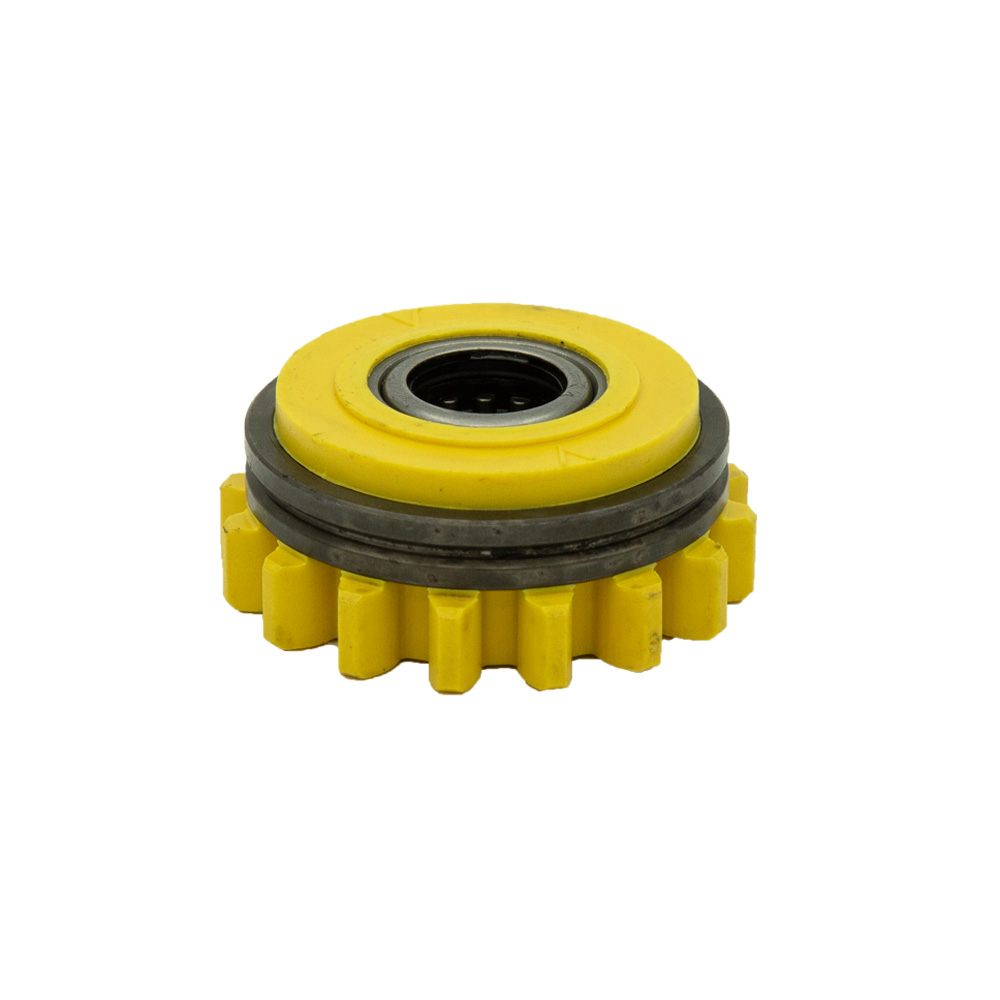

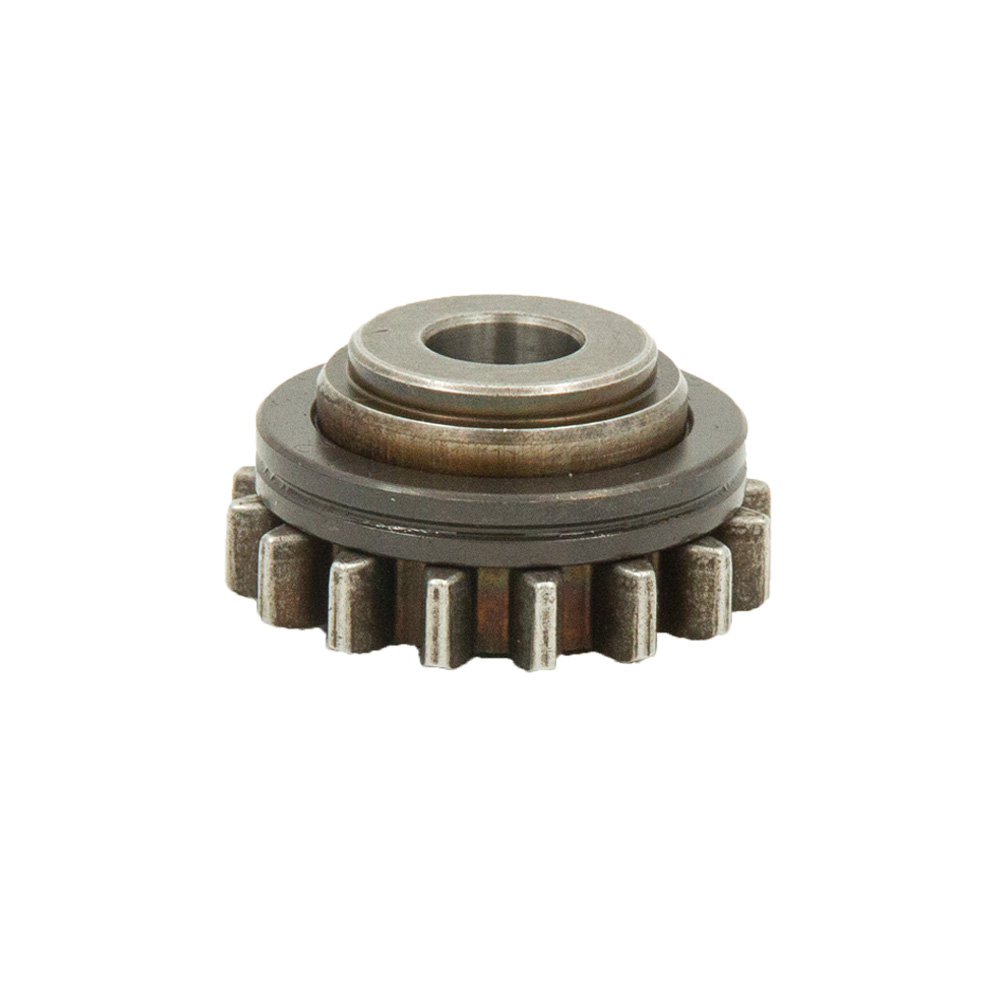

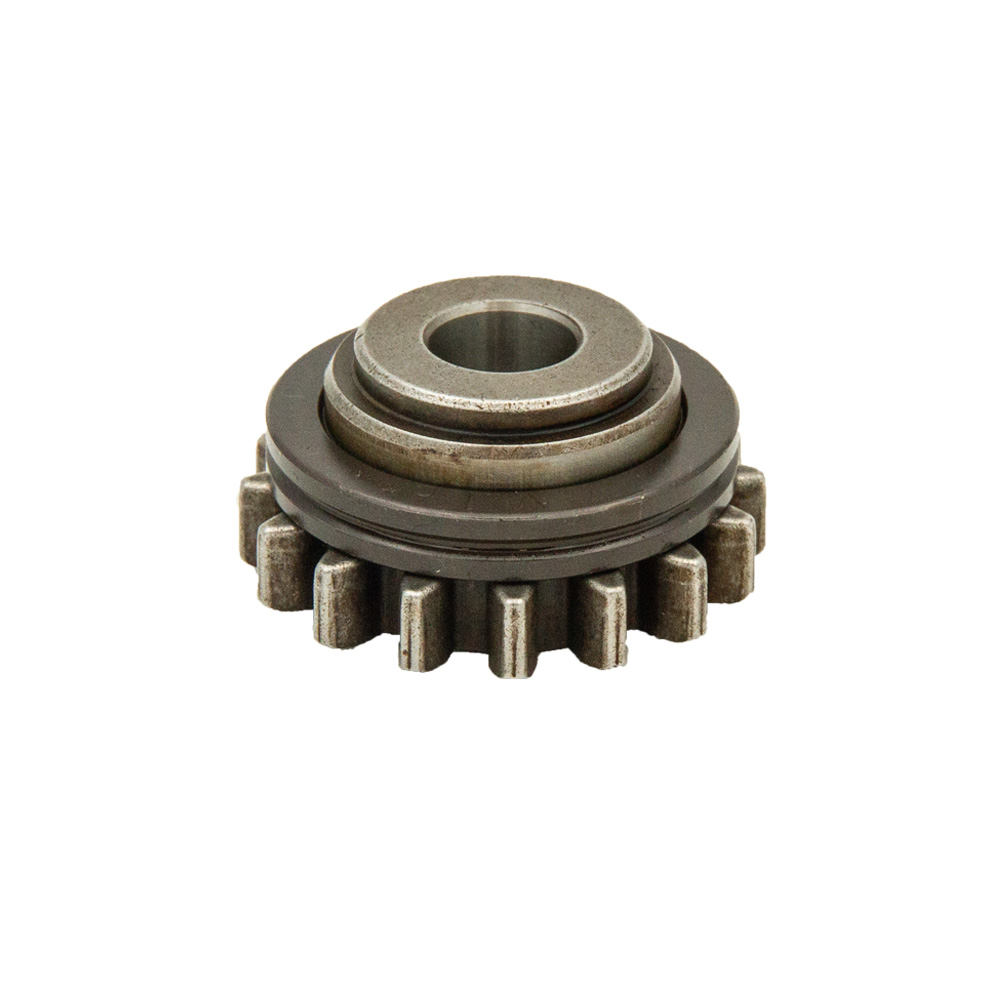

Diameter of feed rolls - 32 mm
Operating temperature range- -20...+40 °C
External dimensions LxWxH - 670 x 240 x 465 mm
Weight (no accessories) - 14.4 kg
Degree of protection - IP23S
EMC class - A
Storage temperature range - -40...+60 °C
Shielding gas pressure (max) - 0.5 MPa
Welding current, 60 % 500 A
Welding current, 100 % 430 A
Weight
15
