£6,310.00 - £6,372.00
7572.00 (Inc VAT)
RRP: £0.00
P509CGXE37598.40 (Inc VAT)
RRP: £0.00
P509CGXE47614.00 (Inc VAT)
RRP: £0.00
P510CGXE37646.40 (Inc VAT)
RRP: £0.00
P510CGXE4Designed and manufactured in Finland, Master M is a premium and compact MIG/MAG welding machine with synergic and pulse MIG welding model options. It elevates industrial welding performance, ensuring outstanding welding quality. Designed with professional welders, Master M makes everyday welding tasks effortless and fast.
Digital arc control, fast set-up techniques, and excellent power-to-weight set new standards for weld quality and work-based efficiency, boosting welding production. Choose from three class-leading models in the compact MIG welding machine category (353, 355, or 358), featuring alternative manual, synergic (Auto), and pulse (Auto Pulse) welding options. Weld with gas-cooled guns or select the optional Master M cooling system for an integrated liquid-cooled package that maximizes the 350A 40% ED welding power and enables more extended welding periods.
Experience new levels of welding productivity and control by switching on to MAX arc performance welding processes. They boost welding performance in challenging steel, stainless steel, and aluminum welding applications, making the seemingly impossible possible.
The integrated and self-charging LED work lights improve worksite safety, efficiency, and convenience. The LED light source operates with or without mains power, enhancing productivity in low-light conditions. The LED work light system is standard for all Master M compact MIG welder models.
Integrated digital connectivity opens a world of welding data through Master M, including three months free trial for WeldEye welding management software's ArcVision module, plus a digital WPS (dWPS) feature. Together, these welding quality management tools deliver the benefits of digital transformation to the very heart of the welding workplace.
Red Dot Product Design Award winner 2023.
- Mains connection voltage 380...460 V ±10 %
- Mains connection voltage (MV low range) 220...230 V ±10 %
- Mains connection phases 3~50/60 Hz
- Mains connection cable type H07RN-F
- Mains connection cable size 4 mm²
- Maximum supply current [I1max] 21.1 ... 17.1 A
- Effective supply current [I1eff] 13.3 ... 10.8 A
- Rated maximum input power [S1max] 14 kVA
- Mains fuse 16 A
- Mains fuse (@MV low range) 32 A
- Idle state power consumption [P1idle] 20 W
- No-load state power consumption (MMA), power save 20 W
- No-load state power consumption (MMA), fans ON 120 W
- No-load voltage [U0] 55 ... 69 V
- No-load voltage (@MV low range) [U0] 54 ... 56 V
- Open circuit voltage [Uav] 53 ... 64 V
- Output, duty cycle % at rated max. current, MIG 40 %
- Output at +40 °C, rated max current, MIG 350 A
- Output at +40 °C, 60% MIG 280 A
- Output at +40 °C, 100% MIG 220 A
- Output at +40 °C, rated max current, MIG (@MV low range) 300 A
- Output at +40 °C, 60% MIG (@MV low range) 240 A
- Output at +40 °C, 100% MIG (@MV low range) 190 A
- Output range, MIG 15 A / 10 V ... 350 A / 45 V
- Output range, TIG 15 A / 1 V ... 350 A / 45 V
- Output range, MMA 15 A / 10 V ... 330 A / 45 V
- Output range, MIG (@MV low range) 15 A / 10 V ... 300 A / 40 V
- Output range, TIG (@MV low range) 15 A / 1 V ... 300 A / 40 V 7
- Output range, MMA (@MV low range) 15 A / 10 V ... 280 A / 40 V
- Voltage adjustment range, MIG 10 ... 40 V - VRD voltage 24 V
- Power factor at rated maximum current [λ] 0.91
- Efficiency at rated maximum current [η] 87 %
- EMC class A
- Minimum short-circuit power of supply network [Ssc] 2.4 MVA
- Voltage supply for auxiliary devices 12 V
- Voltage supply for cooling unit 24 V, 380...460 V
- Voltage supply for cooling unit (MV low range) 220...230 V, 24 V
- Welding connection type Euro
- Wire feed mechanism 4-roll, Single-motor
- Diameter of feed rolls 32 mm
- Filler wire diameter, Fe 0.8 ... 1.2 mm
- Filler wire diameter, Ss 0.8 ... 1.2 mm
- Filler wire diameter, MC/FC 0.8 ... 1.2 mm
- Filler wire diameter, Al 0.8 ... 1.2 mm
- Wire feed speed 0.5 ... 25 m/min
- Maximum wire spool weight 20 kg
- Maximum wire spool diameter 300 mm
- Maximum shielding gas pressure 0.5 MPa
- Control panel, model Master M 358 Panel APC
- Control panel, display 5.7" LCD
- Control panel, controls 2 control knobs, Push buttons
- Control panel, type of installation Built-in
- Control panel, input voltage (DC) 12 V
- Wired communication type CAN bus
- Wireless communication type WUBT-236ACN(BT)
- Bluetooth type 4.2 (LE)
- Transmitter frequency and power, Bluetooth 2.4 GHz; 4 dBm
- WLAN type IEEE 802.11 ac/a/b/g/n
- Transmitter frequency and power, WLAN 2.4 GHz: 2.412...2.484 GHz; 5.1 GHz: 5.150...5.240 GHz, 5.250...5.350 GHz, 5.470...5.725 GHz; 9...16 dBm
- Operating temperature -20 ... 40 °C
- Storage temperature -40 ... 60 °C
- Recommended minimum generator power [Sgen] 20 kVA
- LED battery type and voltage SAMSUNG SDI (INR18650-26J; 3,6 V; 2600 mAh); LG CHEM (ICR18650HE4; 3,6 V; 2500 mAh)
- Degree of protection (fully installed) IP23S
- External dimensions, length 602 mm
- External dimensions, width 298 mm
- External dimensions, height 447 mm
- Weight without accessories 27 kg
- Standards IEC 60974-1, -10

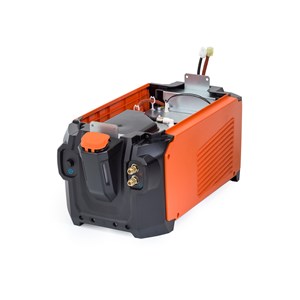

COOLER TECH DATA
- Supply voltage 380...460 V ±10 %
- Supply voltage (MV low range) 220...230 V ±10 %
- EMC class A
- Tank volume 3 l
- Cooling power at 1 l/min 1 kW
- Maximum coolant pressure 4 Bar
- Recommended coolant Kemppi MGP 4456
- Degree of protection (fully installed) IP23S
- External dimensions, length 635 mm
- External dimensions, width 305 mm
- External dimensions, height 292 mm
- Weight without accessories 14.9 kg
- Standards IEC 60974-2, -10
