P502CGXE4EXTEND MIG WELDING EXPERIENCE
Designed and manufactured in Finland, Master M is a premium and compact MIG/MAG welding machine with synergic and pulse MIG welding model options. It elevates industrial welding performance, ensuring outstanding welding quality. Designed with professional welders, Master M makes everyday welding tasks effortless and fast.
Digital arc control, fast set-up techniques, and excellent power-to-weight set new standards for weld quality and work-based efficiency, boosting welding production. Choose from three class-leading models in the compact MIG welding machine category (353, 355, or 358), featuring alternative manual, synergic (Auto), and pulse (Auto Pulse) welding options. Weld with gas-cooled guns or select the optional Master M cooling system for an integrated liquid-cooled package that maximizes the 350A 40% ED welding power and enables more extended welding periods.
Experience new levels of welding productivity and control by switching on to MAX arc performance welding processes. They boost welding performance in challenging steel, stainless steel, and aluminum welding applications, making the seemingly impossible possible.
The integrated and self-charging LED work lights improve worksite safety, efficiency, and convenience. The LED light source operates with or without mains power, enhancing productivity in low-light conditions. The LED work light system is standard for all Master M compact MIG welder models.
Integrated digital connectivity opens a world of welding data through Master M, including three months free trial for WeldEye welding management software's ArcVision module, plus a digital WPS (dWPS) feature. Together, these welding quality management tools deliver the benefits of digital transformation to the very heart of the welding workplace.
Red Dot Product Design Award winner 2023.
MASTER M 353 WATER COOLED
- Mains connection voltage 380...460 V ±10 %
- Mains connection phases 3~50/60 Hz
- Mains connection cable type H07RN-F
- Mains connection cable size 4 mm²
- Maximum supply current [I1max] 21.3 ... 17.1 A
- Effective supply current [I1eff] 13.5 ... 10.8 A
- Rated maximum input power [S1max] 14 kVA
- Mains fuse 16 A
- Idle state power consumption [P1idle] 18 W
- No-load state power consumption (MMA), power save 18 W
- No-load state power consumption (MMA), fans ON 119 W
- No-load voltage [U0] 55 ... 69 V
- Open circuit voltage [Uav] 53 ... 64 V
- Output, duty cycle % at rated max. current, MIG 40 %
- Output at +40 °C, rated max current, MIG 350 A
- Output at +40 °C, 60% MIG 280 A
- Output at +40 °C, 100% MIG 220 A
- Output range, MIG 15 A / 10 V ... 350 A / 45 V
- Output range, TIG 15 A / 1 V ... 350 A / 45 V
- Output range, MMA 15 A / 10 V ... 330 A / 45 V
- Voltage adjustment range, MIG 10 ... 40 V
- VRD voltage 24 V
- Power factor at rated maximum current [λ] 0.91
- Efficiency at rated maximum current [η] 87 % - EMC class A
- Minimum short-circuit power of supply network [Ssc] 2.4 MVA
- Voltage supply for auxiliary devices 12 V
- Voltage supply for cooling unit 24 V, 380...460 V
- Welding connection type Euro
- Wire feed mechanism 4-roll, Single-motor
- Diameter of feed rolls 32 mm
- Filler wire diameter, Fe 0.8 ... 1.2 mm
- Filler wire diameter, Ss 0.8 ... 1.2 mm
- Filler wire diameter, MC/FC 0.8 ... 1.2 mm
- Filler wire diameter, Al 0.8 ... 1.2 mm
- Wire feed speed 0.5 ... 25 m/min
- Maximum wire spool weight 20 kg
- Maximum wire spool diameter 300 mm
- Maximum shielding gas pressure 0.5 MPa
- Control panel, model Custom LCD
- Control panel, display Color LCD
- Control panel, controls 2 control knobs, Push buttons
- Control panel, type of installation Built-in
- Control panel, input voltage (DC) 12 V
- Wired communication type CAN bus
- Operating temperature -20 ... 40 °C
- Storage temperature -40 ... 60 °C
- Recommended minimum generator power [Sgen] 20 kVA
- LED battery type and voltage SAMSUNG SDI (INR18650-26J; 3,6 V; 2600 mAh); LG CHEM (ICR18650HE4; 3,6 V; 2500 mAh)
- Degree of protection (fully installed) IP23S
- External dimensions, length 602 mm
- External dimensions, width 298 mm
- External dimensions, height 447 mm
- Weight without accessories 27 kg
- Standards IEC 60974-1, -10

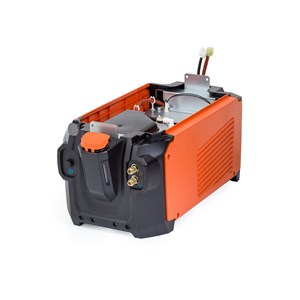

COOLER
- Supply voltage 380...460 V ±10 %
- EMC class A
- Tank volume 3 l
- Cooling power at 1 l/min 1 kW
- Maximum coolant pressure 4 Bar
- Recommended coolant Kemppi MGP 4456
- Degree of protection (fully installed) IP23S
- External dimensions, length 635 mm
- External dimensions, width 305 mm
- External dimensions, height 292 mm
- Weight without accessories 14.9 kg
- Standards IEC 60974-2, -10
