P526CGXE3The Master M 205 and the Master M 323 set new standards for power and performance in a portable MIG welding machine. With a portable, lightweight design that's easy to carry, you'll enjoy having a portable MIG welder that can be moved wherever you need it. If you're working in tight spaces, the 5" LCD screen is bright and easy to read, while self-charging LED lights can be turned on to improve safety. They work with or without mains power.
The Master M 205 and Master M 323 are also easy to use. Both portable MIG welding machines come with Weld Assist, which offers automatic parameter settings that help you start welding quickly. It's a simple solution that welders can also use with minimal experience. Just select the material thickness, joint type, welding position, and start welding.
The Master M 205 is a portable pulse MIG welder with 200 amps of power at a 40% duty cycle. Take on a wider range of materials with pulse welding and do your best work anywhere with the convenience of a 1-phase power supply. Save time and take welding to the next level with 37 built-in MIG/MAG welding programs for Fe, Ss, AlMg5, AlSi5, CuSi3, and CuAl8 filler materials.
The Master M 205 comes with 17 programs for pulse MIG and 20 programs for 1-MIG. The Master M 323 is a high-performance portable MIG welding machine that delivers 320 amps of power at a 40% duty cycle. It's a portable and light small MIG welder ready for big jobs anywhere on site. Improve welding quality and save time with 28 built-in welding programs for Fe, Ss, AlMg5, AlSi5, CuSi3, CuAl8, and FC-CrNiMo filler materials. In addition, the Master M 323 portable MIG welder includes 4 welding programs for the MAX Cool arc welding process.
If you're looking for a portable MIG welder that can complete high-quality welds in challenging environments, the Master M 205 and Master M 323 should be on top of your list.
*PLEASE NOTE: THIS MACHINE REQUIRES A FEED ROLL KIT*
Cooling unit for easy, fast, and convenient coolant filling with integrated LED lighting for cooling liquid levels.
- Mains connection voltage 220...240 V ±10 %
- Mains connection voltage (MV low range) 110...130 V ±10 %
- Mains connection phases 1~50/60 Hz
- Mains connection cable type H07RN-F
- Mains connection cable size 2.5 mm²
- Maximum supply current (@MV low range) [I1max] 28 ... 23 A
- Rated maximum input power [S1max] 6 kVA
- Mains fuse 16 A
- Mains fuse (@MV low range) 16 A
- Idle state power consumption [P1idle] 17 W
- No-load state power consumption (MMA), power save 17 W
- No-load state power consumption (MMA), fans ON 120 W
- Output, duty cycle % at rated max. current, MIG 40 %
- Output at +40 °C, rated max current, MIG 200 A
- Output at +40 °C, 60% MIG 170 A
- Output at +40 °C, 100% MIG 140 A
- Output, duty cycle % at rated max. current, MIG (@MV low range) 30 %
- Output at +40 °C, rated max current, MIG (@MV low range) 120 A
- Output at +40 °C, 60% MIG (@MV low range) 95 A
- Output at +40 °C, 100% MIG (@MV low range) 75 A
- Output range, MIG 15 A / 10 V ... 200 A / 28 V
- Output range, TIG 15 A / 1 V ... 200 A / 28 V
- Output range, MMA 15 A / 10 V ... 175 A / 31 V
- Output range, MIG (@MV low range) 15 A / 10 V ... 120 A / 21 V
- Output range, TIG (@MV low range) 15 A / 1 V ... 120 A / 21 V
- Output range, MMA (@MV low range) 15 A / 10 V ... 100 A / 24 V
- Voltage adjustment range, MIG 10 ... 32 V
- VRD voltage 24 V
- Power factor at rated maximum current [λ] 0.99
- Efficiency at rated maximum current [η] 84 %
- EMC class A
- Voltage supply for cooling unit 220...240 V, 24 V
- Welding connection type Euro
- Wire feed mechanism Single-motor, 2-roll
- Diameter of feed rolls 32 mm
- Filler wire diameter, Fe 0.8 ... 1 mm
- Filler wire diameter, Ss 0.8 ... 1 mm
- Filler wire diameter, Al 0.8 ... 1.2 mm
- Wire feed speed 0.5 ... 25 m/min
- Maximum wire spool weight 5 kg
- Maximum wire spool diameter 200 mm
- Maximum shielding gas pressure 0.5 MPa
- Control panel, model Custom LCD
- Control panel, display Color LCD
- Control panel, controls 2 control knobs, Push buttons
- Control panel, type of installation Built-in
- Control panel, input voltage (DC) 12 V
- Operating temperature -20 ... 40 °C -Storage temperature -40 ... 60 °C -
- Recommended minimum generator power [Sgen] 15 kVA
- LED battery type and voltage SAMSUNG SDI (INR18650-26J; 3,6 V; 2600 mAh); LG CHEM (ICR18650HE4; 3,6 V; 2500 mAh)
- Degree of protection (fully installed) IP23S
- External dimensions, length 520 mm
- External dimensions, width 250 mm
- External dimensions, height 379 mm
- Weight without accessories 16.2 kg
- Standards IEC 60974-1, -10

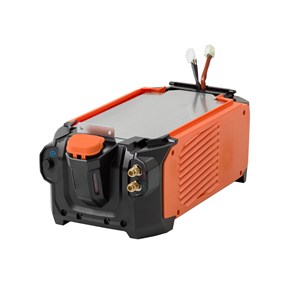

TECHNICAL DATA MSMC05M COOLER
- Supply voltage 380...460 V ±10 %
- Supply voltage (MV low range) 220...230 V ±10 %
- EMC class A
- Tank volume 2.3 l
- Cooling power at 1 l/min 0.5 kW
- Maximum coolant pressure 4 Bar
- Recommended coolant Kemppi MGP 4456
- Degree of protection (fully installed) IP23S
- External dimensions, length 555 mm
- External dimensions, width 253 mm
- External dimensions, height 215 mm
-Weight without accessories 11.5 kg
- Standards IEC 60974-2, -10
