SKU: JM-352C
2014.80 (Inc VAT)

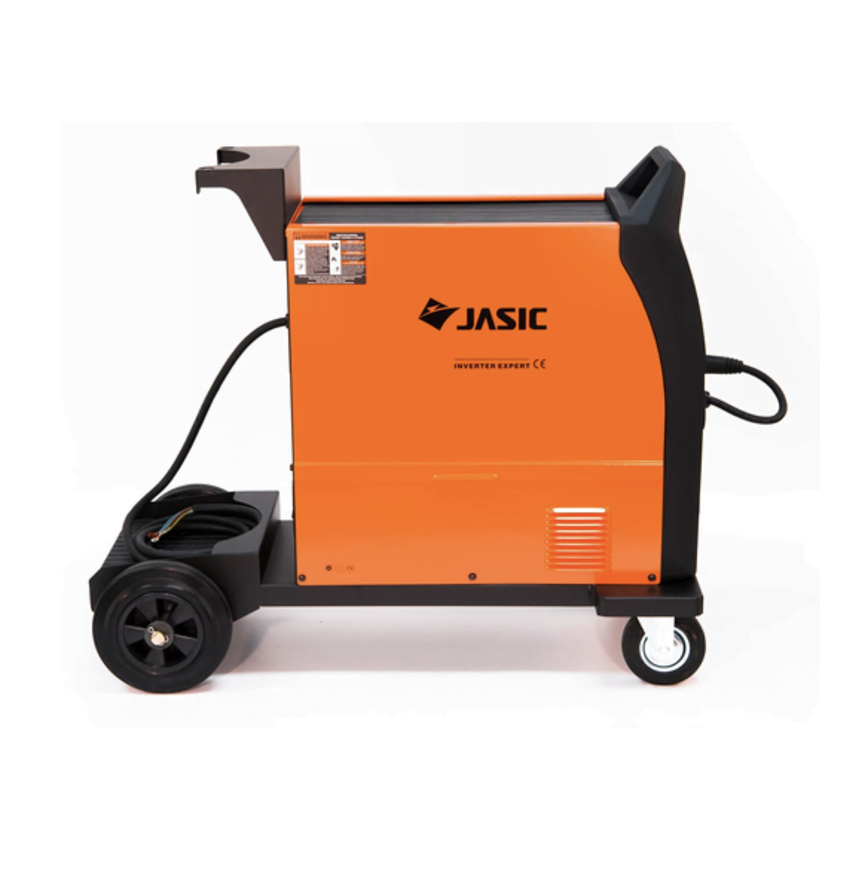

The all-new Jasic MIG 350 Compact inverter welder is equipped with powerful IGBT components, a digital A/V display and multi process capabilities. The MIG inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles. This high quality three-phase welder delivers an impressive 350 amps at 40% duty cycle, making the MIG 350 an excellent choice for medium duty fabrication work.
- Multi function compact MIG MAG /MMA/Lift TIG
- Suitable for flux cored wires
- Advanced control circuitry
- IGBT inverter welder

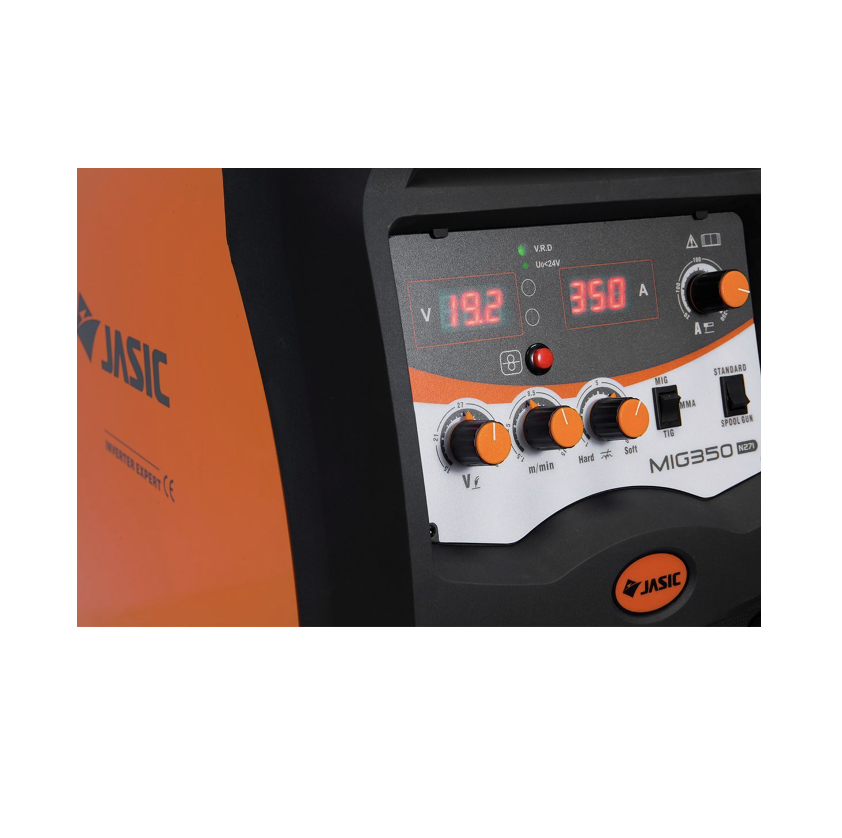

- Digital A/V display
- Closed loop feedback control
- 4 Roll wire feed drive
- High duty cycle
- Suitable for 0.8/1.0/1.2mm MIG wires
- Stable and reliable arc with minimal spatter
- Burn back control
- Spool Gun interface
- Wire inching feature
- VRD on MMA setting
Inverter Package Includes

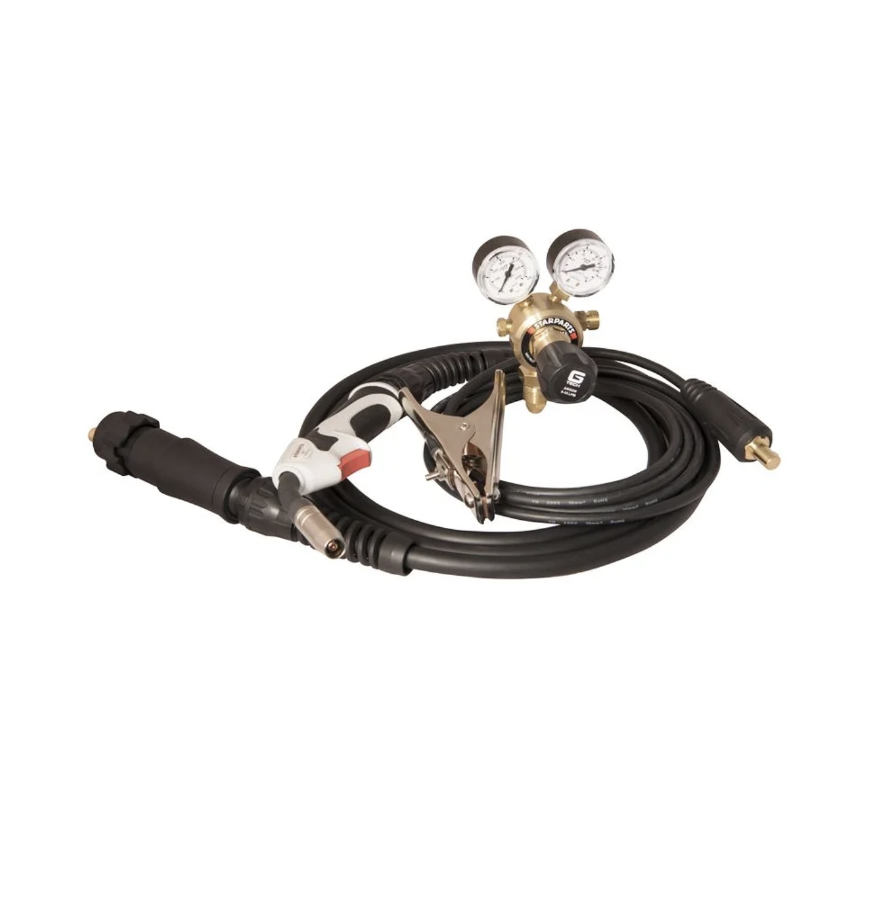

Inverter power source, MIG welding torch, Earth return lead, Gas hose and Regulator.
- Input Voltage AC 400V – 50/60 Hz
- Ieff (A) 13.7
- Input Power (kVA) 15
- Voltage Adjustment Range (V) 15 – 38
- Current Range (A) 50 – 350
- Duty Cycle @ 40°C 350A @ 40%
- No-Load Voltage (V) 62 (19V – VRD)
- Wire Spool Size ø 300mm
- Efficiency (%) 85
- Power Factor 0.93
- Protection/Insulation Class IP21S/F
- Dimensions (LxWxH mm) 900 x 450 x 755
- Weight (Kg) 52
Weight
54
