SKU: ZXJEV-200DP
1950.00 (Inc VAT)
Features:
• Single and double pulse synergic MIG
• High frequency LIFT DC pulse TIG
• Hard Core MIG Torch with 4 button digital control
• MMA mode

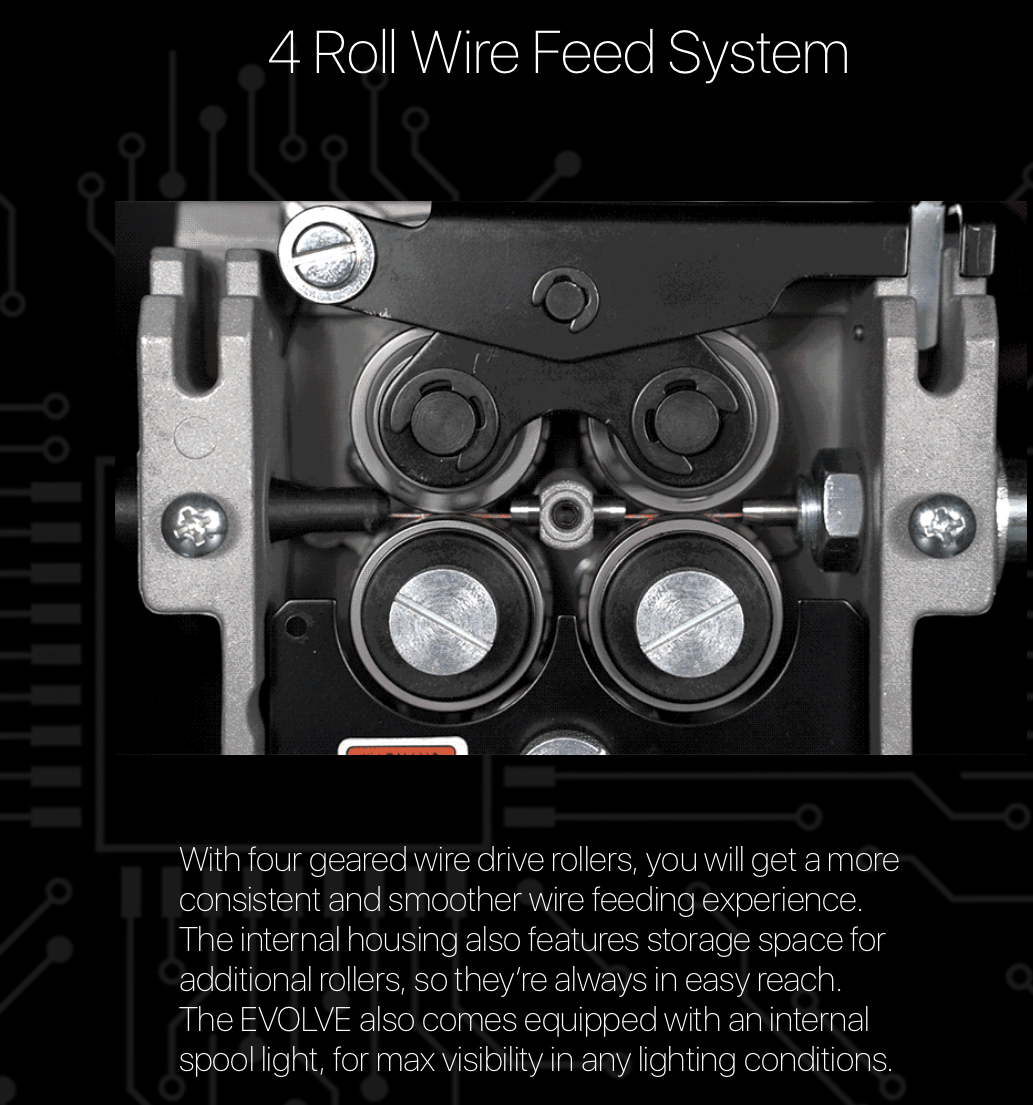

• 4 roll wire feeder

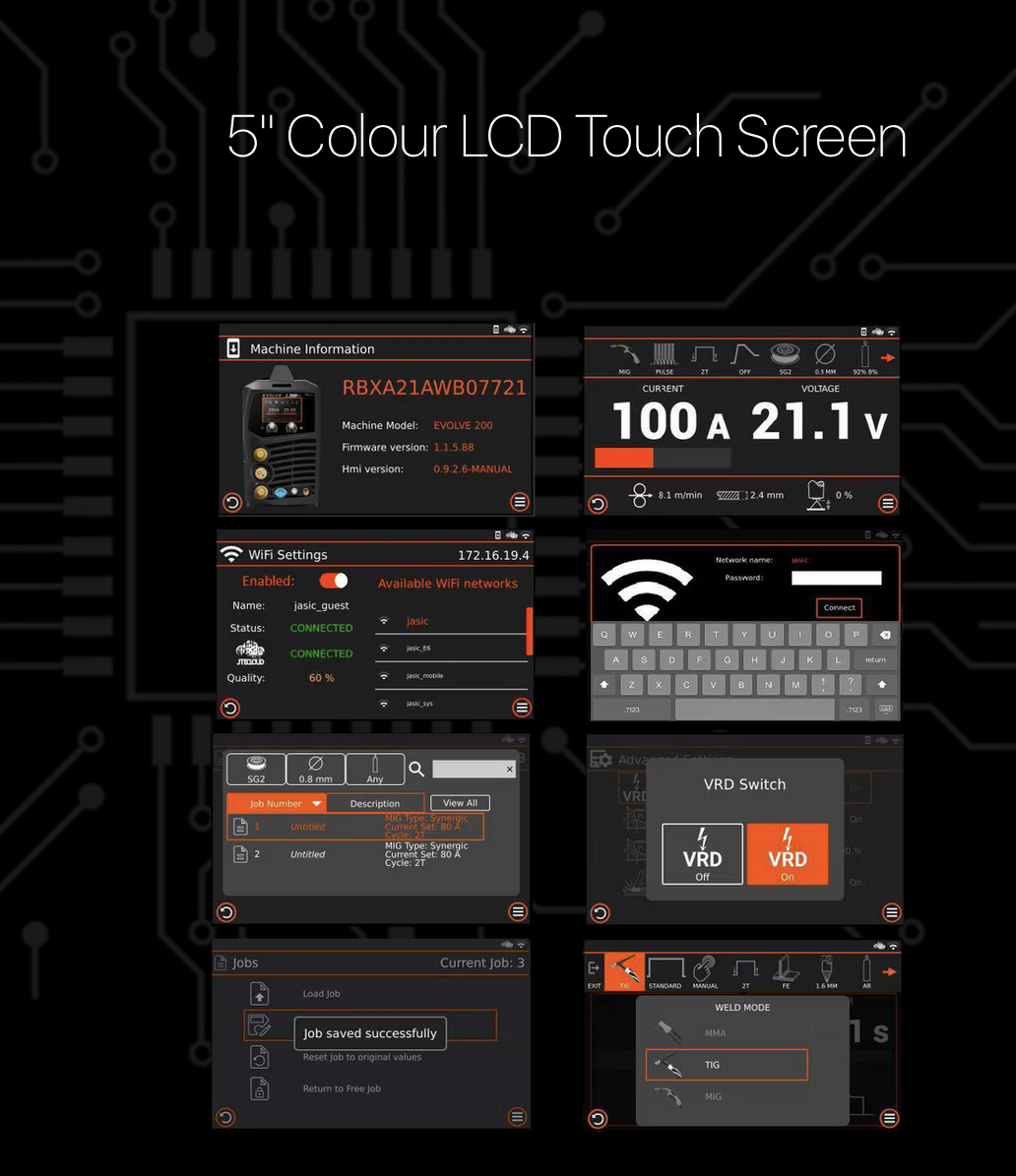

• Wi-Fi enabled firmware updates
• App control

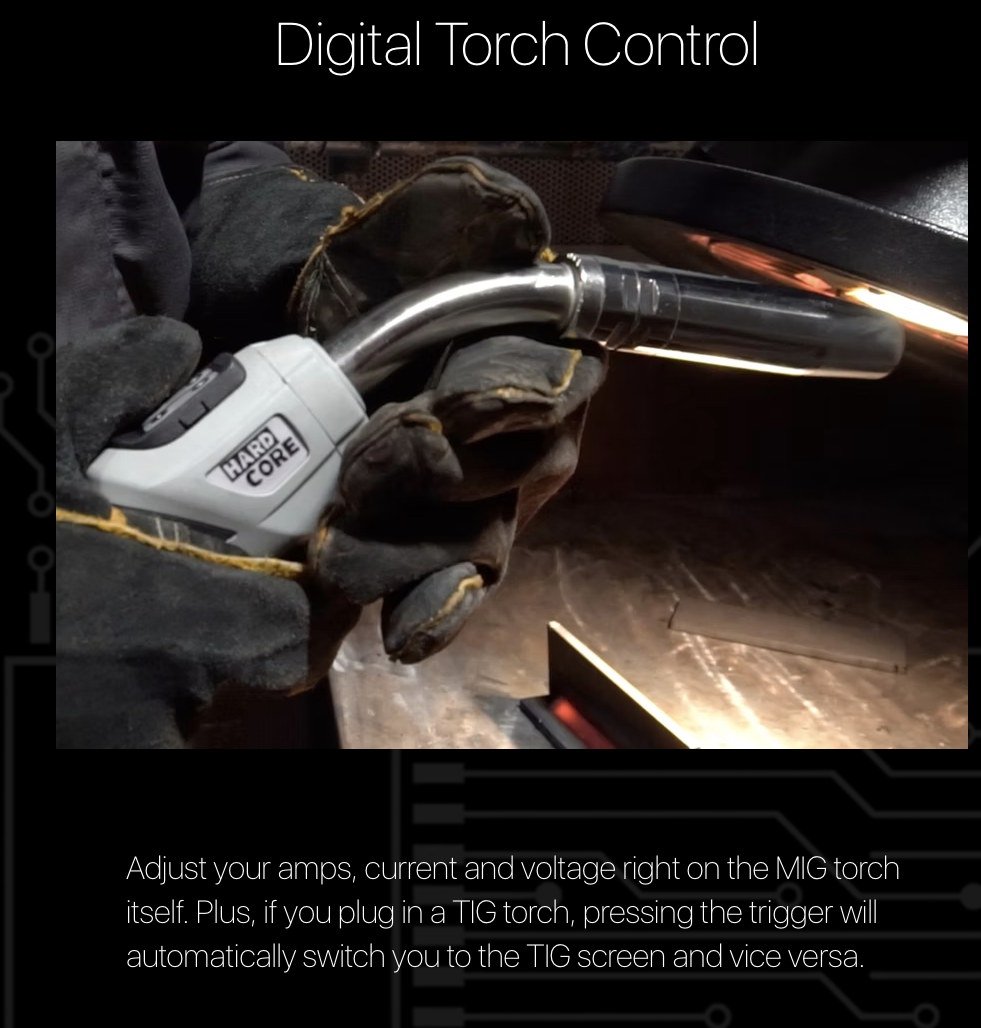

• Digital control MIG torch
• 100+ synergic programs
• 100 job memory storage

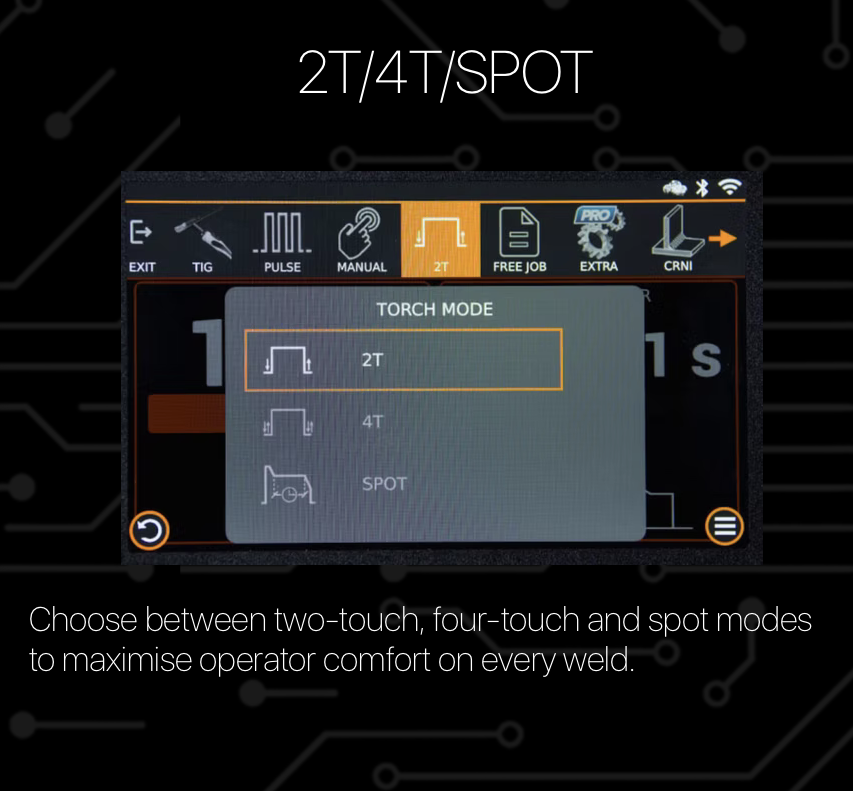

• 2T/4T Spot trigger control
• IP23S
• On demand cooling
• ABAP: Active Balancing Air Passage
• Fan on demand
• Ideally suited for light industrial fabrication work
• Generator friendly * must have AVR
COMPLETE WITH MIG Torch (4 Button Control) 4m, Regulator, Hose & Earth Lead
Input Voltage 1ph 230Vac +/-15% 50/60Hz
Ieff (A) 15.9
No Load Voltage 77V
Idle State Power <50W
Current Range MIG 40-200A TIG 5-200A MMA 20-180A
Duty Cycle @ 40oC MIG 25% @ 200A 60% @ 101A 100% @ 78A TIG 25% @ 200A 60% @ 116A 100% @ 70A MMA 25% @ 180A 60% @ 91A 100% @ 70A
Wire Size Range 0.6-1.2mm
Wire Spool Size D200/5KG
Protection/Insulation Class IP23S/H
Minimum Generator (kVA)* 11.0
Dimensions ( L x W x H mm) 605 x 230 x 400
Weight (Kg) 17
