SKU: SW200DC
2620.80 (Inc VAT)

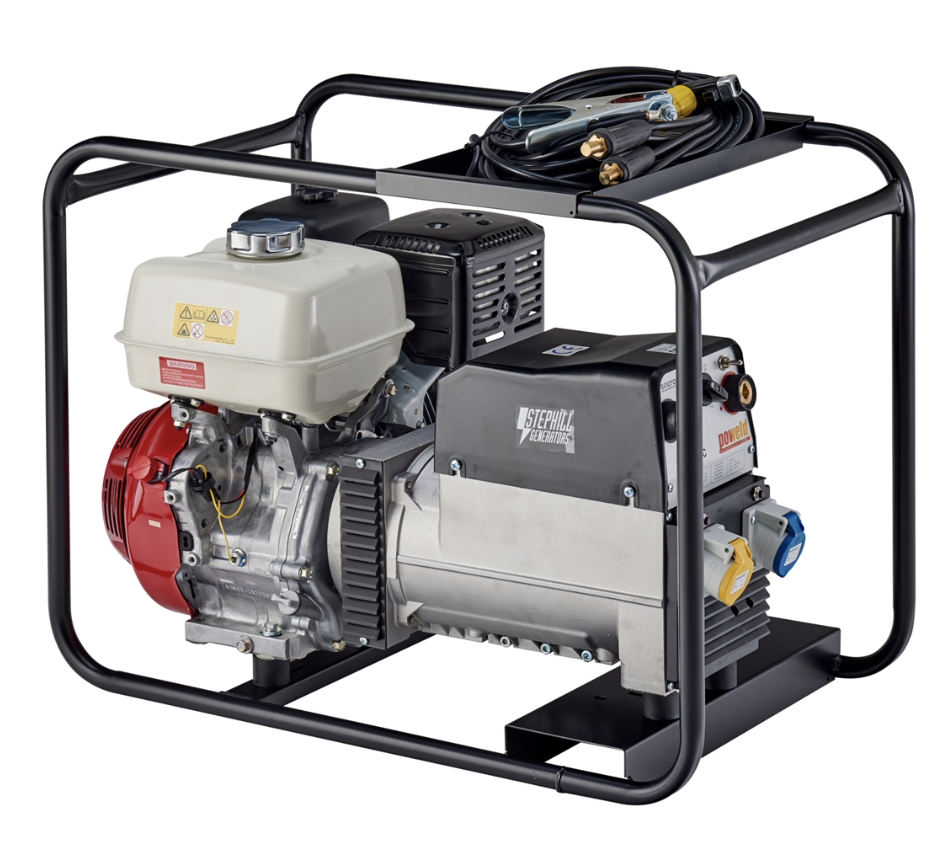

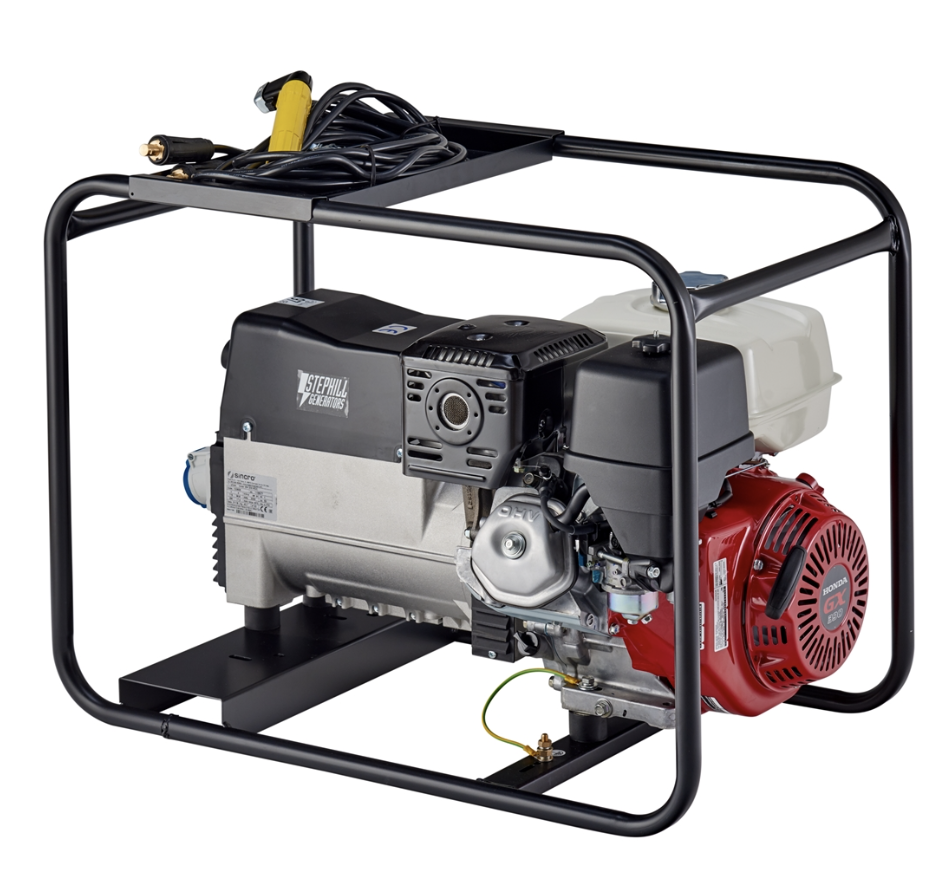

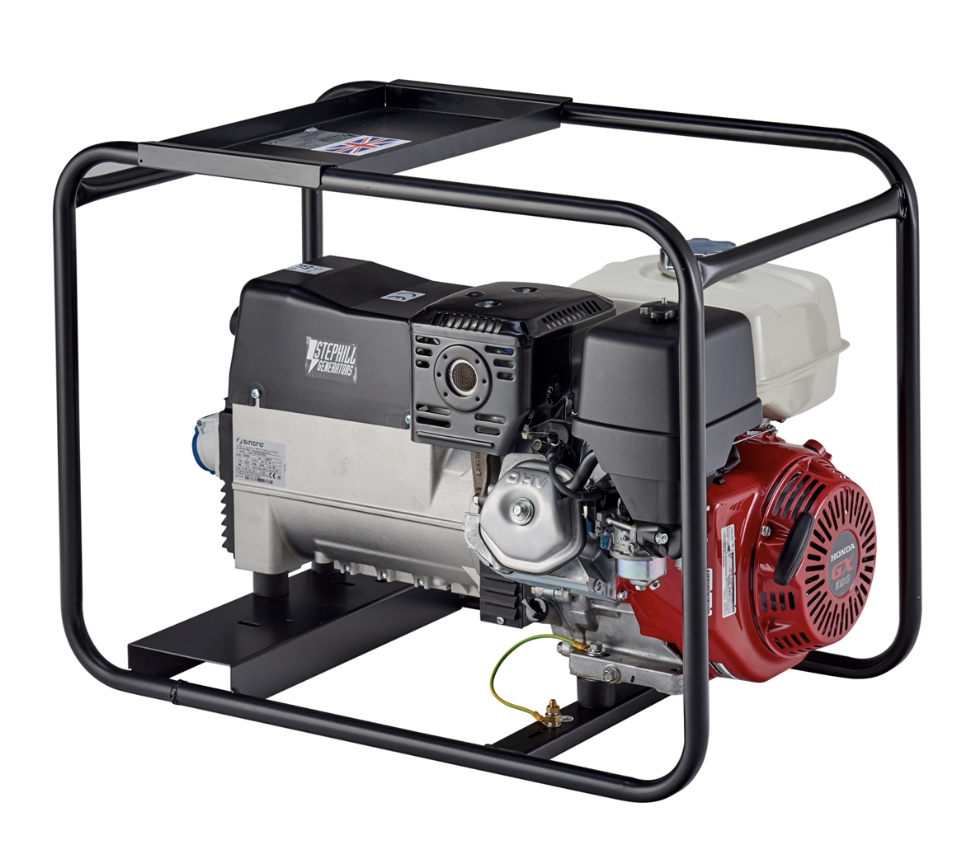

STEPHILL 200AMP DC WELDER PETROL GENERATOR - Versatile and rugged portable DC welding generator with 1ph, 230/110v auxiliary outputs for power tools, lighting etc.
STANDARD FEATURES:
• Oil alert/low oil shutdown.
• 3 Year engine warranty (Limited).
• Full wrap-around frame.
• Convenient tray for rods & leads.
• Amp value fine tuning for precise welding.
CONTROL BOX:
• 2 x DIN 32 welding sockets.
• Amp range selector switch.
• Variable rated Amp value switch.
• 115V: 1 x 16A BS4343 sockets.
• 230V: 1 x 16A BS4343 sockets.
• Reset circuit breaker overload protection.
DIMENSIONS (MM)
LENGTH - 815
WIDTH - 480
HEIGHT - 620
WEIGHT (KG) - 86
WELDING GENERATOR SPECIFICATION:
| Welding Output | 200 Amps AC |
| Welding Current | 50 - 200A & 120 - 200 A |
| Strike Voltage | 75V |
| Welding Voltage | 22 - 28V |
| Duty Cycle | 35% - 200A / 60% - 170A |
| Rod Size (MAX) | 4mm |
| Generator Voltage | 230/115 |
| Phase | 1 |
| Frequency | 50Hz |
| Auxiliary Output |
240V @ 4.0kVA / 3.2kW 115V @ 4.0kVA / 3.2kW |
| Alternator | Sincere EW200DC |
| Alternator type | Brushed - self regulated |
| Fuel tank capacity | 6.1 litres |
| Autonomy 75% load | 2.2 hours |
| LWA | 97 |
| DBA @ 7M | 72 |
ENGINE SPECIFICATION:
| Engine | Honda GX390 |
| Emissions certified | EU Stage V |
| Cylinders | Single |
| Distribution | O.H.V. |
| Aspiration | Naturally aspirated |
| Cooling | Air |
| Displacement | 389cm3 |
| Rpm | 3000 |
| Starting System | Recoil |
| Fuel | Unleaded 86 octane or higher |
Weight
86
