SKU: SW200AC
2392.80 (Inc VAT)

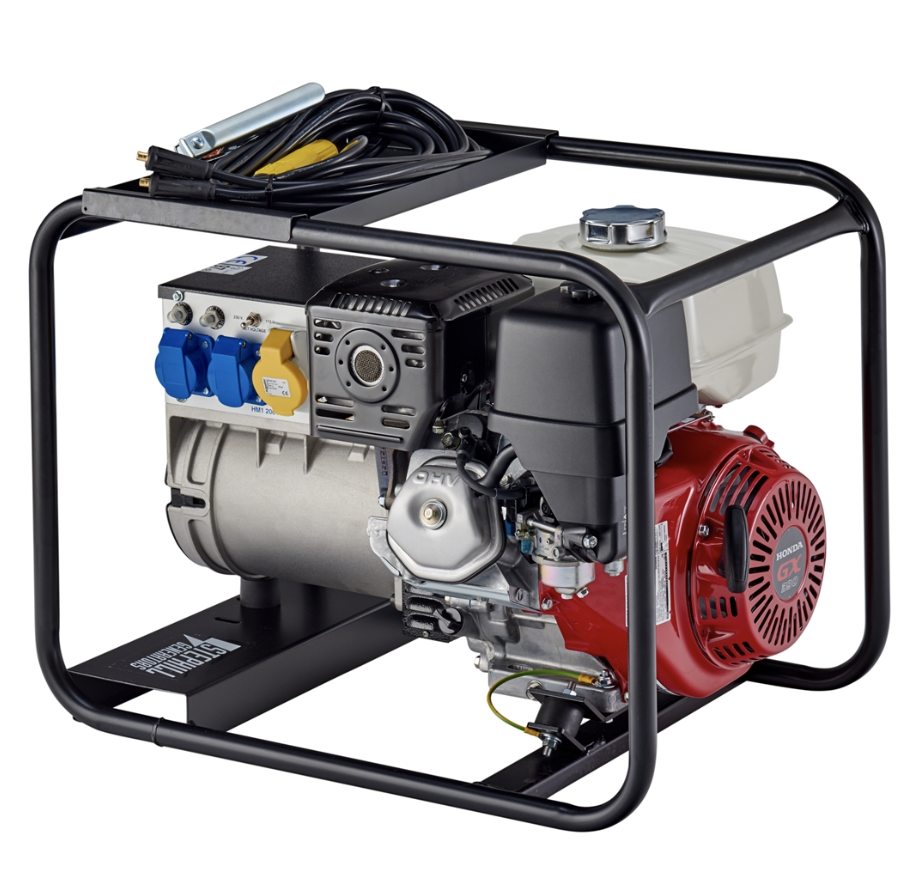

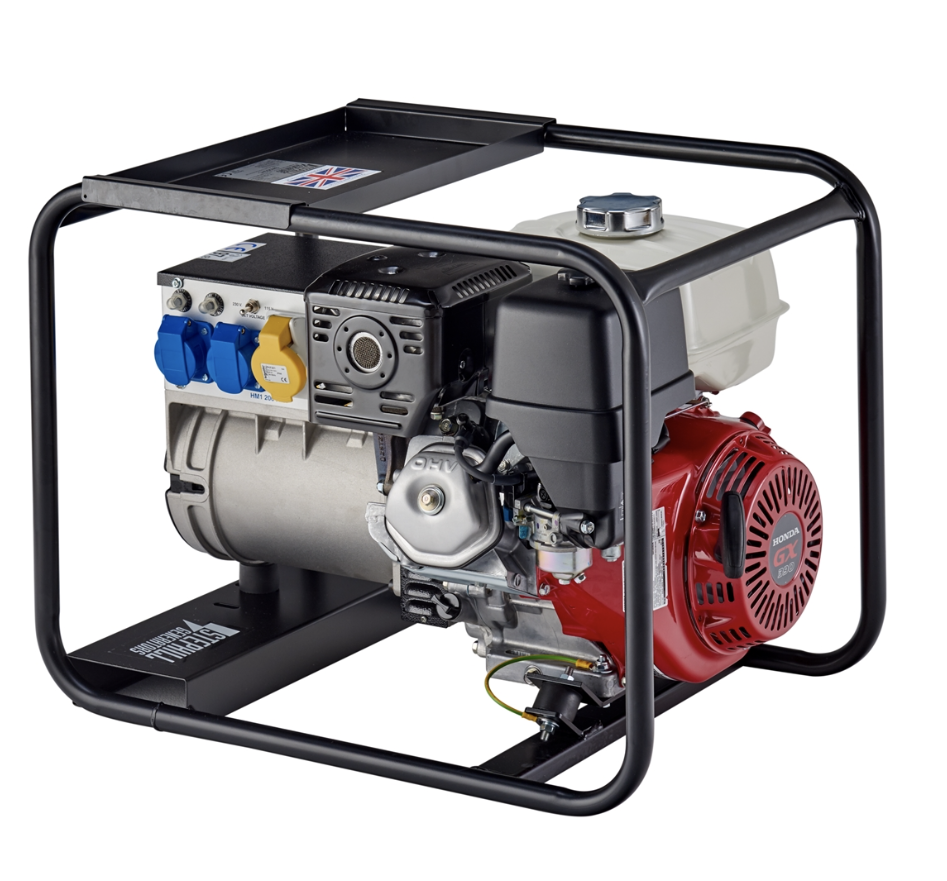

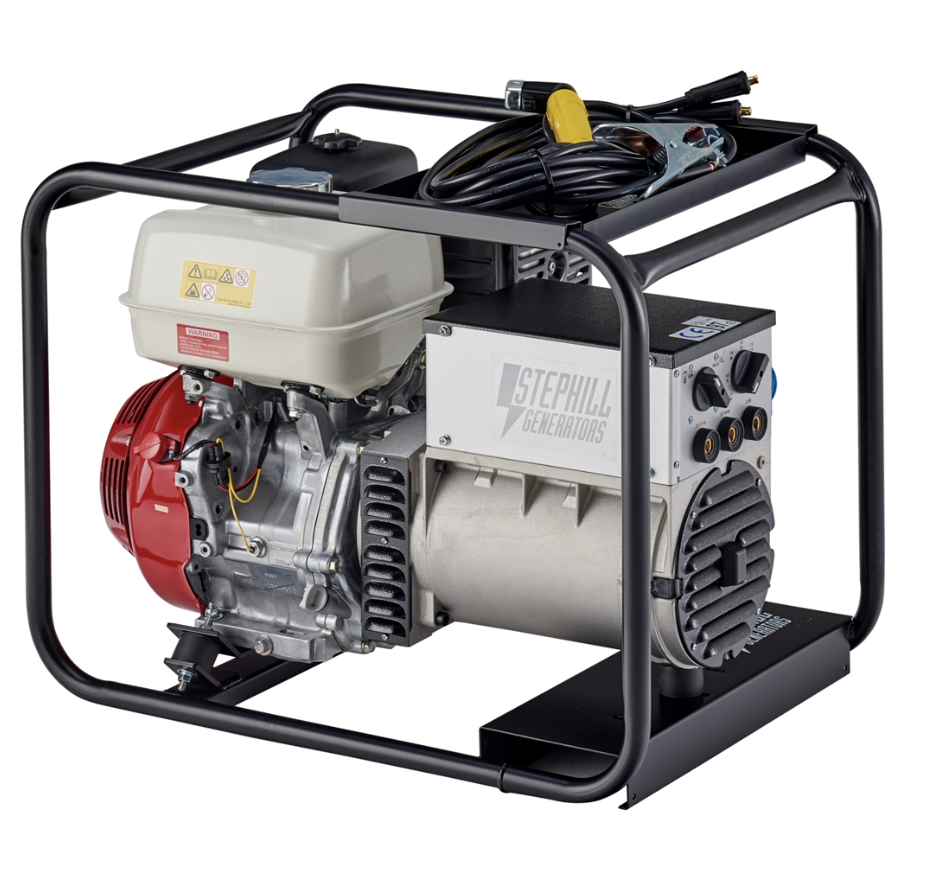

Stephill 200AMP AC welder petrol generator - Versatile and rugged portable AC welding generator with 1ph, 230/115v auxiliary outputs for power tools, lighting etc.
STANDARD FEATURES:
• Oil alert/low oil shutdown.
• 3 Year engine warranty (Limited).
• Full wrap-around frame.
• Brushless smooth waveform alternator.
• Convenient tray for rods & leads.
CONTROL BOX:
• 3 x DIN 25 welding sockets.
• Amp range switch.
• Voltage selector switch.
• 115V: 2 x 16A BS4343 sockets.
• 230V: 2 x 16A BS4343 sockets.
• Reset circuit breaker overload protection.
• Welder/Generator selector switch
DIMENSIONS (mm)
LENGTH - 690
WIDTH - 480
HEIGHT - 540
WEIGHT (KG) - 71
WELDING GENERATOR SPECIFICATION:
| Welding Output | 200 Amps AC |
| Welding Current | 55 - 200A |
| Strike Voltage | 39 - 58V |
| Welding Voltage | 21.5 - 28V |
| Duty Cycle | 35% - 200A / 60% - 170A |
| Rod Size (MAX) | 5mm |
| Generator Voltage | 230/115 |
| Phase | 1 |
| Frequency | 50Hz |
| Auxiliary Output |
240V @ 6.5kVA / 5.2kW 115V @ 3.2kVA / 2.5kW |
| Alternator | Zanardi / Meccalte AS200AC HM1 |
| Alternator type | Brushless - Smooth Wave Form |
| Fuel tank capacity | 6.1 litres |
| Autonomy 75% load | 2.2 hours |
| LWA | 97 |
| DBA @ 7M | 72 |
ENGINE SPECIFICATION:
| Engine | Honda GX390 |
| Emissions certified | EU Stage V |
| Cylinders | Single |
| Distribution | O.H.V. |
| Aspiration | Naturally aspirated |
| Cooling | Air |
| Displacement | 389cm3 |
| Rpm | 3000 |
| Starting System | Recoil |
| Fuel | Unleaded 86 octane or higher |
Weight
71
