KEMPER PROFIMASTER WELDING SMOKE FILTER EXTRACTION UNIT - 2 MTR ARM

SKU: 60650100

£2,292.00

2750.40 (Inc VAT)

RRP: £0.00

60 650 100

2750.40 (Inc VAT)

RRP: £0.00

60 650 100

2750.40 (Inc VAT)

RRP: £0.00

60 650 100

  • Product Description
  • Technical Data
  • Manufacturers Brochures

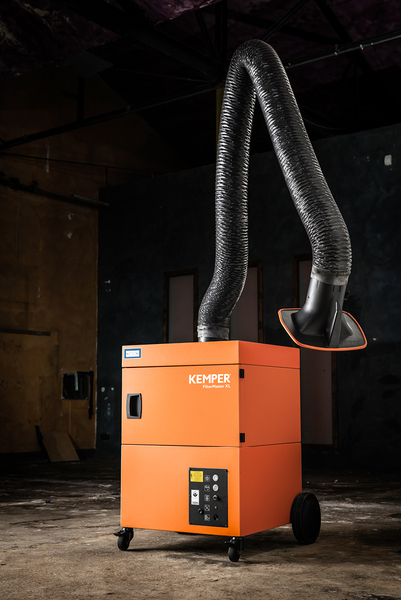

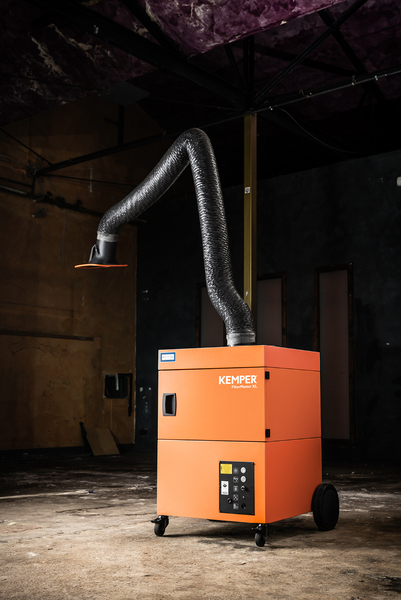

ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The rotating and swiveling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding.



BENEFITS:

- Safe operation by rotation field control

- Maintenance door allows easy filter change

- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design

- Increased safety due to filter monitoring



PROPERTIES:

- Exhaust arm up to 4 m

- Automatic Start-Stop (optional)

- Rotating exhaust hood



APPLICATIONS:

- Suitable for all materials, including high-alloy steel

- Low to medium levels of smoke and dust

- Occasional to frequent use

Filter

Filter stages - 2

Filter method - Storage Filter

Filter surface - 17 m²

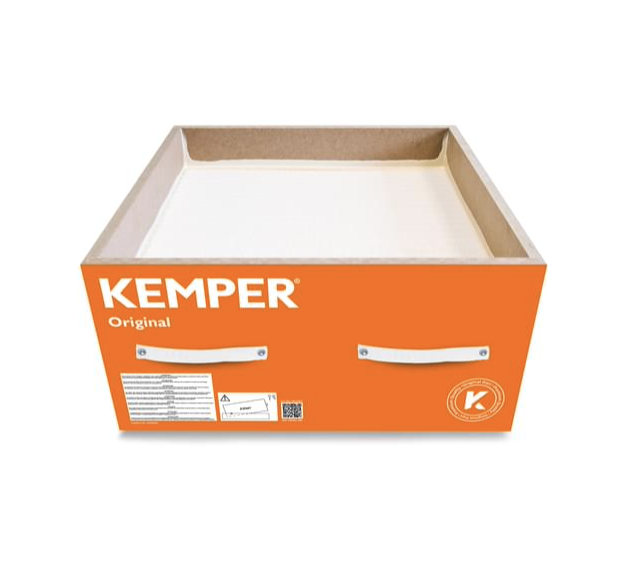

Type of filter - Filter cassette

Filter material - Non-woven fibre

Filter efficiency - > 99.5 %

Filter class - E12

Additional filters - Pre-filter



Basic data

Extraction capacity - 1100 m³/h

Dimensions (w x t x h) - 797 x 828 x 977 mm

Weight - 109 kg

Motor power - 1.1 kW

Power supply - 3 x 400 V / 50 Hz

Rated current - 2.3 A

Control voltage - 24 V, DC

Noise level - 72 dB(A)



Additional information

IFA-Certification - W3-Approved

Fan type - Radial fan

Quantity of extraction arms - 1

Exhaust arm type - flexible exhaust arm

Diameter extraction arm - 150 mm

Length of exhaust arm - 4 m

Weight

109
